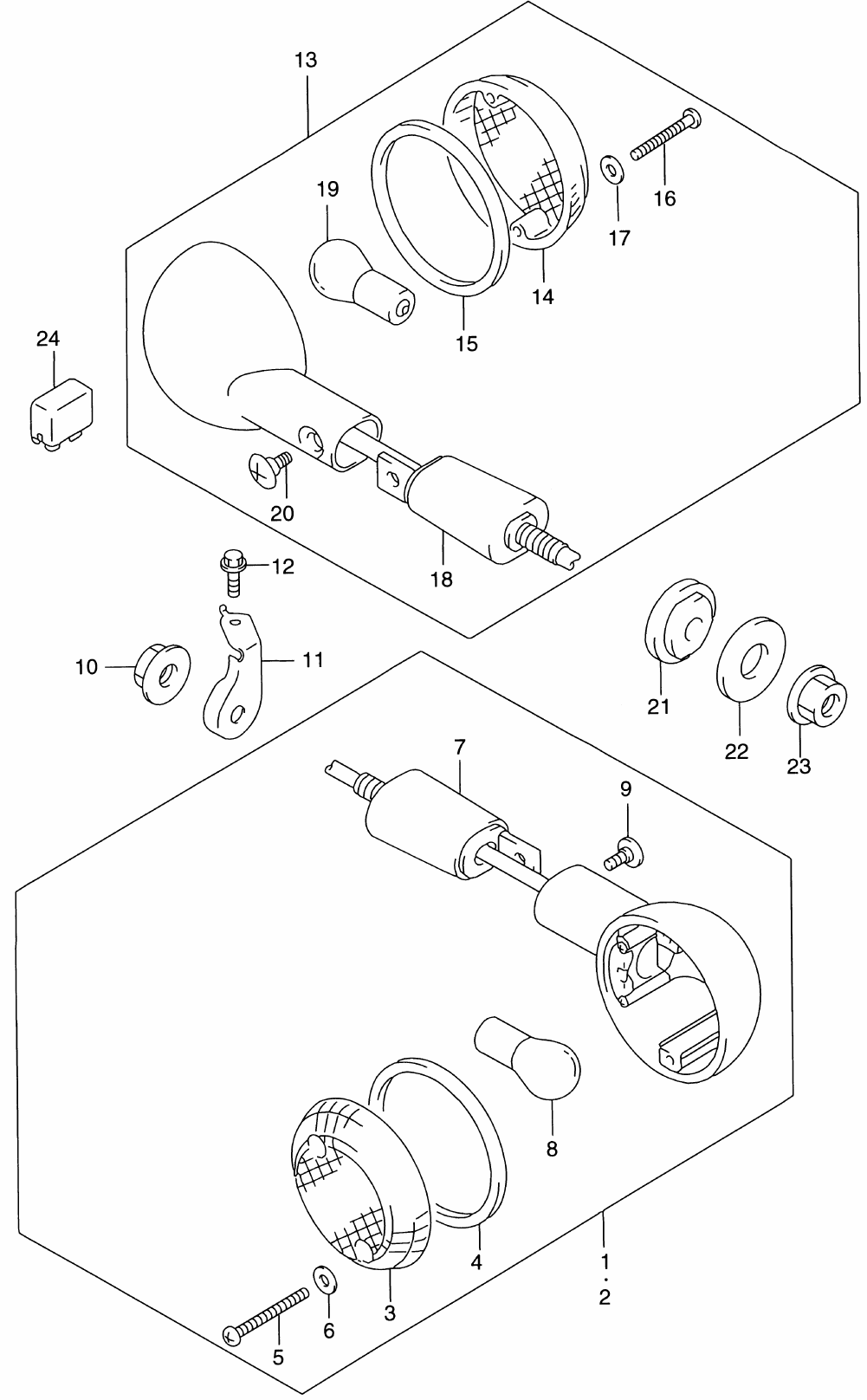

TURN SIGNAL ASSY. для Suzuki GZ-250 Y - 2000 года выпуска`
-
№АртикулНазвание
-
135601-12F30 LAMP ASSY. (FRONT) (RIGHT)LAMP ASSY. (FRONT) (RIGHT)
-
235602-12F30 LAMP ASSY. (FRONT) (LEFT)LAMP ASSY. (FRONT) (LEFT)
-
335612-38A30 ...LENS...LENS
-
435613-38A00 ...GASKET...GASKET
-
503211-04253 ...SCREW...SCREW
-
635627-43010 ...GASKET...GASKET
-
735619-45C10 ...STAY, TURN SIGNAL...STAY, TURN SIGNAL
-
809471-12128 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
935623-38A01 ...SCREW...SCREW
-
1008316-10103 NUTNUT
-
11-135670-12F00 BRACKET (FRONT) (RIGHT)BRACKET (FRONT) (RIGHT)
-
11-235680-12F00 BRACKET (FRONT) (LEFT)BRACKET (FRONT) (LEFT)
-
1201550-06123 BOLT, BRACKETBOLT, BRACKET
-
1335603-33D60 LAMP ASSY. TURN (REAR)LAMP ASSY. TURN (REAR)
-
1435652-38A21 ...LENS...LENS
-
1535613-38A00 ...GASKET...GASKET
-
1603211-04253 ...SCREW...SCREW
-
1735627-43010 ...GASKET...GASKET
-
1835659-45C10 ...STAY, TURN SIGNAL...STAY, TURN SIGNAL
-
1909471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
2035623-38A01 ...SCREW...SCREW
-
2135695-17C00 SPACERSPACER
-
2209160-10501 WASHER (10.5X30X2.3)WASHER (10.5X30X2.3)
-
2308316-10103 NUTNUT
-
2438610-03F00 RELAY ASSY. TURN SIGNALRELAY ASSY. TURN SIGNAL
