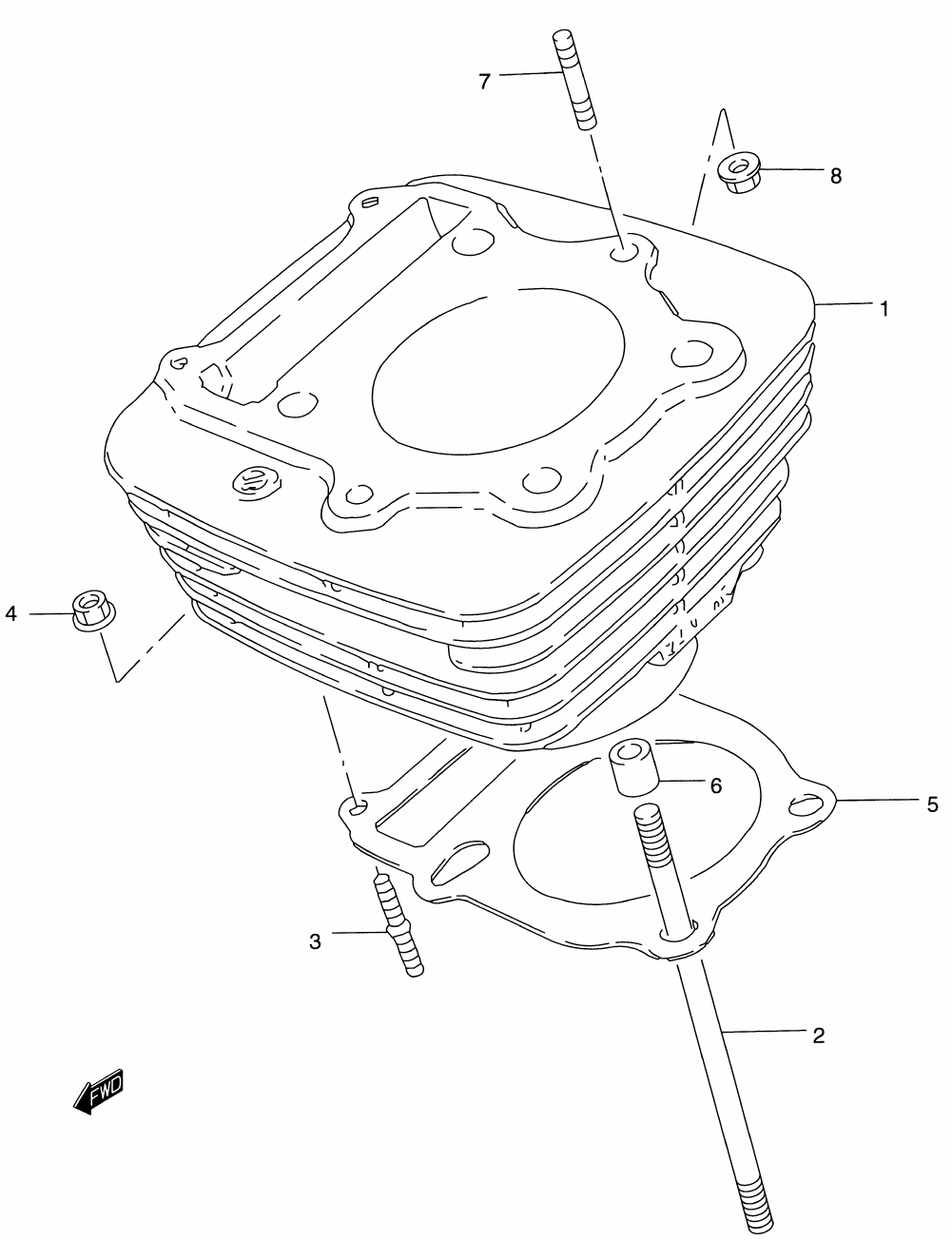

CYLINDER для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
111210-38204-0F0 CYLINDERCYLINDER
-
209108-10030 STUD BOLT (L:141)STUD BOLT (L:141)
-
301421-06208 STUD BOLTSTUD BOLT
-
408316-10067 NUTNUT
-
511241-38301 GASKET, CYLINDERGASKET, CYLINDER
-
604211-13189 PINPIN
-
701421-06307 STUD BOLTSTUD BOLT
-
808316-10067 NUTNUT
