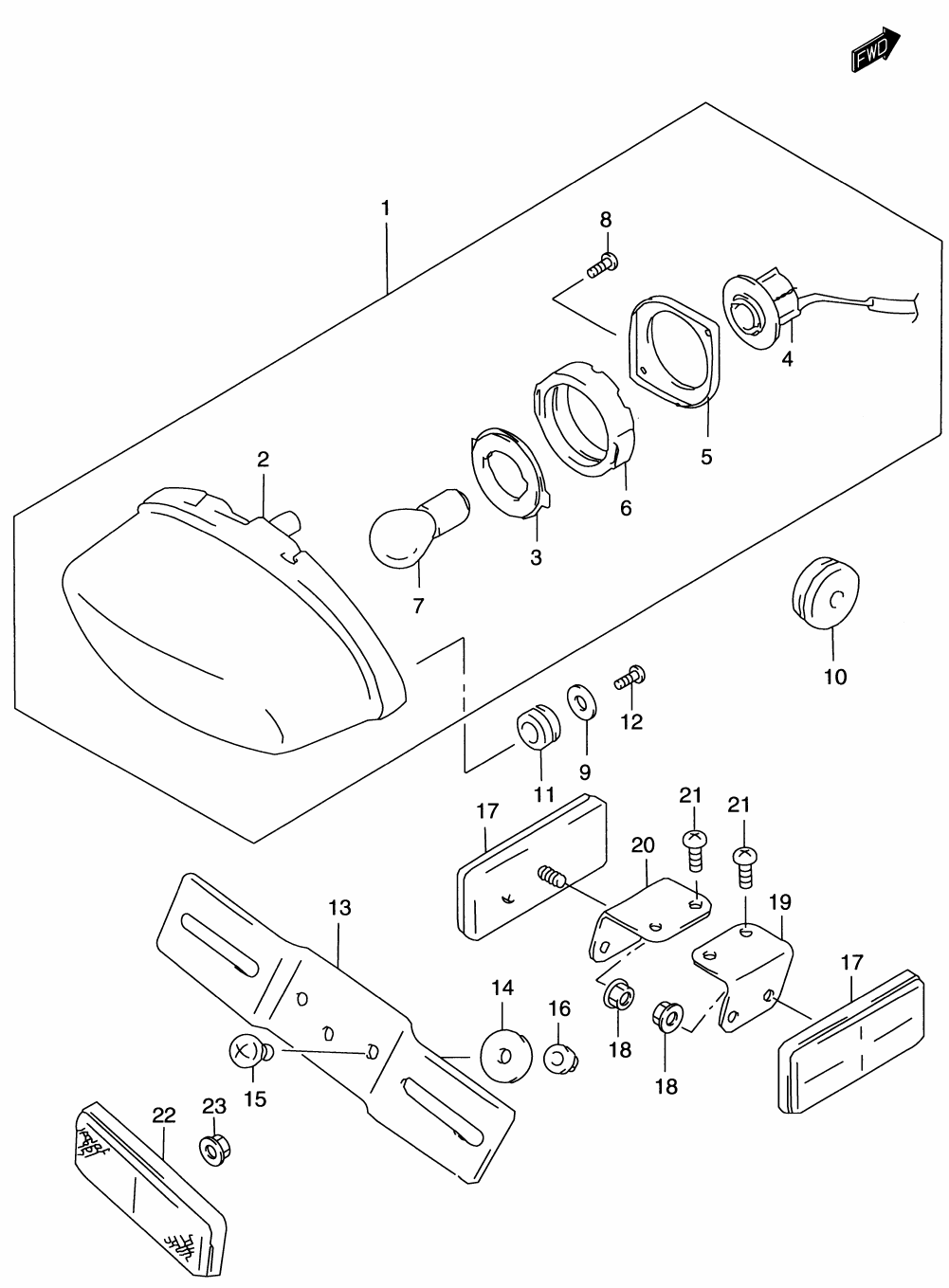

TAILLIGHT ASSY. для Suzuki GZ-250 Y - 2000 года выпуска

№

Артикул

Название
1

35710-12F30 LAMP ASSY. COMB (REAR)

LAMP ASSY. COMB (REAR)
2

35740-42E11 ...LAMP UNIT

...LAMP UNIT
3

35716-48B21 ...PLATE, NO.1

...PLATE, NO.1
4

35718-12F00 ...SOCKET AND CORD

...SOCKET AND CORD
5

35736-48B21 ...PLATE

...PLATE
6-2

35765-48B21 ...CUSHION

...CUSHION
7

09471-12083 ...BULB (12V,21/5W)

...BULB (12V,21/5W)
8

03211-04123 ...SCREW

...SCREW
9

09160-05501 WASHER, COMB (REAR) (5.5X20X1.2)

WASHER, COMB (REAR) (5.5X20X1.2)
10

09308-08007 GROMMET

GROMMET
11

09320-10015 CUSHION, COMB (REAR)

CUSHION, COMB (REAR)
12

03541-05123 SCREW, COMB (REAR)

SCREW, COMB (REAR)
13

35927-13F00 BRACKET, LICENSE PLATE

BRACKET, LICENSE PLATE
14

09160-06088 WASHER, LICENSE (6.5X20X1.6)

WASHER, LICENSE (6.5X20X1.6)
15

02142-06123 SCREW, LICENSE

SCREW, LICENSE
16

08316-10063 NUT, LICENSE

NUT, LICENSE
17

35970-07F00 REFLEX REFLECTOR ASSY. (REAR)

REFLEX REFLECTOR ASSY. (REAR)
18

08316-10053 NUT

NUT
19

35974-38A20 BRACKET (REAR) (RIGHT)

BRACKET (REAR) (RIGHT)
20

35975-38A20 BRACKET (REAR) (LEFT)

BRACKET (REAR) (LEFT)
21

02142-06123 SCREW

SCREW
22

35970-07F00 REFLECTOR ASSY. (REAR)

REFLECTOR ASSY. (REAR)
23

08316-10053 NUT

NUT
