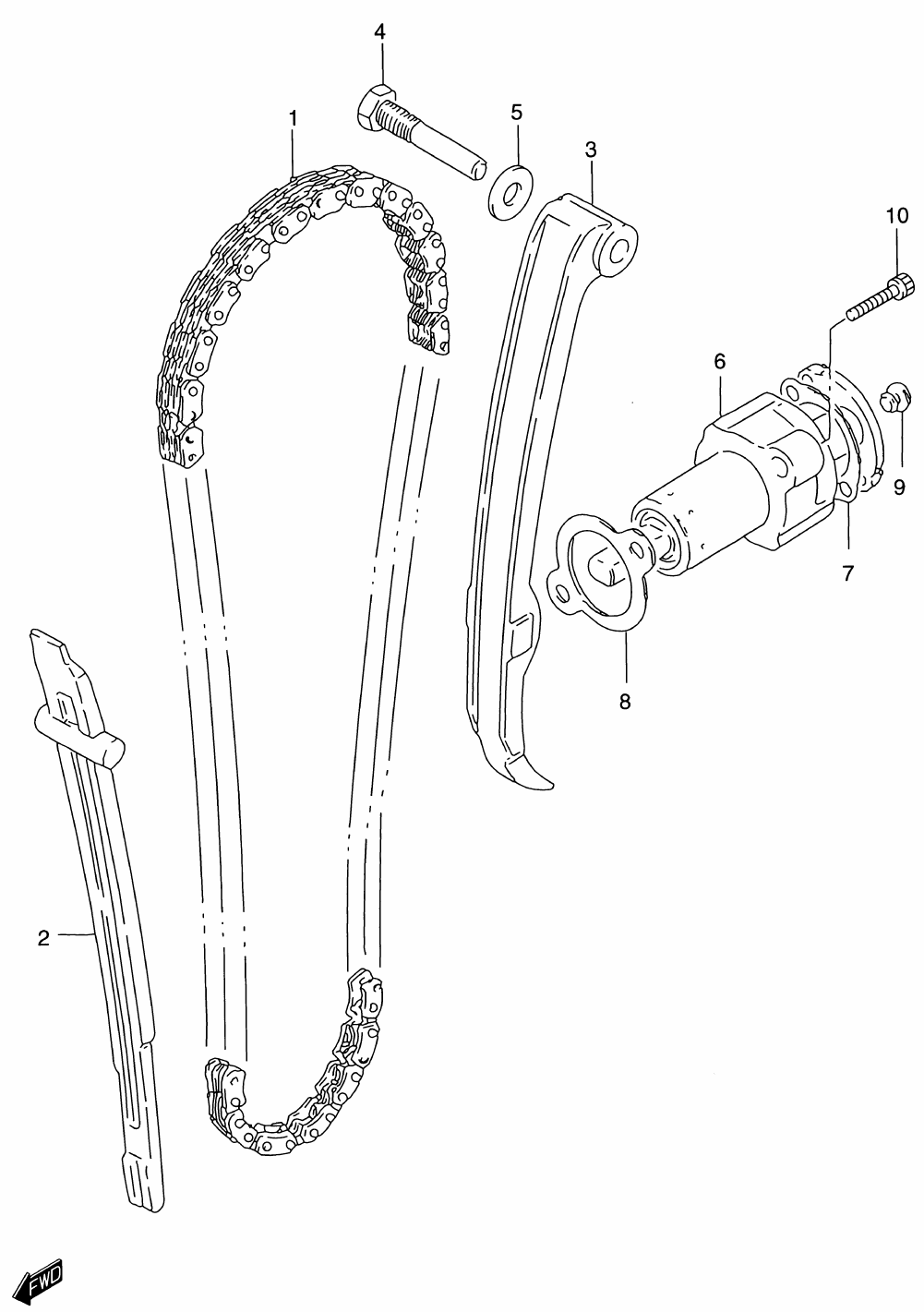

CAM CHAIN ASSY. W/ TENSIONER для Suzuki GZ-250 Y - 2000 года выпуска`
-
№АртикулНазвание
-
112760-13F00 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-38200 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-38200 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
412812-32400 BOLT, CAM CHAIN TENSIONERBOLT, CAM CHAIN TENSIONER
-
509168-08008 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
612830-38201 ADJUSTER ASSY. TENSIONERADJUSTER ASSY. TENSIONER
-
712838-38200-H17 ...GASKET, ADJUSTER CAP...GASKET, ADJUSTER CAP
-
812837-24A10 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
912839-38200 PLUG, ADJUSTERPLUG, ADJUSTER
-
1007130-06257 BOLTBOLT
