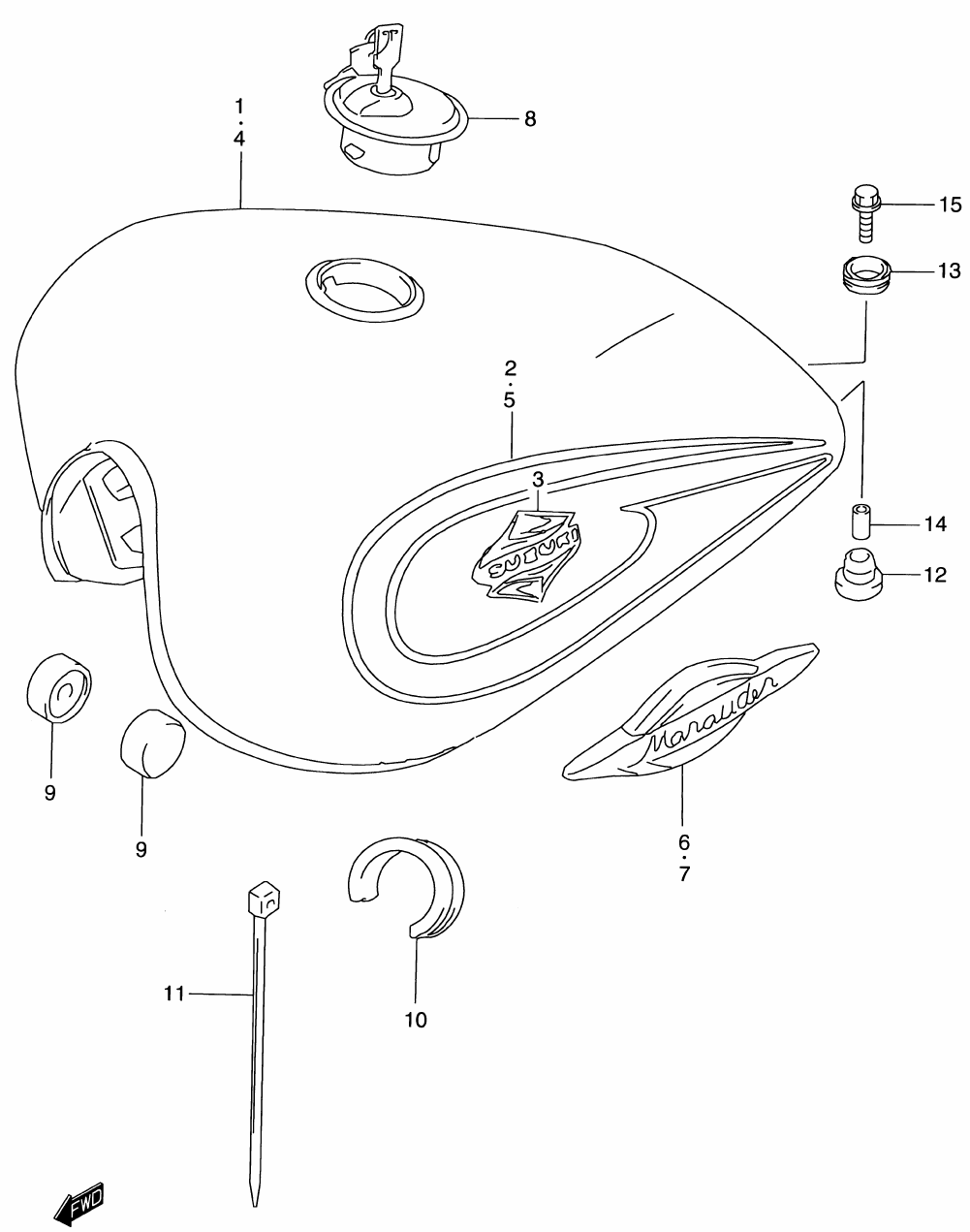

FUEL TANK для Suzuki GZ-250 Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1-1
    44100-12F70-Y98 TANK ASSY. FUEL (Y98 - GREEN) (EXCEPT CALIF.)
    TANK ASSY. FUEL (Y98 - GREEN) (EXCEPT CALIF.)
  • 1-2
    44100-12F60-Y98 TANK ASSY. FUEL (Y98 - GREEN) (CALIF. ONLY)
    TANK ASSY. FUEL (Y98 - GREEN) (CALIF. ONLY)
  • 2
    68110-12F20-N5Z ...TAPE SET, FUEL TANK (N5Z - GRAY/BLACK/GOLD/GREEN) (FOR Y98 - GREEN)
    ...TAPE SET, FUEL TANK (N5Z - GRAY/BLACK/GOLD/GREEN) (FOR Y98 - GREEN)
  • 3
    68111-38A21-M7D ...EMBLEM (M7D - GRAY/SILVER/GREEN) (FOR Y98 - GREEN)
    ...EMBLEM (M7D - GRAY/SILVER/GREEN) (FOR Y98 - GREEN)
  • 4
    44100-12F50-Y98 TANK ASSY.FUEL (GREEN) (CANADA)
    TANK ASSY.FUEL (GREEN) (CANADA)
  • 5
    68110-12F20-N5Z ...TAPE SET, FUEL TANK (N5Z - GRAY/BLACK/GOLD/GREEN) (FOR Y98 - GREEN)
    ...TAPE SET, FUEL TANK (N5Z - GRAY/BLACK/GOLD/GREEN) (FOR Y98 - GREEN)
  • 6
    68111-12F00 EMBLEM, FUEL TANK (RIGHT) (CANADA)
    EMBLEM, FUEL TANK (RIGHT) (CANADA)
  • 7
    68121-12F00 EMBLEM, FUEL TANK (LEFT) (CANADA)
    EMBLEM, FUEL TANK (LEFT) (CANADA)
  • 8-1
    44200-12870 CAP SET, FUEL TANK (EXCEPT CALIF.)
    CAP SET, FUEL TANK (EXCEPT CALIF.)
  • 8-2
    44200-38850 CAP SET, FUEL TANK (CALIF. ONLY)
    CAP SET, FUEL TANK (CALIF. ONLY)
  • 9
    09329-10007 CUSHION
    CUSHION
  • 10
    44541-03F00 CUSHION, FUEL TANK SIDE
    CUSHION, FUEL TANK SIDE
  • 11
    09407-25402 CLAMP (L:248)
    CLAMP (L:248)
  • 12
    09320-10020 CUSHION
    CUSHION
  • 13
    44512-42E00 CUSHION, FUEL TANK (REAR)
    CUSHION, FUEL TANK (REAR)
  • 14
    09180-06271 SPACER (6.5X9X18)
    SPACER (6.5X9X18)
  • 15
    01550-06303 BOLT
    BOLT
