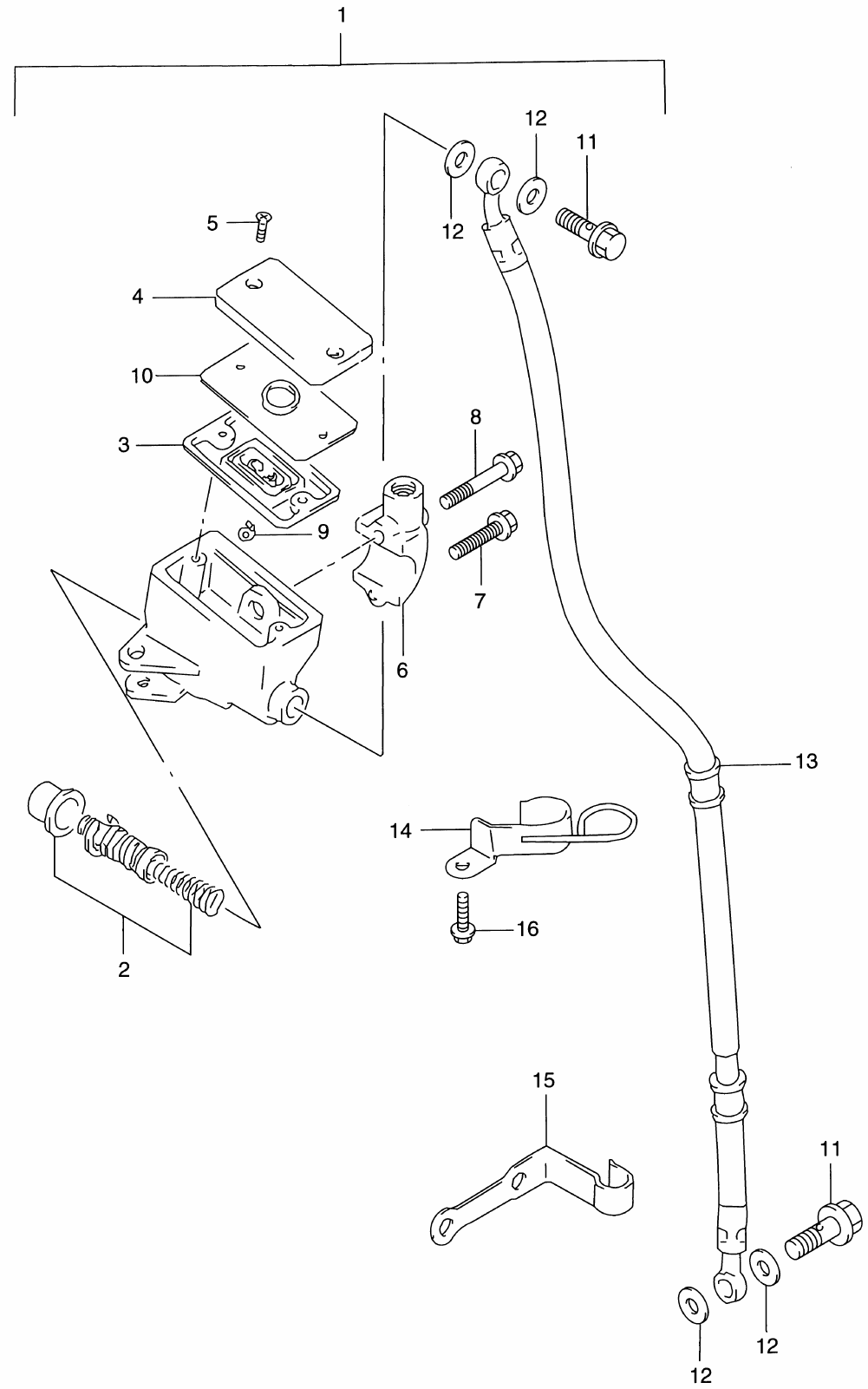

BRAKE - FRONT MASTER CYLINDER для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
159600-45C10 CYLINDER ASSY. FRONT MASTERCYLINDER ASSY. FRONT MASTER
-
259600-04810 ...PISTON/CUP SET...PISTON/CUP SET
-
359667-49460 ...DIAPHRAGM...DIAPHRAGM
-
459669-41C00 ...CAP...CAP
-
569689-49300 ...SCREW...SCREW
-
659671-44300 ...HOLDER...HOLDER
-
759675-19C00 ...BOLT (6X25)...BOLT (6X25)
-
859675-19C10 ...BOLT (6X38)...BOLT (6X38)
-
959664-48B00 ...PROTECTOR...PROTECTOR
-
1059668-41C00 ...PLATE...PLATE
-
1109360-10041 BOLT (10X1.00X22)BOLT (10X1.00X22)
-
1209161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
1359480-12F00 HOSE, BRAKE (FRONT)HOSE, BRAKE (FRONT)
-
1459260-12F00 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
1559268-12F00 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
1601550-06123 BOLTBOLT
