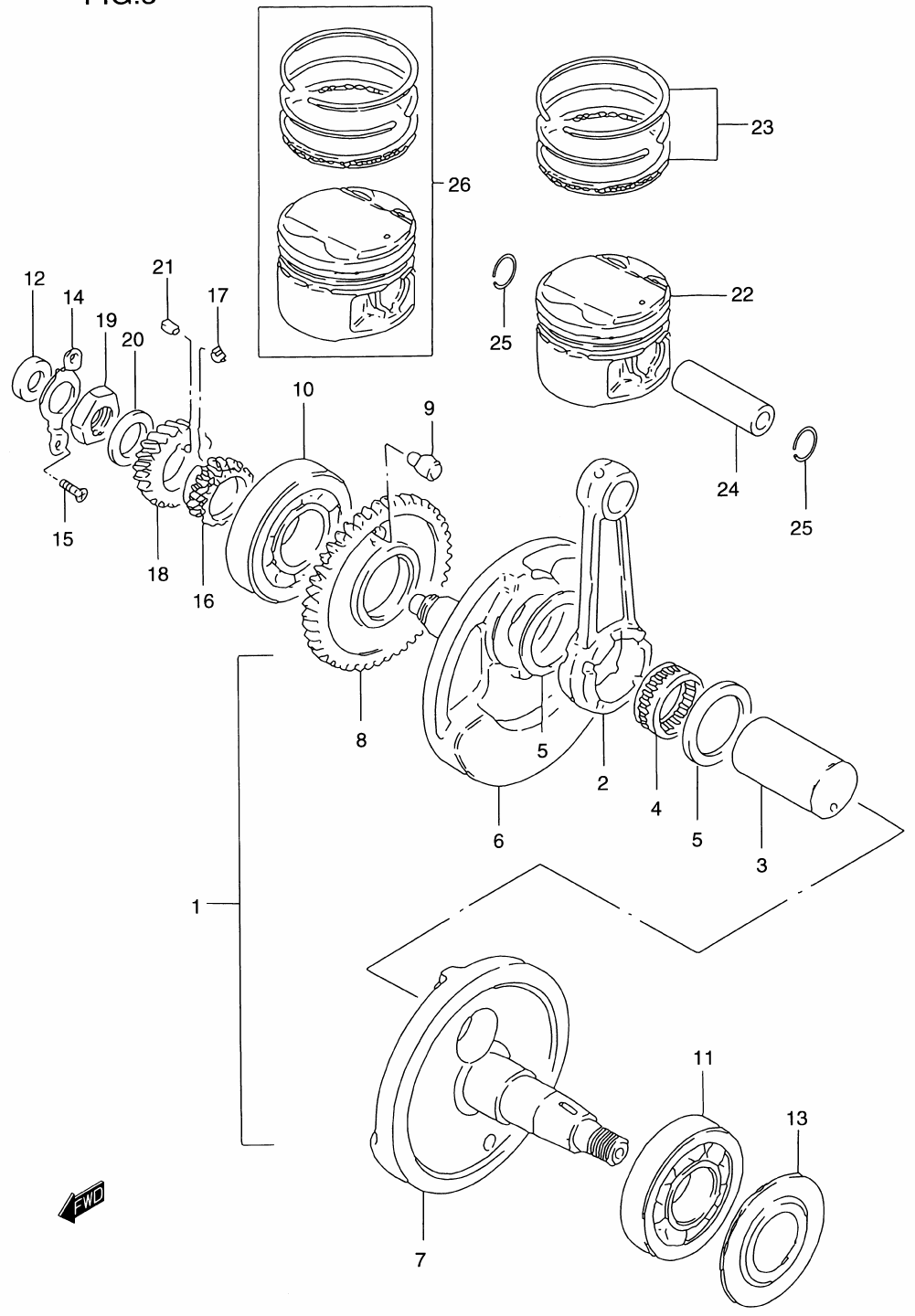

CRANKSHAFT W/ PISTON для Suzuki GZ-250 Y - 2000 года выпуска

№

Артикул

Название
1

12200-38310 CRANKSHAFT ASSY.

CRANKSHAFT ASSY.
2

12161-38201 ...ROD, CONNECTING

...ROD, CONNECTING
3

12211-38211 ...PIN, CRANK

...PIN, CRANK
4

09263-31004 ...BEARING (31X39X21)

...BEARING (31X39X21)
5

09160-31002 ...WASHER (31X48.5X1)

...WASHER (31X48.5X1)
6

12221-38200 ...CRANKSHAFT (RIGHT)

...CRANKSHAFT (RIGHT)
7

12261-38300 ...CRANKSHAFT (LEFT)

...CRANKSHAFT (LEFT)
8

12661-38202 ...GEAR, CRANK BALANCER DRIVE

...GEAR, CRANK BALANCER DRIVE
9

09209-12006 ...PIN

...PIN
10

09262-30077 BEARING (30X72X19)

BEARING (30X72X19)
11

09262-35028 BEARING (35X80X21)

BEARING (35X80X21)
12

09282-14001 OIL SEAL (14X26X6)

OIL SEAL (14X26X6)
13

12521-38300 WASHER, CRANKSHAFT OIL SEALING

WASHER, CRANKSHAFT OIL SEALING
14

12548-38200 RETAINER, CSHAFT OIL SEAL (RIGHT)

RETAINER, CSHAFT OIL SEAL (RIGHT)
15

02122-05103 SCREW

SCREW
16

12731-38200 SPROCKET, CAM CHAIN DRIVE (NT:21)

SPROCKET, CAM CHAIN DRIVE (NT:21)
17

12749-32400 KEY, SPROCKET

KEY, SPROCKET
18

21111-38200 GEAR, PRIMARY DRIVE (NT:21)

GEAR, PRIMARY DRIVE (NT:21)
19

09140-20008 NUT

NUT
20

09164-20003 WASHER

WASHER
21

09421-07002 KEY

KEY
22

12111-38201-0F0 PISTON

PISTON
23

12140-49270 RING SET, PISTON

RING SET, PISTON
24

12151-15501 PIN, PISTON

PIN, PISTON
25

09381-18002 SNAP RING

SNAP RING
26-1

12100-38200-050 PISTON SET (OS:0.5) (OPT)

PISTON SET (OS:0.5) (OPT)
26-2

12100-38200-100 PISTON SET (OS:1.0) (OPT)

PISTON SET (OS:1.0) (OPT)
