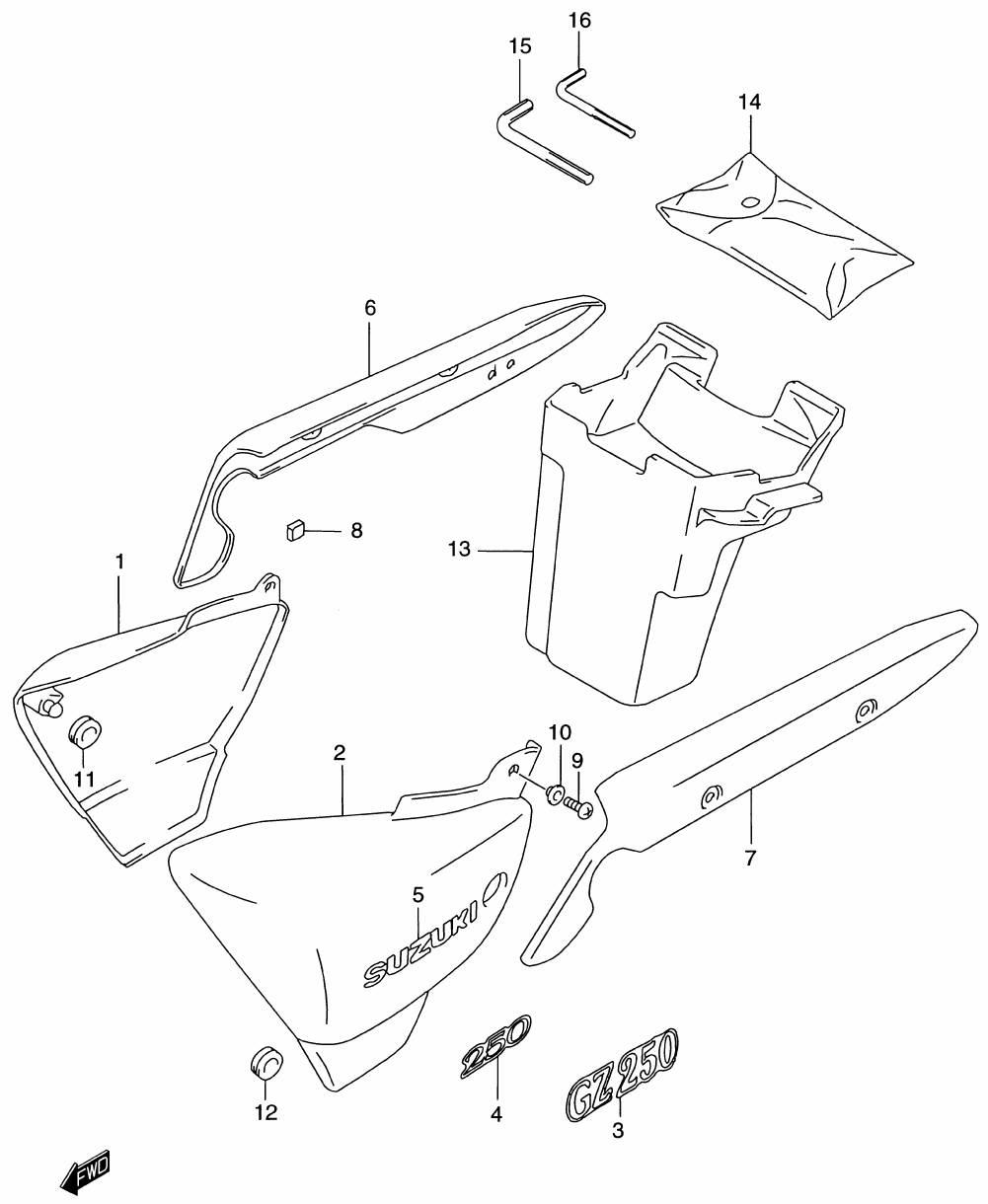

SIDE COVER для Suzuki GZ-250 Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    47111-12F00-Y98 COVER, FRAME (RIGHT) (Y98 - GREEN)
    COVER, FRAME (RIGHT) (Y98 - GREEN)
  • 2
    47211-12F00-Y98 COVER, FRAME (LEFT) (Y98 - GREEN)
    COVER, FRAME (LEFT) (Y98 - GREEN)
  • 3
    68131-12F20-M7F EMBLEM, FRAME COVER (M7F - BLACK/SILVER/GREEN) (FOR Y98 - GREEN)
    EMBLEM, FRAME COVER (M7F - BLACK/SILVER/GREEN) (FOR Y98 - GREEN)
  • 4
    68131-12F30-K1B EMBLEM, FRAME COVER (KB1 - RED/SILVER) (FOR Y98 - GREEN) (CANADA)
    EMBLEM, FRAME COVER (KB1 - RED/SILVER) (FOR Y98 - GREEN) (CANADA)
  • 5
    68131-12F00 EMBLEM, SUZUKI (CANADA)
    EMBLEM, SUZUKI (CANADA)
  • 6
    47121-12F00 COVER, FRAME (REAR) (RIGHT)
    COVER, FRAME (REAR) (RIGHT)
  • 7
    47221-12F00 COVER, FRAME (REAR) (LEFT)
    COVER, FRAME (REAR) (LEFT)
  • 8
    53123-33E00 CUSHION
    CUSHION
  • 9
    02142-06123 SCREW
    SCREW
  • 10
    09169-06071 WASHER
    WASHER
  • 11
    09320-08018 CUSHION
    CUSHION
  • 12
    09320-08013 CUSHION (LEFT)
    CUSHION (LEFT)
  • 13
    92211-12F00 BODY, RUGGAGE BOX
    BODY, RUGGAGE BOX
  • 14
    09800-21022 TOOL ASSY.
    TOOL ASSY.
  • 15
    09816-00050 SPANNER 6,HEXAGON
    SPANNER 6,HEXAGON
  • 16
    09816-00103 SPANNER 4,HEXAGON
    SPANNER 4,HEXAGON
