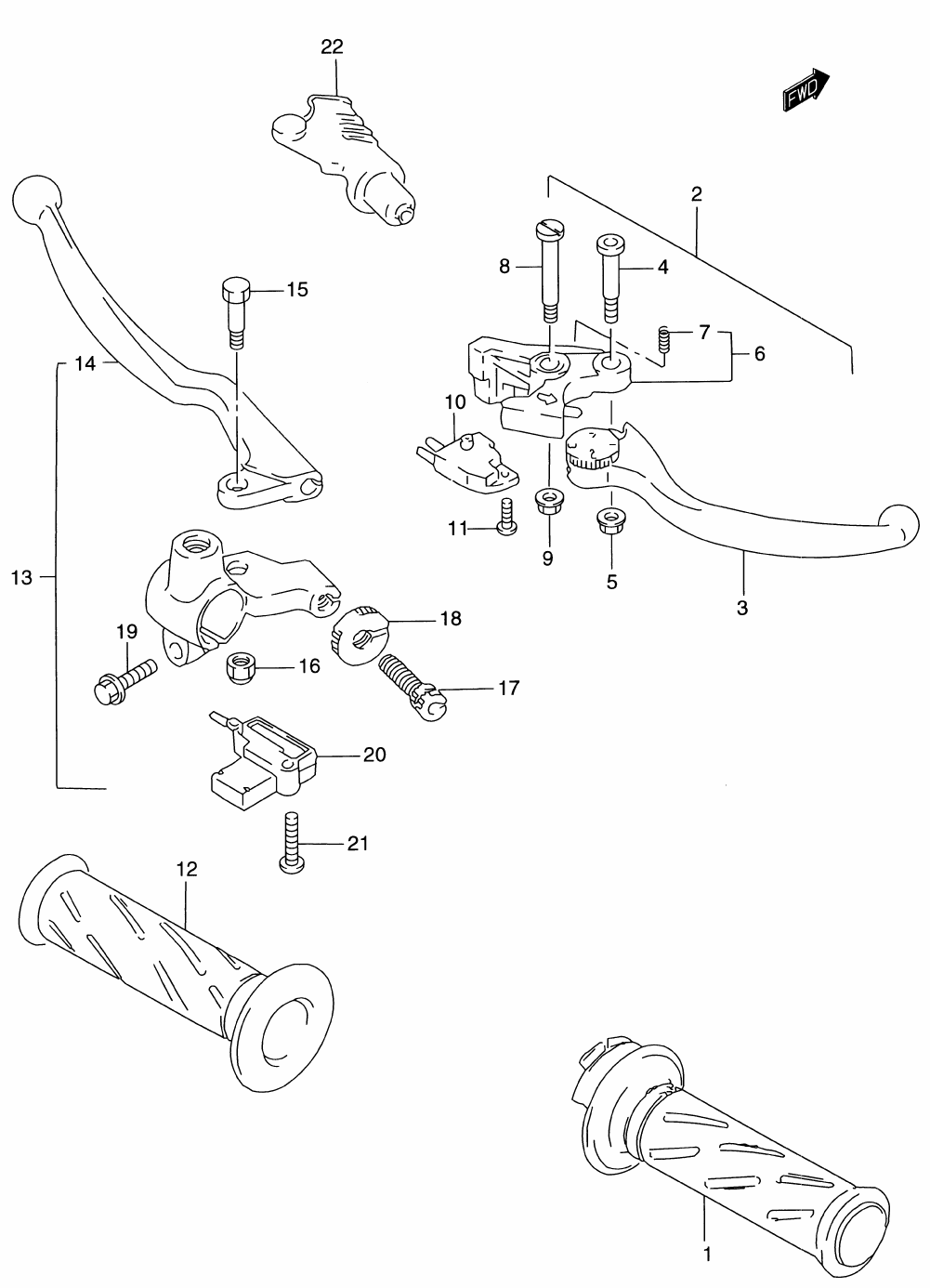

HANDLEBAR - LEVERS W/ GRIPS для Suzuki GZ-250 Y - 2000 года выпуска

№

Артикул

Название
1

57110-46E01 GRIP, THROTTLE

GRIP, THROTTLE
2

57300-32C10 LEVER ASSY. BRAKE

LEVER ASSY. BRAKE
3

57420-32C00 ...LEVER, ADJUST

...LEVER, ADJUST
4

57437-32C01 ...BOLT, LEVER

...BOLT, LEVER
5

08319-31063 ...NUT

...NUT
6

57430-32C10 ...KNOCKER

...KNOCKER
7

57438-32C00 ......SPRING

......SPRING
8

57431-17C00 ...BOLT, KNOCKER

...BOLT, KNOCKER
9

08316-10063 ...NUT

...NUT
10

57460-17C00 SWITCH ASSY. STOP

SWITCH ASSY. STOP
11

57465-17C00 ...SCREW

...SCREW
12

57211-22D01 GRIP (LEFT)

GRIP (LEFT)
13

57500-25D00 LEVER ASSY. CLUTCH

LEVER ASSY. CLUTCH
14

57621-33E00 ...LEVER, CLUTCH

...LEVER, CLUTCH
15

57431-45C00 ...BOLT, LEVER SET

...BOLT, LEVER SET
16

08319-21063 ...NUT

...NUT
17

57441-45C00 ...ADJUSTER, WIRE

...ADJUSTER, WIRE
18

57442-45C00 ...NUT, LOCK

...NUT, LOCK
19

01547-06203 ...BOLT

...BOLT
20

57560-05A00 ...SWITCH, CLUTCH

...SWITCH, CLUTCH
21

02122-03208 ...SCREW

...SCREW
22

57661-33E00 COVER, CLUTCH LEVER

COVER, CLUTCH LEVER
