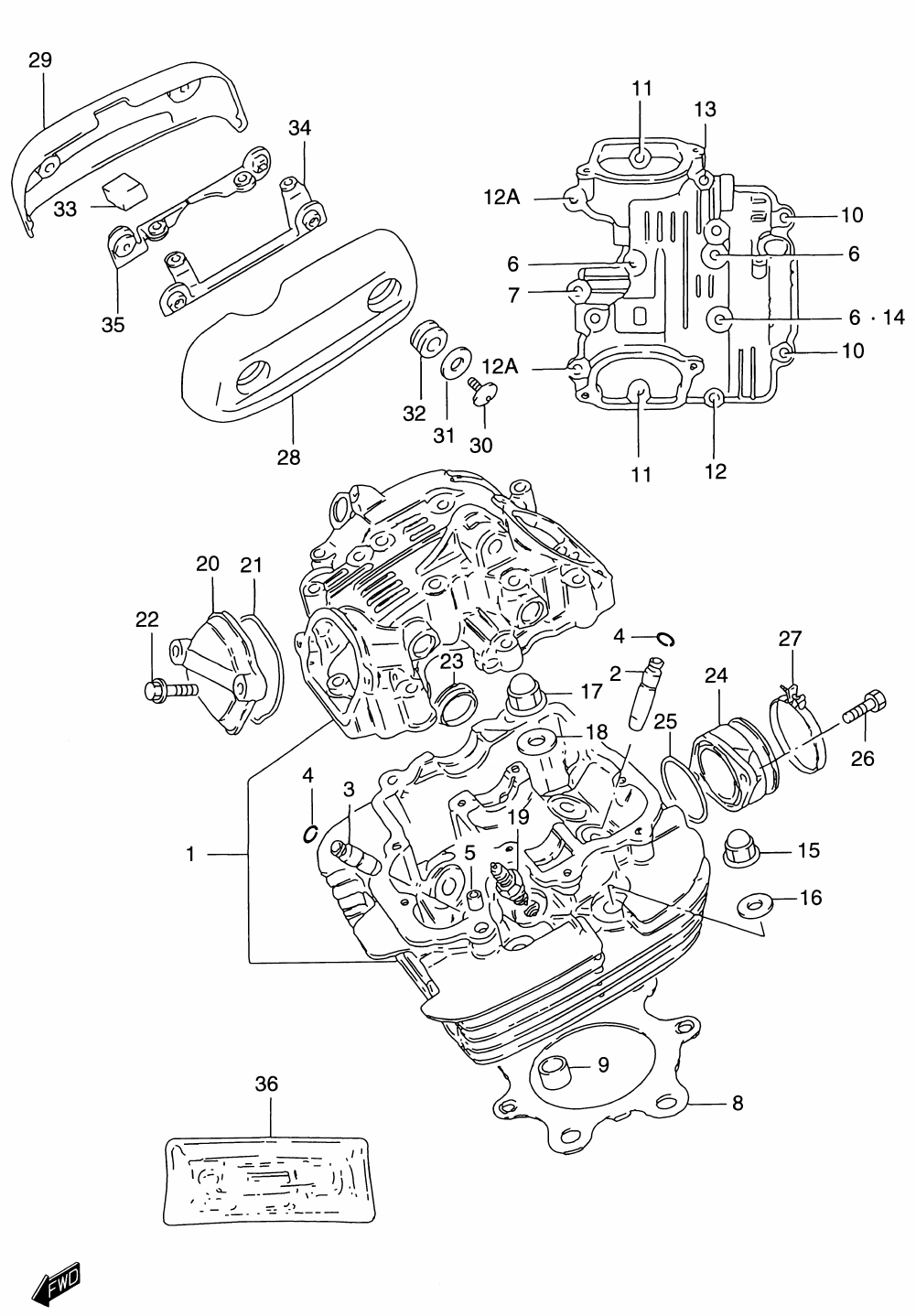

CYLINDER HEAD для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
111100-25D01 HEAD ASSY. CYLINDERHEAD ASSY. CYLINDER
-
211115-38270 ...GUIDE, VALVE...GUIDE, VALVE
-
311115-05270 ...GUIDE, VALVE...GUIDE, VALVE
-
409381-10004 ...SNAP RING...SNAP RING
-
509206-08001 ...PIN (6.2X8X11)...PIN (6.2X8X11)
-
6-101550-06607 ...BOLT (CHROME)...BOLT (CHROME)
-
6-201550-06603 ...BOLT (GREEN)...BOLT (GREEN)
-
7-101550-06307 ...BOLT (CHROME)...BOLT (CHROME)
-
7-201550-06303 ...BOLT (GREEN)...BOLT (GREEN)
-
811141-38201 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
904211-13189 PINPIN
-
1009103-06148 BOLT (6X120)BOLT (6X120)
-
11-101550-06307 BOLT (CHROME)BOLT (CHROME)
-
11-201550-06303 BOLT (GREEN)BOLT (GREEN)
-
12-101550-06457 BOLT (CHROME)BOLT (CHROME)
-
12-201550-06453 BOLT (GREEN)BOLT (GREEN)
-
12A-101550-06507 BOLT (CHROME)BOLT (CHROME)
-
12A-201550-06503 BOLT (GREEN)BOLT (GREEN)
-
13-101550-06607 BOLT (CHROME)BOLT (CHROME)
-
13-201550-06603 BOLT (GREEN)BOLT (GREEN)
-
1409168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1509159-10026 NUTNUT
-
1609160-10060 WASHERWASHER
-
1709159-10069 NUTNUT
-
1809168-10017 GASKET (10.5X22X2)GASKET (10.5X22X2)
-
19-109482-00399 SPARK PLUG (NGK,DR8EA)SPARK PLUG (NGK,DR8EA)
-
19-209482-00223 SPARK PLUG (DENSO,X24ESR-U)SPARK PLUG (DENSO,X24ESR-U)
-
2011175-38202 CAP, INSPECTIONCAP, INSPECTION
-
2109280-55003 O-RINGO-RING
-
22-101550-06257 BOLT (CHROME)BOLT (CHROME)
-
22-201550-06253 BOLT (GREEN)BOLT (GREEN)
-
2309241-30004 PLUGPLUG
-
2413110-13F00 PIPE, INTAKEPIPE, INTAKE
-
2509280-40010 O-RING (D:2.4,ID:39.7)O-RING (D:2.4,ID:39.7)
-
2602122-06163 SCREWSCREW
-
2709402-48208 CLAMPCLAMP
-
2811171-13F00 CAP, CYLINDER HEAD COVER (LEFT)CAP, CYLINDER HEAD COVER (LEFT)
-
2911172-13F00 CAP, CYLINDER HEAD COVER (RIGHT)CAP, CYLINDER HEAD COVER (RIGHT)
-
3011178-12F10 BOLT, HEAD COVER CAPBOLT, HEAD COVER CAP
-
3109160-06134 WASHER (6.5X24X1.6)WASHER (6.5X24X1.6)
-
3209320-13015 CUSHIONCUSHION
-
3311178-13F00 DAMPER, HEAD CAP (RIGHT)DAMPER, HEAD CAP (RIGHT)
-
3411179-13F00 BRACKET, HEAD CAP (LEFT)BRACKET, HEAD CAP (LEFT)
-
3511179-13F10 BRACKET, HEAD CAP (RIGHT)BRACKET, HEAD CAP (RIGHT)
-
3611401-13821 GASKET SETGASKET SET
