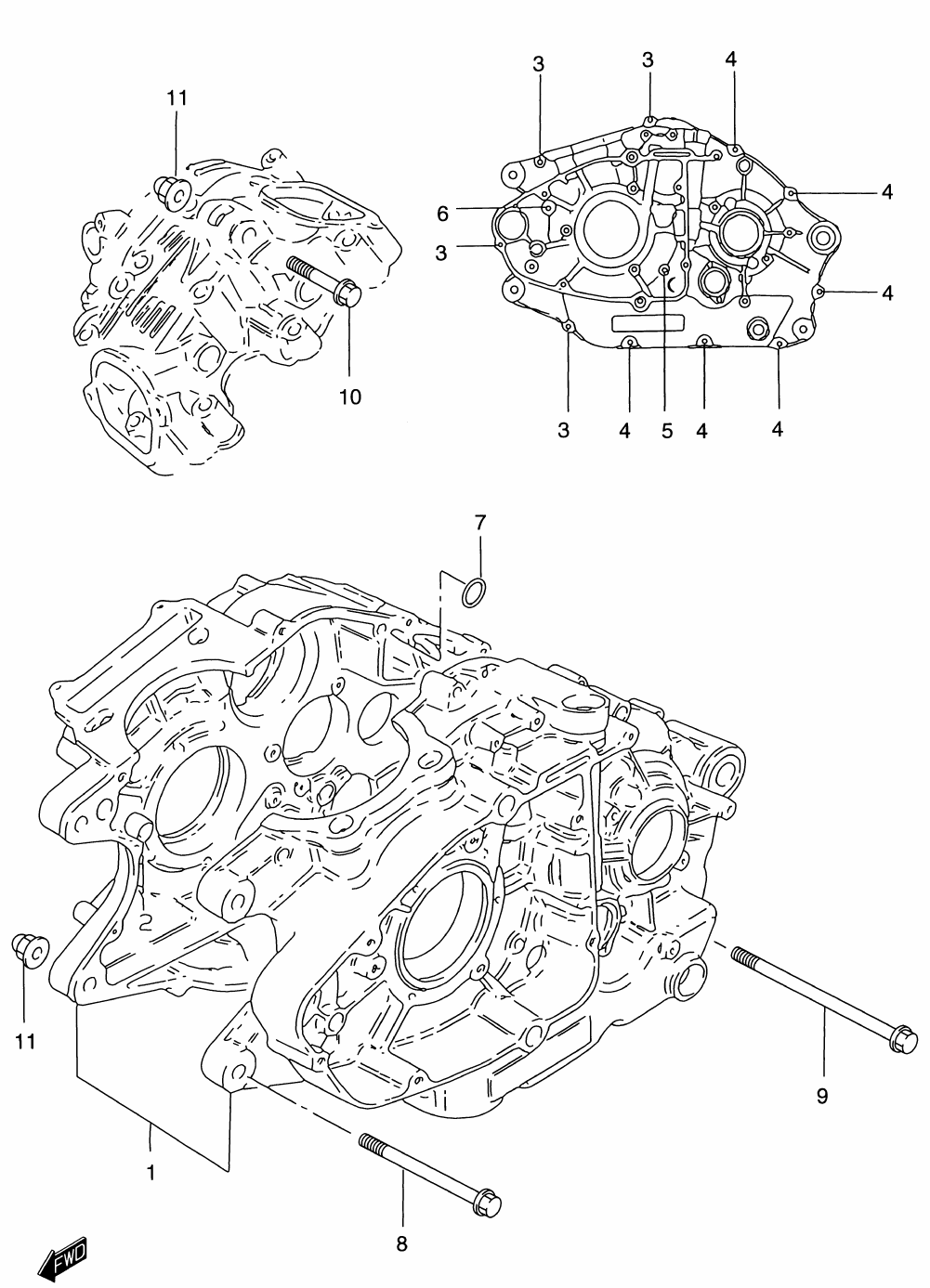

CRANKCASE для Suzuki GZ-250 Y - 2000 года выпуска`
-
№АртикулНазвание
-
1-211300-38864 CRANKCASE SETCRANKCASE SET
-
204211-13189 ...PIN...PIN
-
301547-06357 ...BOLT...BOLT
-
401547-06457 ...BOLT...BOLT
-
501547-06553 ...BOLT...BOLT
-
601547-06603 ...BOLT...BOLT
-
709280-10016 ...O-RING (D:1.9,ID:9.8)...O-RING (D:1.9,ID:9.8)
-
809103-08037 BOLT (8X67)BOLT (8X67)
-
909103-08070 BOLT (8X100)BOLT (8X100)
-
1009103-08081 BOLT (8X50)BOLT (8X50)
-
1108319-31087 NUTNUT
