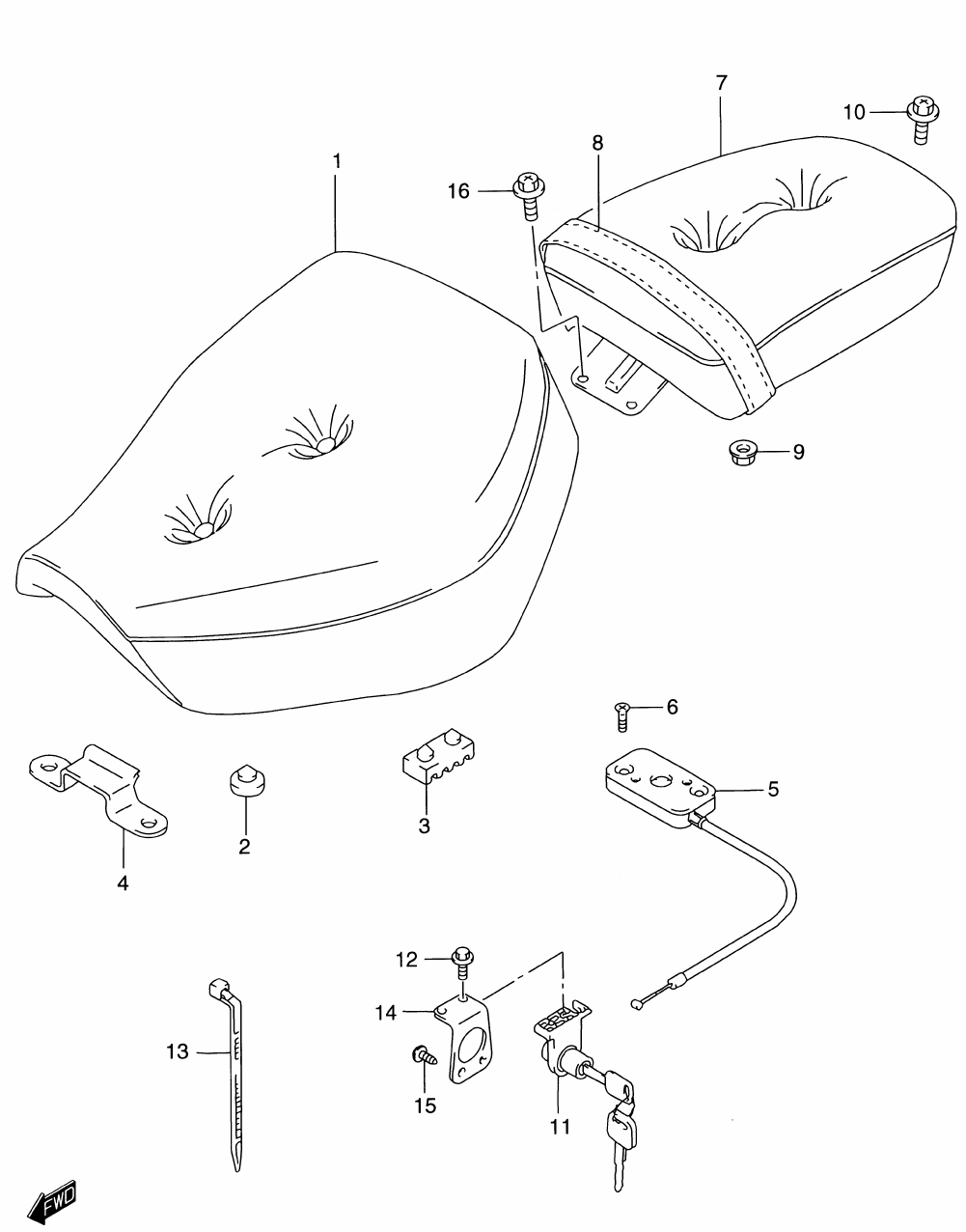

SEAT для Suzuki GZ-250 Y - 2000 года выпуска

№

Артикул

Название
1

45100-12F00-K9C SEAT ASSY. (K9C - BLACK)

SEAT ASSY. (K9C - BLACK)
2

45148-36C00 ...CUSHION

...CUSHION
3

45149-31300 ...CUSHION

...CUSHION
4

45119-12F00 PLATE, SEAT HOOK (FRONT)

PLATE, SEAT HOOK (FRONT)
5

45220-12F00 BRACKET, SEAT (FRONT)

BRACKET, SEAT (FRONT)
6

02122-06253 SCREW

SCREW
7

45300-12F00-K9C SEAT ASSY. PILLION (K9C - BLACK)

SEAT ASSY. PILLION (K9C - BLACK)
8

45180-12F00-T65 ...BAND, SEAT (T65 - BLACK)

...BAND, SEAT (T65 - BLACK)
9

08316-10063 ...NUT

...NUT
10

09106-08140 BOLT (REAR) (8X16)

BOLT (REAR) (8X16)
11

95700-31840 LOCK ASSY. SEAT

LOCK ASSY. SEAT
12

01547-05103 BOLT

BOLT
13

09407-22403 CLAMP

CLAMP
14

45289-03F00 BRACKET, SEAT LOCK

BRACKET, SEAT LOCK
15

03141-14123 SCREW

SCREW
16

09106-06061 BOLT (FRONT) (6X12)

BOLT (FRONT) (6X12)
