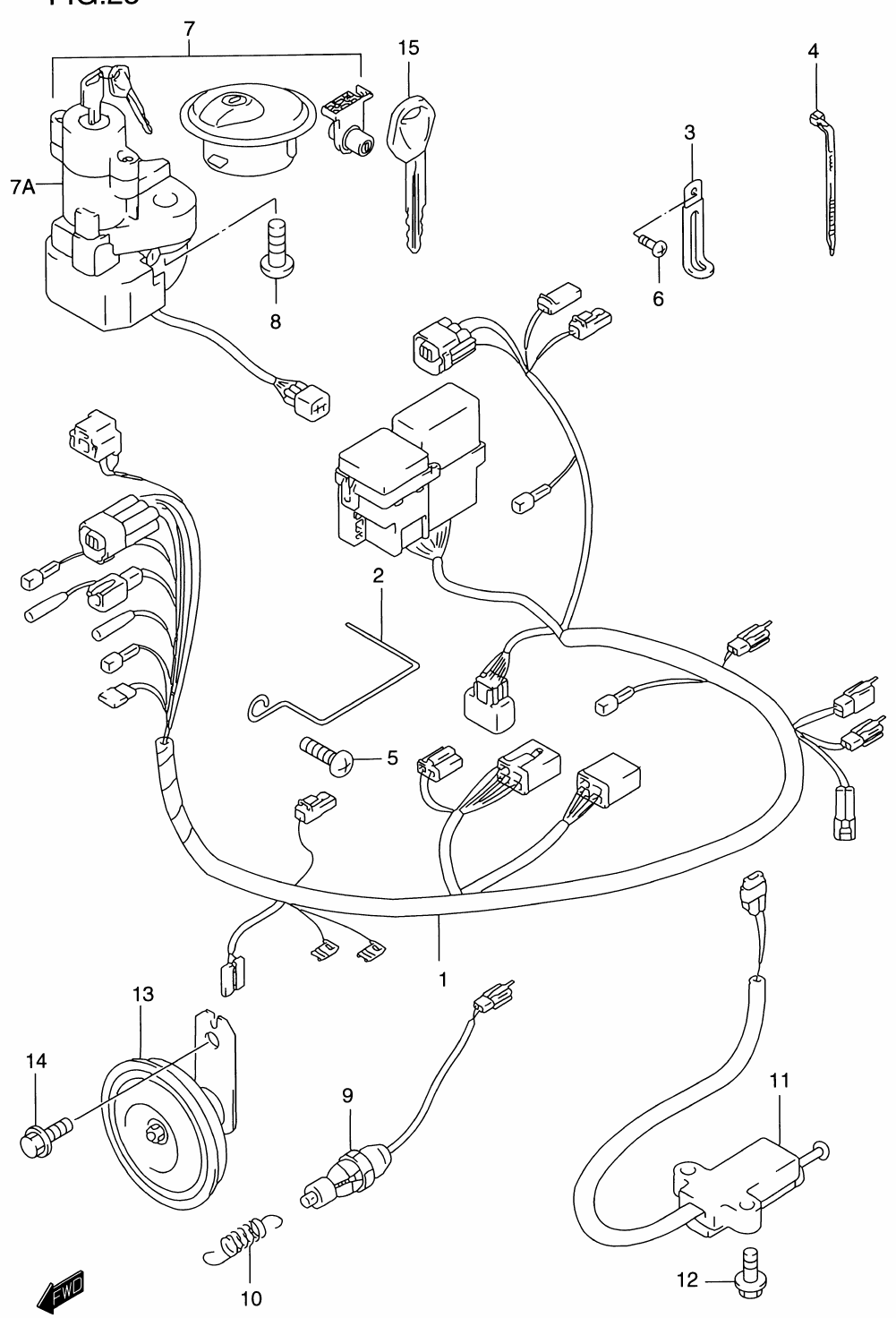

ELECTRICAL - WIRING HARNESS для Suzuki GZ-250 Y - 2000 года выпуска

№

Артикул

Название
1

36610-13F10 HARNESS, WIRING

HARNESS, WIRING
2

36619-23E00 GUIDE, WIRING HARNESS

GUIDE, WIRING HARNESS
3-1

09404-06432 CLAMP (L:65)

CLAMP (L:65)
3-2

09404-06435 CLAMP (L:135)

CLAMP (L:135)
4-1

09407-14403 CLAMP (L:125)

CLAMP (L:125)
4-2

09407-18402 CLAMP (L:165)

CLAMP (L:165)
4-3

09407-25401 CLAMP (L:235)

CLAMP (L:235)
5

01550-06163 BOLT, GUIDE

BOLT, GUIDE
6

03541-04103 SCREW, CLAMP

SCREW, CLAMP
7-1

37102-33870 LOCK SET (EXCEPT CALIF.)

LOCK SET (EXCEPT CALIF.)
7-2

37102-33890 LOCK SET (CALIF. ONLY)

LOCK SET (CALIF. ONLY)
7A

37100-33E20 ...LOCK ASSY. STEERING

...LOCK ASSY. STEERING
8

09139-08016 SCREW

SCREW
9

37740-12F00 SWITCH ASSY. STOP LAMP

SWITCH ASSY. STOP LAMP
10

09443-06046 SPRING, STOP LAMP

SPRING, STOP LAMP
11

37840-44X50 SWITCH ASSY. SIDE STAND

SWITCH ASSY. SIDE STAND
12

01550-06163 BOLT

BOLT
13

38500-10D10 HORN ASSY.

HORN ASSY.
14

01550-08163 BOLT

BOLT
15

37146-33E00 KEY, BLANK (OPT)

KEY, BLANK (OPT)
