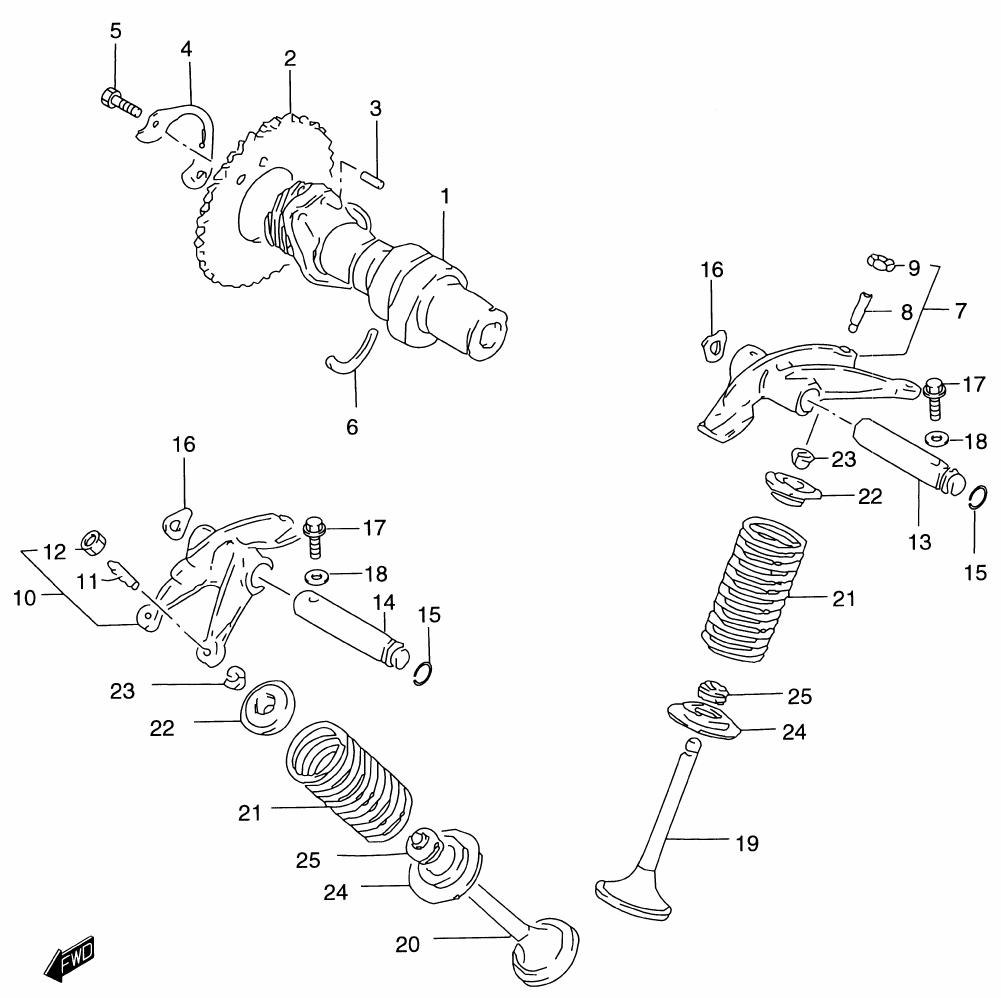

CAMSHAFT W/ VALVES для Suzuki GZ-250 Y - 2000 года выпуска

№

Артикул

Название
1

12711-13F00 CAM SHAFT

CAM SHAFT
2

12741-37400 SPROCKET, CAM SHAFT (NT:42)

SPROCKET, CAM SHAFT (NT:42)
3

04221-05109 PIN

PIN
4

12747-44000 WASHER, SPROCKET

WASHER, SPROCKET
5

09111-06027 BOLT (6X12.5)

BOLT (6X12.5)
6

09390-25003 C-RING

C-RING
7

12840-13F00 ARM, VALVE ROCKER IN

ARM, VALVE ROCKER IN
8

12842-49201 ...SCREW, TAPPET ADJUSTING

...SCREW, TAPPET ADJUSTING
9

12843-27A00 ...NUT, TAPPET ADJUSTING

...NUT, TAPPET ADJUSTING
10

12850-13F00 ARM, VALVE ROCKER EX

ARM, VALVE ROCKER EX
11

12842-49201 ...SCREW, TAPPET ADJUSTING

...SCREW, TAPPET ADJUSTING
12

12843-27A00 ...NUT, TAPPET ADJUSTING

...NUT, TAPPET ADJUSTING
13

12861-38200 SHAFT, VALVE ROCKER ARM INTAKE (L:91.5)

SHAFT, VALVE ROCKER ARM INTAKE (L:91.5)
14

12871-38200 SHAFT, VALVE ROCKER ARM (EXHAUST)

SHAFT, VALVE ROCKER ARM (EXHAUST)
15

09280-09005 O-RING (D:1.9,ID:8.6)

O-RING (D:1.9,ID:8.6)
16

09164-12018 WASHER

WASHER
17

01550-06303 BOLT

BOLT
18

09168-06023 GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)
19

12911-38200 VALVE, INTAKE

VALVE, INTAKE
20

12912-38201 VALVE, EXHAUST

VALVE, EXHAUST
21

12921-38211 SPRING, VALVE

SPRING, VALVE
22

12931-49200 RETAINER, VALVE SPRING

RETAINER, VALVE SPRING
23

12932-49200 COTTER, VALVE

COTTER, VALVE
24

12933-38200 SEAT, VALVE SPRING

SEAT, VALVE SPRING
25

09289-05015 OIL SEAL

OIL SEAL
