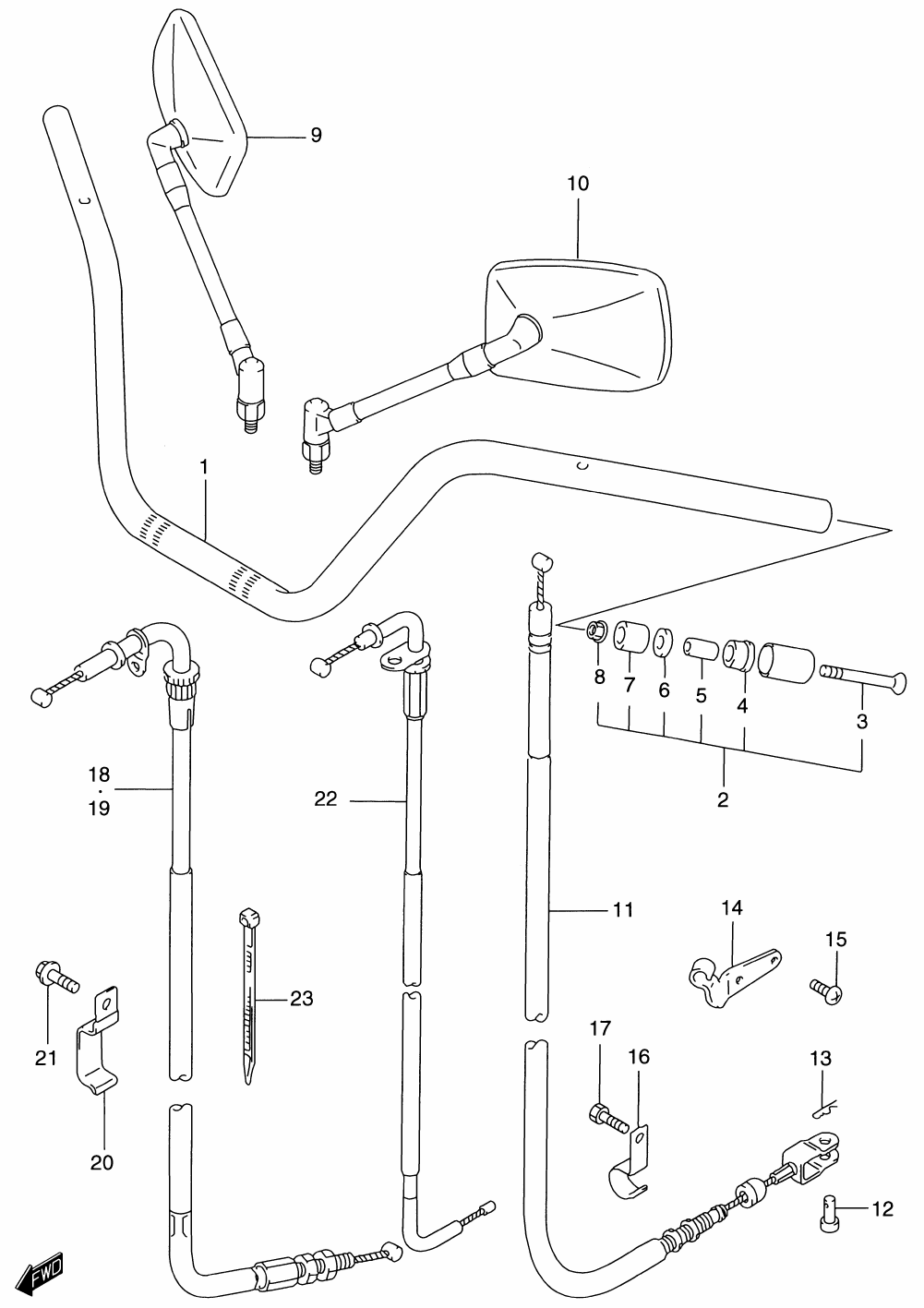

HANDLEBAR W/ CABLES - MIRRORS для Suzuki GZ-250 Y - 2000 года выпуска`
-
№АртикулНазвание
-
156111-12F00 HANDLEBARHANDLEBAR
-
256200-12870 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
309127-06021 ...SCREW (6X125)...SCREW (6X125)
-
456272-26D10 ...EXPANDER, HANDLE BALANCER...EXPANDER, HANDLE BALANCER
-
556276-17D00 ...SPACER, EXPANDER...SPACER, EXPANDER
-
609160-06126 ...WASHER (6.5X14X2.0)...WASHER (6.5X14X2.0)
-
756272-44500 ...EXPANDER, HANDLE BALANCER...EXPANDER, HANDLE BALANCER
-
809159-06024 ...NUT...NUT
-
956500-03F20 MIRROR ASSY. VIEW (REAR) (RIGHT)MIRROR ASSY. VIEW (REAR) (RIGHT)
-
1056600-03F20 MIRROR ASSY. VIEW (REAR) (LEFT)MIRROR ASSY. VIEW (REAR) (LEFT)
-
1158200-13F00 CABLE ASSY. CLUTCHCABLE ASSY. CLUTCH
-
1209200-06004 PIN (L:13)PIN (L:13)
-
1304111-20158 COTTER PINCOTTER PIN
-
1458634-25D00 STOPPER, CLUTCH CABLESTOPPER, CLUTCH CABLE
-
15-201500-06167 BOLTBOLT
-
1658626-37400 CLAMP, CLUTCH CABLECLAMP, CLUTCH CABLE
-
1702112-16103 SCREWSCREW
-
1858300-13F00 CABLE ASSY. THROTTLE NO.1CABLE ASSY. THROTTLE NO.1
-
1958300-13F10 CABLE ASSY. THROTTLE NO.2CABLE ASSY. THROTTLE NO.2
-
2009403-10307 CLAMPCLAMP
-
2101550-06123 BOLTBOLT
-
2258410-13F00 CABLE, STARTERCABLE, STARTER
-
23-109407-14403 CLAMP (L:125)CLAMP (L:125)
-
23-209407-25401 CLAMP (L:235)CLAMP (L:235)
