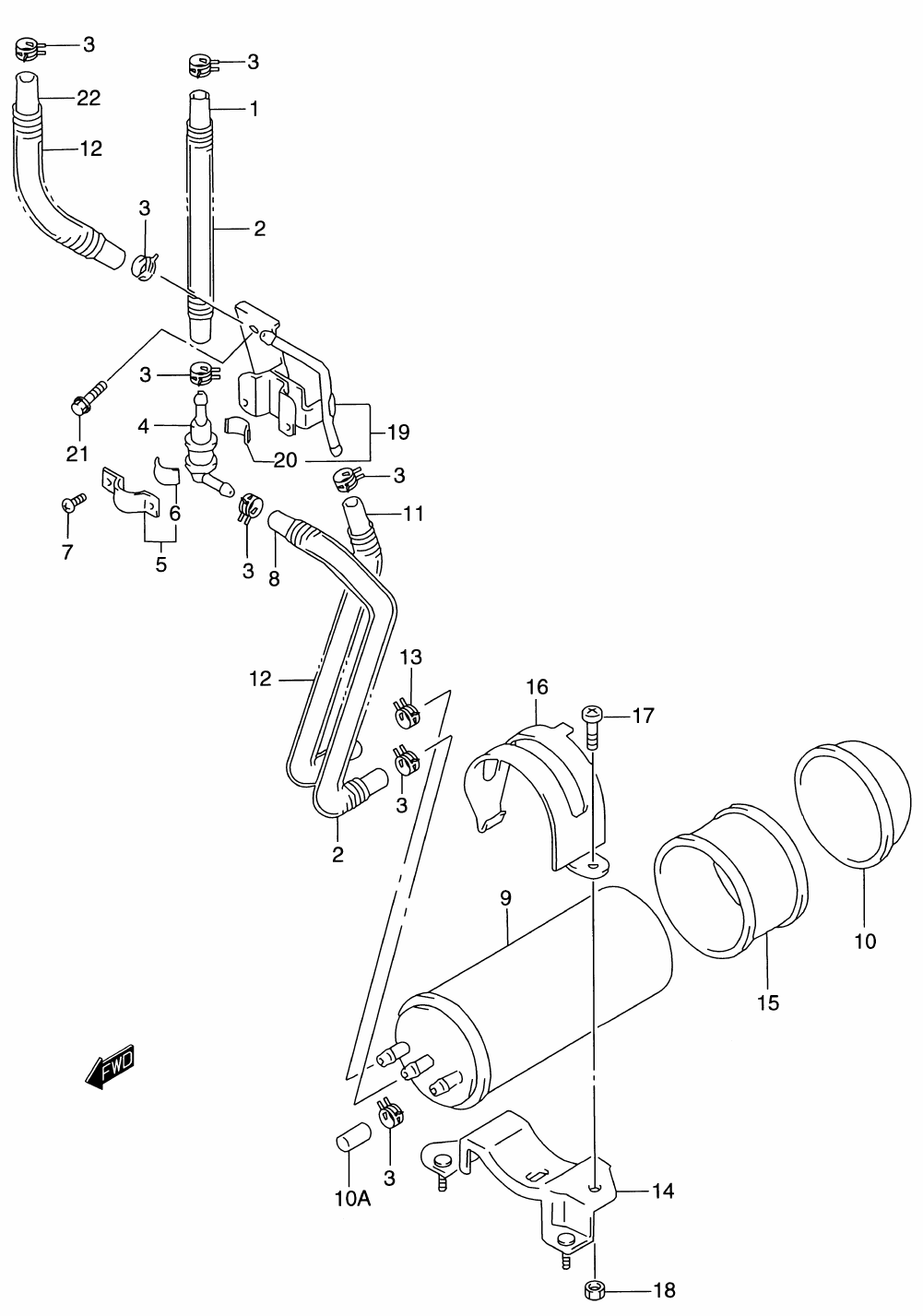

POLLUTION CONTROL (CALIF. ONLY) для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
109355-54116-600 HOSE, TANK AND VALVE (L:600(R)240)HOSE, TANK AND VALVE (L:600(R)240)
-
209440-13043 SPRINGSPRING
-
309401-11413 CLIPCLIP
-
444240-17C00 VALVE, BREATHERVALVE, BREATHER
-
544892-24A00 PLATEPLATE
-
644894-24A00 ...CUSHION...CUSHION
-
702142-04083 SCREWSCREW
-
844433-13F00 HOSE, VALVE AND CANISTERHOSE, VALVE AND CANISTER
-
917210-26E00 CANISTERCANISTER
-
1017211-48E00 CAPCAP
-
10A09251-07003 CAP, PARGECAP, PARGE
-
1144434-13F00 HOSE, CANISTER AND CARBHOSE, CANISTER AND CARB
-
1209440-13052 SPRINGSPRING
-
1309401-12404 CLIPCLIP
-
1444880-02F01 BRACKET, CANISTERBRACKET, CANISTER
-
1544883-26E00 CUSHIONCUSHION
-
1644882-02F01 HOLDERHOLDER
-
1702142-06123 SCREWSCREW
-
1808316-10063 NUTNUT
-
1944890-13F00 BRACKET, BREATHER VALVEBRACKET, BREATHER VALVE
-
2044894-24A00 ...CUSHION...CUSHION
-
2101550-06123 BOLTBOLT
-
2209355-54115-600 HOSE, CARB (L:600(R)130)HOSE, CARB (L:600(R)130)
