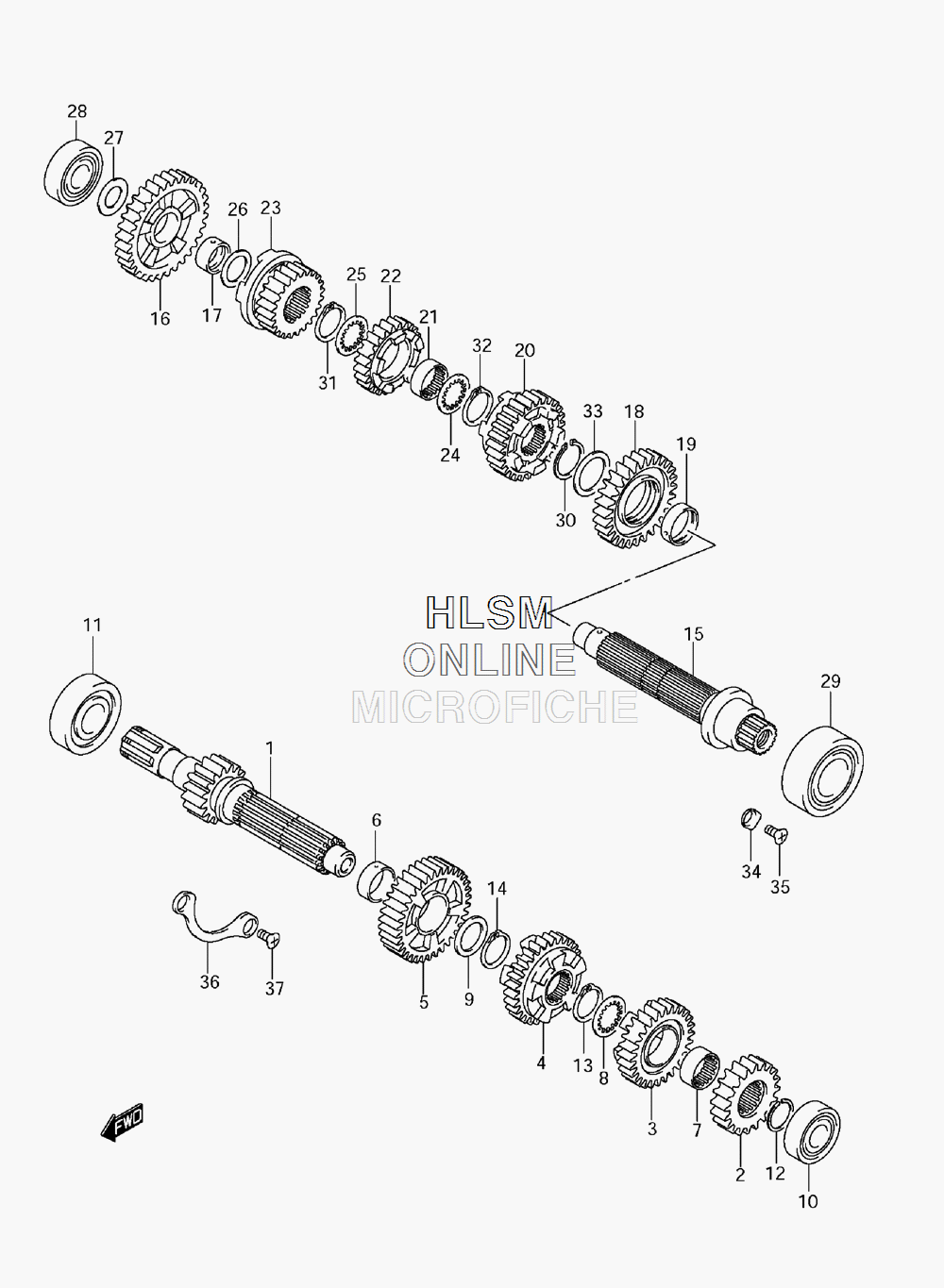

TRANSMISSION для Suzuki VZ1500 K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    24120-40H00 SHAFT, CNTR (NT:16)
    SHAFT, CNTR (NT:16)
  • 2
    24221-48G00 GEAR, 2ND DRIVE (NT:20)
    GEAR, 2ND DRIVE (NT:20)
  • 3
    24231-48G00 GEAR, 3RD DRIVE (NT:26)
    GEAR, 3RD DRIVE (NT:26)
  • 4
    24241-40H00 GEAR, 4TH DRIVE (NT:32)
    GEAR, 4TH DRIVE (NT:32)
  • 5
    24251-40H00 GEAR, 5TH DRIVE (NT:33)
    GEAR, 5TH DRIVE (NT:33)
  • 6
    24252-24F10 BUSH, 5TH DRIVE GEAR
    BUSH, 5TH DRIVE GEAR
  • 7
    24262-24F10 BUSH, 3RD DRIVE GEAR
    BUSH, 3RD DRIVE GEAR
  • 8
    09167-27003 WASHER, 3RD DRIVE GEAR
    WASHER, 3RD DRIVE GEAR
  • 9
    09181-27014 WASHER, 5TH DRIVE GEAR 27X36X2.5
    WASHER, 5TH DRIVE GEAR 27X36X2.5
  • 10
    09262-20080 BEARING, CNTR SHAFT, LEFT 20X52X15
    BEARING, CNTR SHAFT, LEFT 20X52X15
  • 11
    09262-25153 BEARING, CNTR SHAFT, RIGHT 25X62X17
    BEARING, CNTR SHAFT, RIGHT 25X62X17
  • 12
    09380-27004 CIRCLIP, 2ND DRIVE GEAR
    CIRCLIP, 2ND DRIVE GEAR
  • 13
    09380-27006 CIRCLIP, 3RD DRIVE GEAR
    CIRCLIP, 3RD DRIVE GEAR
  • 14
    09380-27006 CIRCLIP, 5TH DRIVE GEAR
    CIRCLIP, 5TH DRIVE GEAR
  • 15
    24130-40H00 SHAFT, DRIVE
    SHAFT, DRIVE
  • 16
    24311-48G00 GEAR, 1ST DRIVEN (NT:35)
    GEAR, 1ST DRIVEN (NT:35)
  • 17
    24312-24F10 BUSH, 1ST DRIVEN GEAR
    BUSH, 1ST DRIVEN GEAR
  • 18
    24321-48G01 GEAR, 2ND DRIVEN (NT:28)
    GEAR, 2ND DRIVEN (NT:28)
  • 19
    24322-48G00 BUSH, 2ND DRIVEN GEAR
    BUSH, 2ND DRIVEN GEAR
  • 20
    24331-40H00 GEAR, 3RD DRIVEN (NT:27)
    GEAR, 3RD DRIVEN (NT:27)
  • 21
    24332-24F10 BUSH, 4TH DRIVEN GEAR
    BUSH, 4TH DRIVEN GEAR
  • 22
    24341-40H00 GEAR, 4TH DRIVEN (NT:28)
    GEAR, 4TH DRIVEN (NT:28)
  • 23
    24351-40H00 GEAR, 5TH DRIVEN (NT:26)
    GEAR, 5TH DRIVEN (NT:26)
  • 24
    09167-30008 WASHER, 4TH DRIVEN GEAR
    WASHER, 4TH DRIVEN GEAR
  • 25
    09167-30008 WASHER, 4TH DRIVEN GEAR
    WASHER, 4TH DRIVEN GEAR
  • 26
    09181-22223 WASHER, 1ST DRIVEN GEAR, 22X34X1 (RIGHT)
    WASHER, 1ST DRIVEN GEAR, 22X34X1 (RIGHT)
  • 27
    09181-24005 WASHER, 1ST DRIVEN GEAR, 24X34X1 (LEFT)
    WASHER, 1ST DRIVEN GEAR, 24X34X1 (LEFT)
  • 28
    09262-22024 BEARING, DRIVE SHAFT, RIGHT 22X56X16
    BEARING, DRIVE SHAFT, RIGHT 22X56X16
  • 29
    09267-35004 BEARING, DRIVE SHAFT, LEFT
    BEARING, DRIVE SHAFT, LEFT
  • 30
    09380-30009 CIRCLIP, 2ND DRIVEN GEAR
    CIRCLIP, 2ND DRIVEN GEAR
  • 31
    09380-30009 CIRCLIP, 4TH DRIVEN GEAR, RIGHT
    CIRCLIP, 4TH DRIVEN GEAR, RIGHT
  • 32
    09380-30009 CIRCLIP, 4TH DRIVEN GEAR, LEFT
    CIRCLIP, 4TH DRIVEN GEAR, LEFT
  • 33
    08211-30403 WASHER, 2ND DRIVEN GEAR
    WASHER, 2ND DRIVEN GEAR
  • 34
    24741-20A00 RETAINER, DRIVE SHAFT, LEFT
    RETAINER, DRIVE SHAFT, LEFT
  • 35
    09126-06011 SCREW, DRIVE SHAFT (6X12)
    SCREW, DRIVE SHAFT (6X12)
  • 36
    24741-27A00 RETAINER, CNTR SHAFT, RIGHT
    RETAINER, CNTR SHAFT, RIGHT
  • 37
    09126-06011 SCREW, CNTR SHAFT (6X12)
    SCREW, CNTR SHAFT (6X12)
