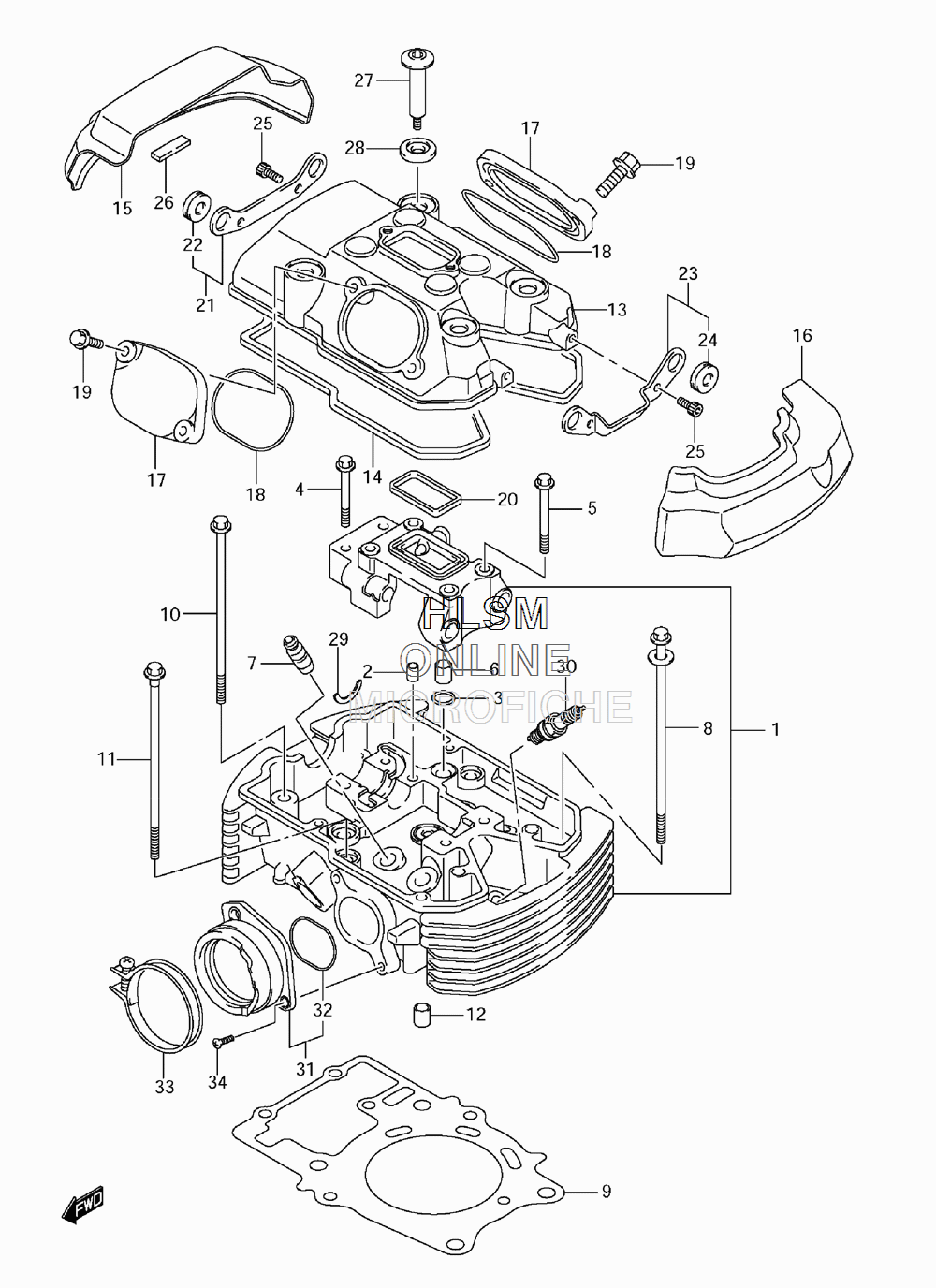

CYLINDER HEAD (REAR) для Suzuki VZ1500 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
111103-40H00 HEAD ASSY, CYLINDER REAR (INCL. 2-6)HEAD ASSY, CYLINDER REAR (INCL. 2-6)
-
209206-08001 PINPIN
-
309280-11001 O RINGO RING
-
401547-0650A BOLTBOLT
-
501547-0665A BOLTBOLT
-
604211-11129 PINPIN
-
711115-32E70 GUIDE, VALVE (OS 0.3) (OPT)GUIDE, VALVE (OS 0.3) (OPT)
-
811117-05H00 BOLT, CYLINDER HEADBOLT, CYLINDER HEAD
-
911142-40H00 GASKET, CYLINDER HEAD REARGASKET, CYLINDER HEAD REAR
-
1009103-08405 BOLT (8X16)BOLT (8X16)
-
1109103-08415 BOLT (8X18)BOLT (8X18)
-
1204211-13189 PINPIN
-
1311171-40H00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
1411173-40H00 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
1511174-40H10 CAP, CYLINDER HEAD COVER NO.4CAP, CYLINDER HEAD COVER NO.4
-
1611175-40H00 CAP, CYLINDER HEAD COVER NO.2CAP, CYLINDER HEAD COVER NO.2
-
1711176-40H00 CAP, INSPECTIONCAP, INSPECTION
-
1809280-60004 O RINGO RING
-
1901547-0620A BOLTBOLT
-
2011177-40H00 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
2111180-40H00 BRACKET, HEAD COVER CAP NO.1 (INCL. 22)BRACKET, HEAD COVER CAP NO.1 (INCL. 22)
-
2209320-08013 CUSHIONCUSHION
-
2311180-40H10 BRACKET, HEAD COVER CAP NO.2 (INCL. 24)BRACKET, HEAD COVER CAP NO.2 (INCL. 24)
-
2409320-08013 CUSHIONCUSHION
-
2507130-0612A BOLTBOLT
-
2694424-03H00 CUSHION, HEAD COVER CAPCUSHION, HEAD COVER CAP
-
2709106-07022 BOLTBOLT
-
2811191-27E00 WASHERWASHER
-
2909390-22002 C RING, CAMSHAFTC RING, CAMSHAFT
-
3009482-00528 SPARK PLUG, CR6E (NGK)SPARK PLUG, CR6E (NGK)
-
3009482-00529 SPARK PLUG, U20ESR-N (ND)SPARK PLUG, U20ESR-N (ND)
-
3009482-00516 SPARK PLUG, CR7E (NGK) (OPT)SPARK PLUG, CR7E (NGK) (OPT)
-
3009482-00515 SPARK PLUG, U22ESR-N (ND) (OPT)SPARK PLUG, U22ESR-N (ND) (OPT)
-
3113102-40H00 PIPE ASSY, INTAKE (INCL. 32)PIPE ASSY, INTAKE (INCL. 32)
-
3209280-45004 O-RINGO-RING
-
3313170-40H00 CLAMPCLAMP
-
3409120-06008 SCREWSCREW
