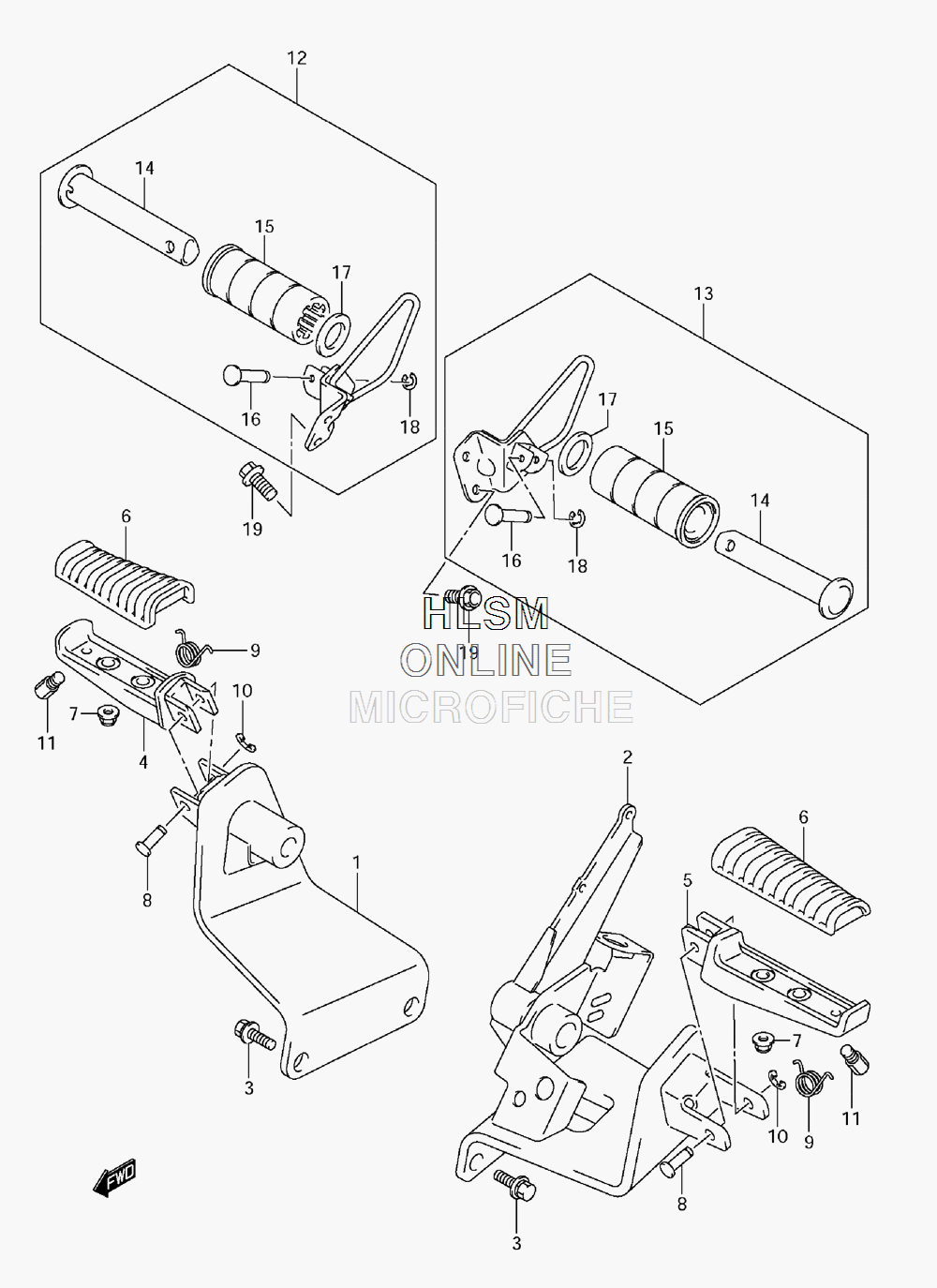

FOOTREST для Suzuki VZ1500 K9 - 2009 года выпуска

№

Артикул

Название
1

43510-40H00 BRACKET, FRONT FOOTREST RIGHT HAND

BRACKET, FRONT FOOTREST RIGHT HAND
2

43520-40H00 BRACKET, FRONT FOOTREST LEFT HAND

BRACKET, FRONT FOOTREST LEFT HAND
3

09103-10378 BOLT

BOLT
4

43531-48G00 BAR, FRONT FOOTREST RIGHT HAND

BAR, FRONT FOOTREST RIGHT HAND
5

43541-48G00 BAR, FRONT FOOTREST LEFT HAND

BAR, FRONT FOOTREST LEFT HAND
6

43550-48G00 RUBBER

RUBBER
7

08319-2106A NUT

NUT
8

09208-08010 PIN

PIN
9

09448-14047 SPRING

SPRING
10

08332-1106B E RING

E RING
11

43576-07D01 BOLT, BANK SENSOR

BOLT, BANK SENSOR
12

43600-40H00 FOOTREST, PILLION RIGHT HAND (INCL. 14-18)

FOOTREST, PILLION RIGHT HAND (INCL. 14-18)
13

43700-40H00 FOOTREST, PILLION LEFT HAND (INCL. 14-18)

FOOTREST, PILLION LEFT HAND (INCL. 14-18)
14

43610-39G00 BAR

BAR
15

43612-39G00 RUBBER

RUBBER
16

09208-06007 PIN

PIN
17

09160-19024 WASHER

WASHER
18

08332-1104A E RING

E RING
19

09103-08412 BOLT, BRACKET

BOLT, BRACKET
