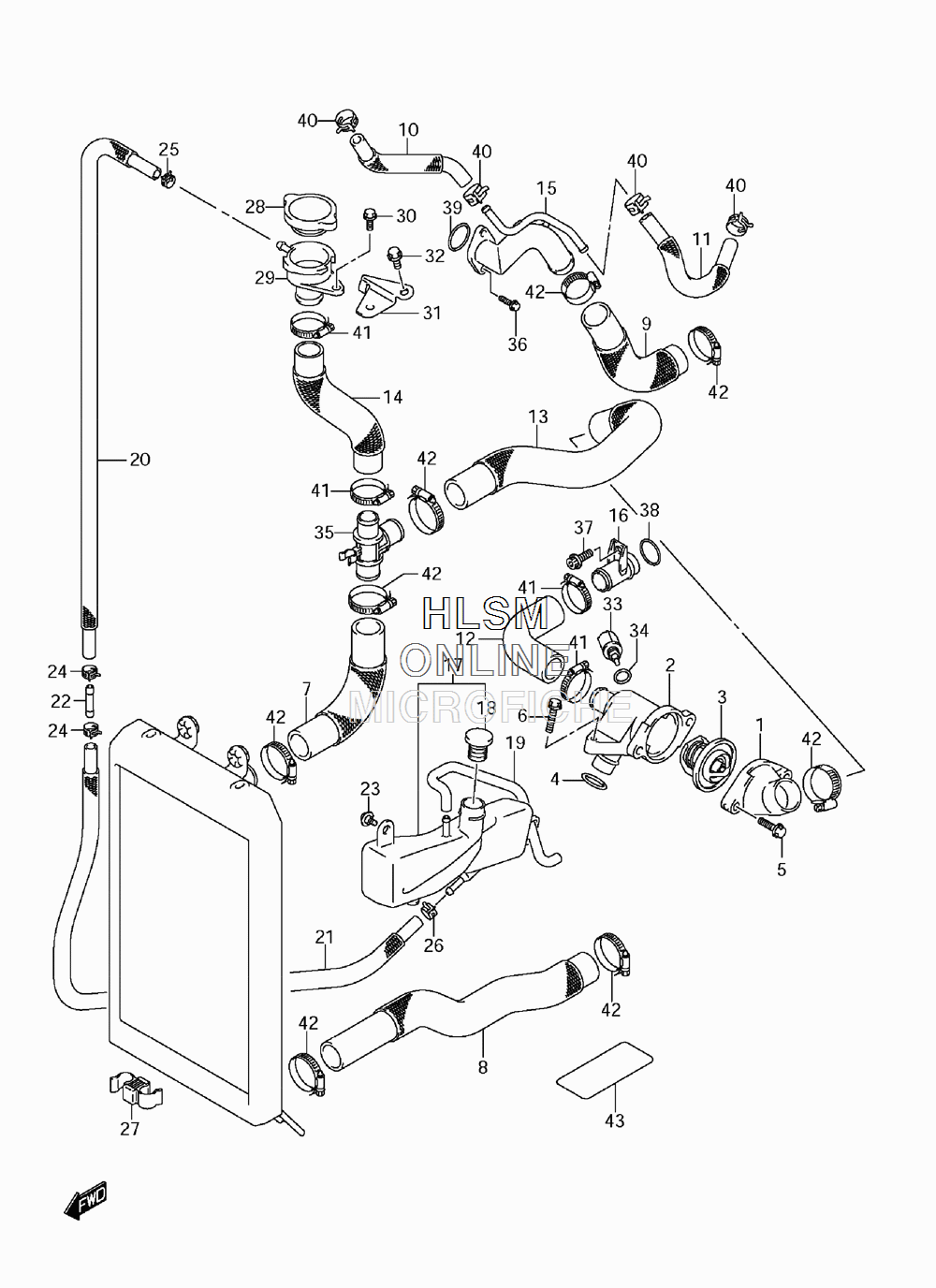

RADIATOR HOSE W/ RESERVOIR для Suzuki VZ1500 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
117661-48G10 COVER, THERMOSTATCOVER, THERMOSTAT
-
217662-40H00 CONNECTOR, THERMOSTAT INLETCONNECTOR, THERMOSTAT INLET
-
317670-06G50 THERMOSTAT, WATERTHERMOSTAT, WATER
-
409280-18009 O RINGO RING
-
501550-0620A BOLTBOLT
-
601547-0625A BOLTBOLT
-
717851-40H00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
817852-40H00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
917853-40H00 HOSE, CYLINDER INLETHOSE, CYLINDER INLET
-
1017854-40H00 HOSE, WATER BYPASS UPPERHOSE, WATER BYPASS UPPER
-
1117855-40H00 HOSE, WATER BYPASS LOWERHOSE, WATER BYPASS LOWER
-
1217856-40H00 HOSE, REAR CYL HEAD OUTLETHOSE, REAR CYL HEAD OUTLET
-
1317857-40H00 HOSE, THERMOSTAT OUTLETHOSE, THERMOSTAT OUTLET
-
1417858-40H00 HOSE, CONDUCTIONHOSE, CONDUCTION
-
1517860-40H00 PIPE, CYL WATER INLETPIPE, CYL WATER INLET
-
1617890-06G20 UNIONUNION
-
1717910-40H00 TANK ASSY, RESERVOIR (INCL. 18)TANK ASSY, RESERVOIR (INCL. 18)
-
1817931-02FA0 CAPCAP
-
1917982-40H00 HOSE, TANK OVERFLOWHOSE, TANK OVERFLOW
-
2017981-40H00 HOSE, TANK INLET NO.1HOSE, TANK INLET NO.1
-
2109352-50901-600 HOSE, TANK INLET NO.2HOSE, TANK INLET NO.2
-
2209364-06005 JOINT, HOSEJOINT, HOSE
-
2309111-06085 BOLT (6X12)BOLT (6X12)
-
2409401-08411 CLIPCLIP
-
2509401-10411 CLIPCLIP
-
2609407-14403 CLAMPCLAMP
-
2709407-19401 CLAMPCLAMP
-
2817730-14G00 CAPCAP
-
2917791-14G00 CONDUCTIONCONDUCTION
-
3001547-0512A BOLTBOLT
-
3117792-40H00 BRACKETBRACKET
-
3201547-0612A BOLTBOLT
-
3313650-49X00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
3409168-12017 GASKETGASKET
-
3517891-48G00 JOINT, 3 WAYJOINT, 3 WAY
-
3609103-06274 BOLTBOLT
-
3707130-0612A BOLTBOLT
-
3809280-18009 O RINGO RING
-
3909280-26005 O RINGO RING
-
4009401-12409 CLIPCLIP
-
4109402-32512 CLAMPCLAMP
-
4209402-38512 CLAMPCLAMP
-
4363131-10F00 TAPETAPE
