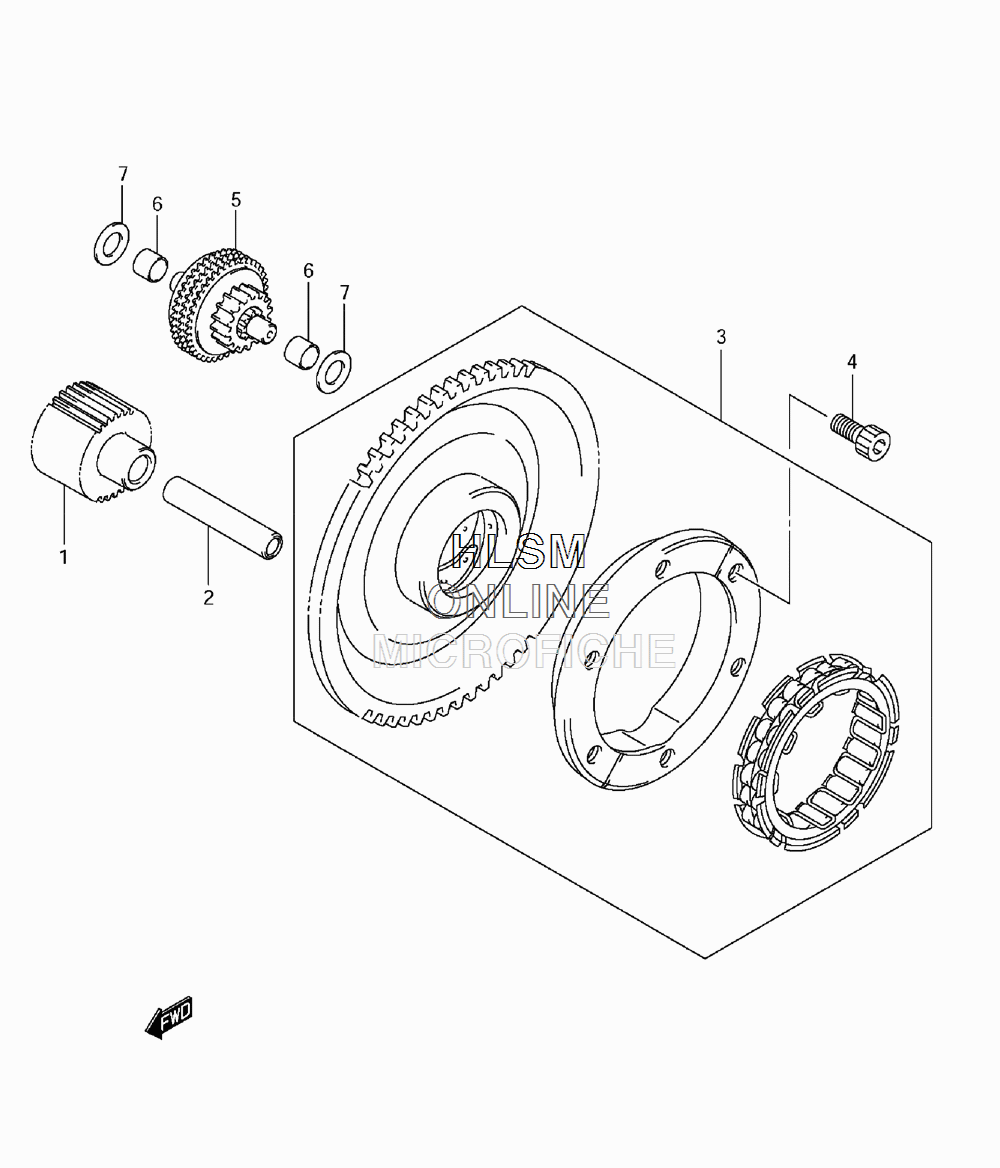

STARTER CLUTCH для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
112611-10F00 GEAR, STARTER IDLE NO.1 NT:31GEAR, STARTER IDLE NO.1 NT:31
-
209206-11015 PINPIN
-
312600-40840 CLUTCH SET, STARTERCLUTCH SET, STARTER
-
409106-08095 BOLTBOLT
-
512600-24B01 LIMITER ASSY, STARTER IDLE GEARLIMITER ASSY, STARTER IDLE GEAR
-
612618-31G00 BUSH, LIMITERBUSH, LIMITER
-
709181-10195 WASHERWASHER
