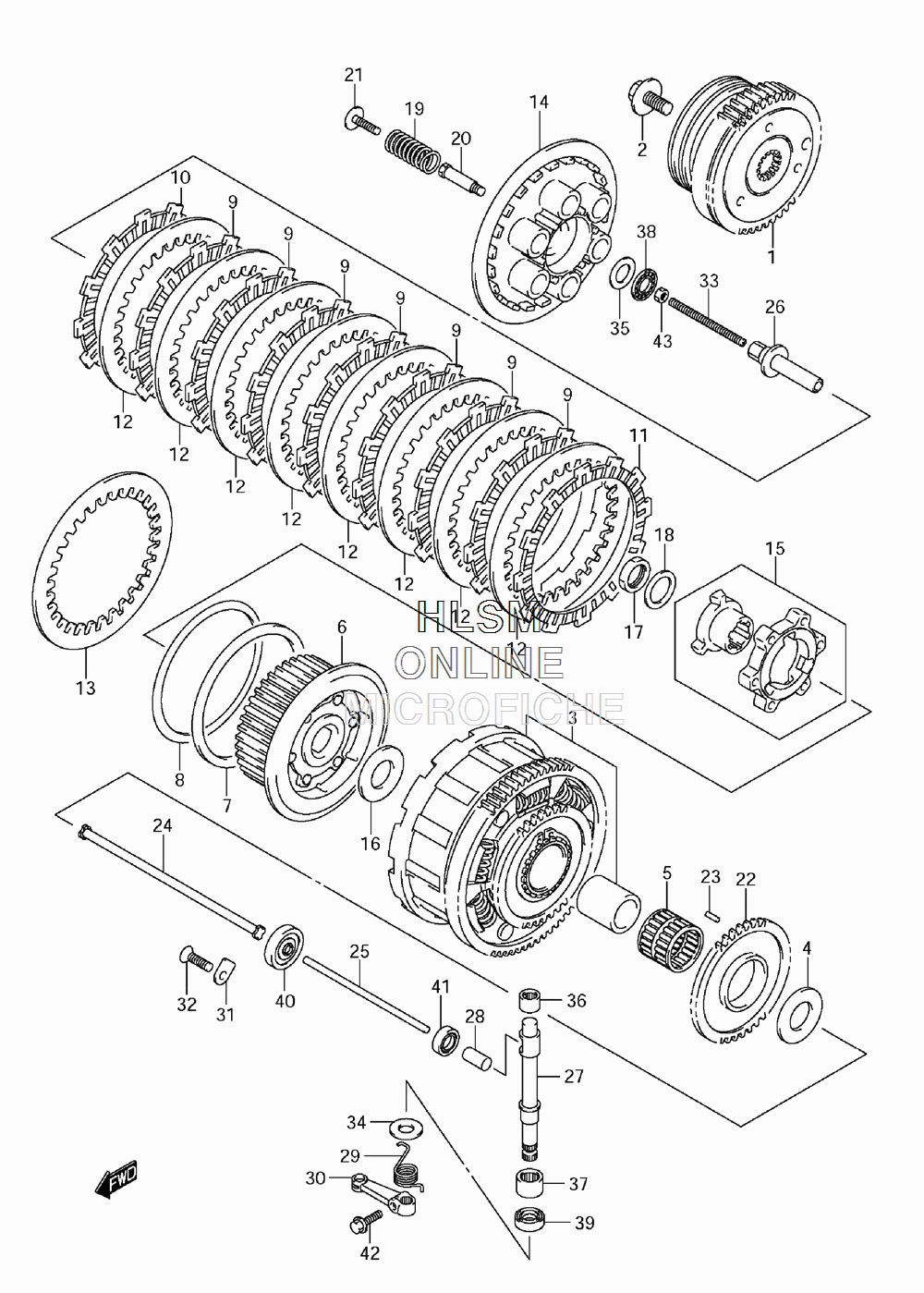

CLUTCH для Suzuki VZ1500 K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    21100-40810 GEAR, PRIMARY DRIVE SET
    GEAR, PRIMARY DRIVE SET
  • 2
    09103-14010 BOLT, PRI DRIVE (14X28)
    BOLT, PRI DRIVE (14X28)
  • 3
    21200-40890 GEAR, PRIMARY DRIVEN (NT:78)
    GEAR, PRIMARY DRIVEN (NT:78)
  • 4
    09160-25074 WASHER, PRI (70X112X1.0)
    WASHER, PRI (70X112X1.0)
  • 5
    09263-35013 BEARING (35X40X39.8)
    BEARING (35X40X39.8)
  • 6
    21410-40H00 HUB, SLEEVE
    HUB, SLEEVE
  • 7
    21471-24F00 SEAT, WAVE WASHER
    SEAT, WAVE WASHER
  • 8
    21472-24F00 WASHER, PLATE WAVE
    WASHER, PLATE WAVE
  • 9
    21441-24F40 PLATE, CLUTCH DRIVE NO.1
    PLATE, CLUTCH DRIVE NO.1
  • 10
    21441-24F10 PLATE, CLUTCH DRIVE NO.2
    PLATE, CLUTCH DRIVE NO.2
  • 11
    21442-24F00 PLATE, CLUTCH DRIVE NO.3
    PLATE, CLUTCH DRIVE NO.3
  • 12
    21451-24F00 PLATE, CLUTCH DRIVEN, NO.1
    PLATE, CLUTCH DRIVEN, NO.1
  • 13
    21451-24F10 PLATE, CLUTCH DRIVEN, NO.2
    PLATE, CLUTCH DRIVEN, NO.2
  • 14
    21462-16G00 DISC, CLUTCH PRESSURE
    DISC, CLUTCH PRESSURE
  • 15
    21610-02F20 CAM SET, CLUTCH
    CAM SET, CLUTCH
  • 16
    09160-25079 WASHER, CLUTCH SLEEVE 25X50X3.5
    WASHER, CLUTCH SLEEVE 25X50X3.5
  • 17
    09159-24010 NUT, CLUTCH SLEEVE HUB
    NUT, CLUTCH SLEEVE HUB
  • 18
    09164-24008 WASHER, CLUTCH SLEEVE
    WASHER, CLUTCH SLEEVE
  • 19
    21413-40H00 SPRING, CLUTCH
    SPRING, CLUTCH
  • 20
    21481-24F30 BOLT, CLUTCH SPRING SPRING
    BOLT, CLUTCH SPRING SPRING
  • 21
    21482-24F30 BOLT, CLUTCH SPRING
    BOLT, CLUTCH SPRING
  • 22
    16321-40H00 GEAR, OIL PUMP DRIVE (NT:55)
    GEAR, OIL PUMP DRIVE (NT:55)
  • 23
    09261-04009 PIN
    PIN
  • 24
    23110-24F00 ROD, CLUTCH
    ROD, CLUTCH
  • 25
    23111-40H00 ROD, CLUTCH PUSH, LEFT
    ROD, CLUTCH PUSH, LEFT
  • 26
    23121-41G00 PIECE, CLUTCH PUSH
    PIECE, CLUTCH PUSH
  • 27
    23122-40H00 CAMSHAFT, CLUTCH RELEASE
    CAMSHAFT, CLUTCH RELEASE
  • 28
    23123-41G00 CAP, CLUTCH PUSH ROD
    CAP, CLUTCH PUSH ROD
  • 29
    23125-48G00 SPRING, CLUTCH RELEASE RETURN
    SPRING, CLUTCH RELEASE RETURN
  • 30
    23271-48G00 ARM, CLUTCH RELEASE
    ARM, CLUTCH RELEASE
  • 31
    24741-20A00 RETAINER, CL PUSH ROD
    RETAINER, CL PUSH ROD
  • 32
    09126-06011 SCREW, CL PUSH
    SCREW, CL PUSH
  • 33
    09134-06015 SCREW, CLUTCH PUSH ROD
    SCREW, CLUTCH PUSH ROD
  • 34
    09160-10020 WASHER, CLUTCH RELEASE 10.5X24X1.0
    WASHER, CLUTCH RELEASE 10.5X24X1.0
  • 35
    09160-15045 WASHER, CLUTCH PUSH PIECE 15.5X28X1.0
    WASHER, CLUTCH PUSH PIECE 15.5X28X1.0
  • 36
    09263-10014 BEARING, CL RLSE CAM LOWER 10X14X10
    BEARING, CL RLSE CAM LOWER 10X14X10
  • 37
    09263-12027 BEARING, CL RLSE CAM UPPER 12X18X12
    BEARING, CL RLSE CAM UPPER 12X18X12
  • 38
    09263-15003 BEARING, CLUTCH PUSH PIECE 15X28X2.0
    BEARING, CLUTCH PUSH PIECE 15X28X2.0
  • 39
    09282-10012 SEAL, CL RLSE CAMSHAFT OIL 10X20X6
    SEAL, CL RLSE CAMSHAFT OIL 10X20X6
  • 40
    09283-06005 SEAL, CLUTCH PUSH ROD OIL 6X18X5
    SEAL, CLUTCH PUSH ROD OIL 6X18X5
  • 41
    09285-10004 SEAL, CLUTCH PUSH ROD CAP 10X17X5
    SEAL, CLUTCH PUSH ROD CAP 10X17X5
  • 42
    01547-0620A BOLT, CL RELEASE ARM
    BOLT, CL RELEASE ARM
  • 43
    08310-0006A NUT, CLUTCH RELEASE ADJ
    NUT, CLUTCH RELEASE ADJ
