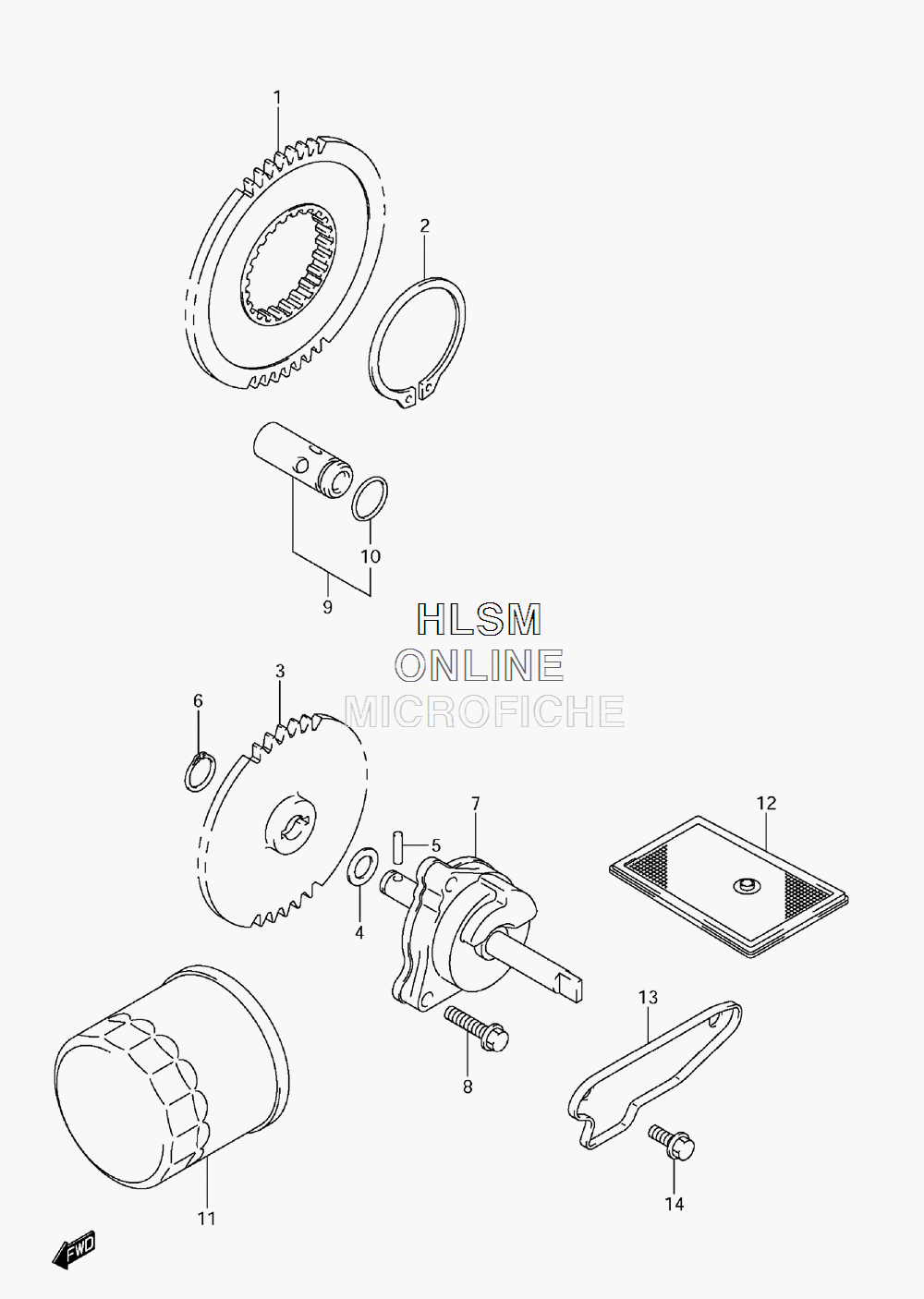

OIL PUMP для Suzuki VZ1500 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
116321-40H00 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
208331-31529 CIRCLIP, OIL PUMP DRIVECIRCLIP, OIL PUMP DRIVE
-
316331-40H00 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
409181-10158 WASHERWASHER
-
509261-04009 PINPIN
-
608331-31109 CIRCLIPCIRCLIP
-
716400-40H00 PUMP ASSY, ENG OILPUMP ASSY, ENG OIL
-
801547-0625A BOLT, OIL PUMPBOLT, OIL PUMP
-
916440-24F00 VALVE ASSY, OIL RELIEF (INCL. 10)VALVE ASSY, OIL RELIEF (INCL. 10)
-
1009280-13004 O RINGO RING
-
1116510-03G00 FILTER ASSY, ENGINE OILFILTER ASSY, ENGINE OIL
-
1216520-32E00 STRAINER, ENG OILSTRAINER, ENG OIL
-
1316523-17G00 CAP, OIL STRAINERCAP, OIL STRAINER
-
1401547-0612A BOLTBOLT
