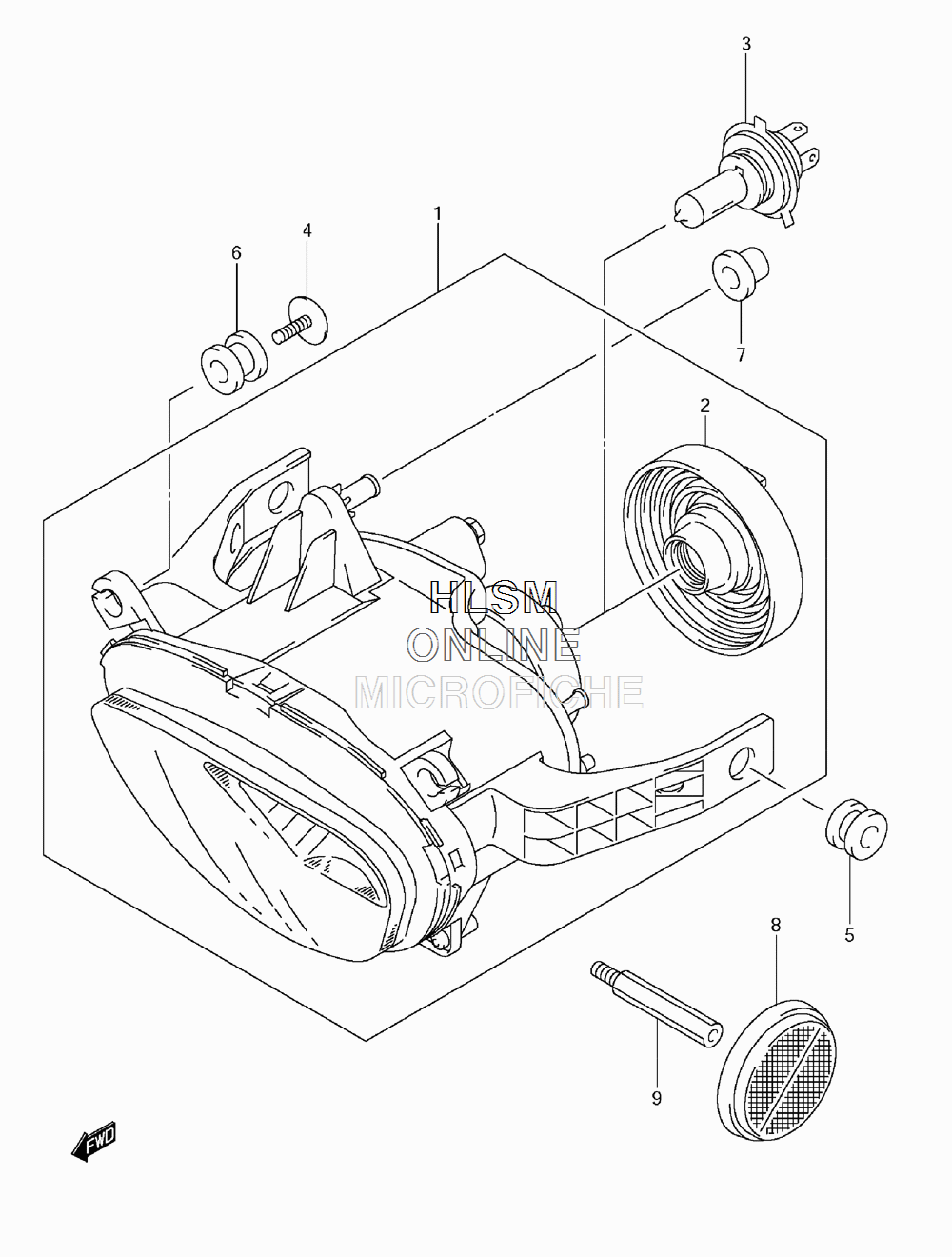

HEADLAMP для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
135100-48G40-999 HEADLAMP ASSY (INCL. 2)HEADLAMP ASSY (INCL. 2)
-
235173-14G00 COVERCOVER
-
309471-12060 BULB (12V60/55W)BULB (12V60/55W)
-
409136-05062 SCREW (5X15)SCREW (5X15)
-
509320-09506 CUSHIONCUSHION
-
609320-09039 CUSHIONCUSHION
-
709320-09505 CUSHIONCUSHION
-
835950-14A10 REFLEX REFLECTOR ASSY, FRONTREFLEX REFLECTOR ASSY, FRONT
-
909119-06104 BOLTBOLT
