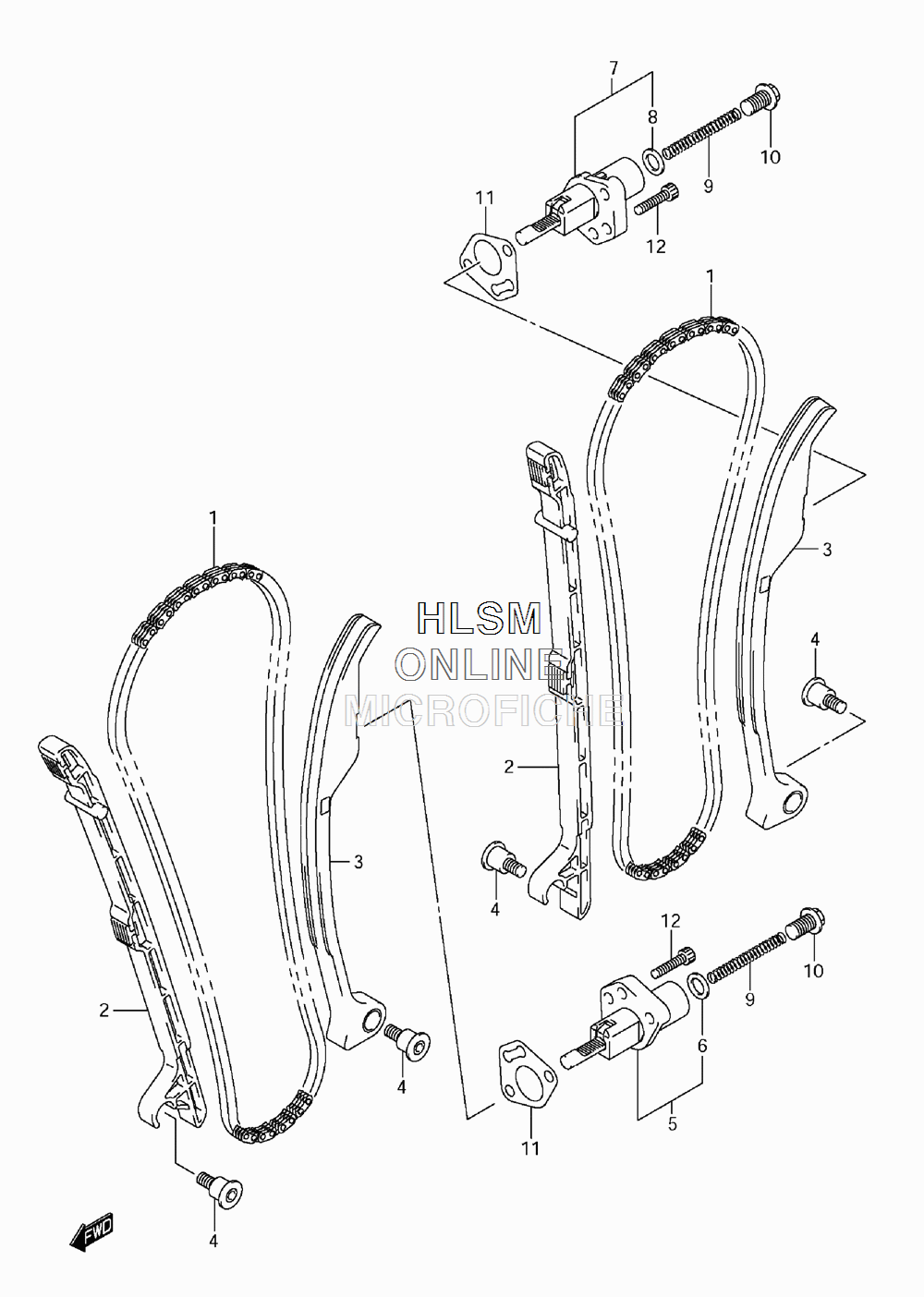

CAM CHAIN ASSY. W/ TENSIONER для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
112760-40H00 CHAIN, CAMSHAFT DRIVECHAIN, CAMSHAFT DRIVE
-
212771-40H00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-40H00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
412812-31G00 BOLTBOLT
-
512830-40H00 ADJUSTER ASSY, TENSIONER FRONT (INCL. 6)ADJUSTER ASSY, TENSIONER FRONT (INCL. 6)
-
612837-24F10 GASKETGASKET
-
712830-40H10 ADJUSTER ASSY, TENSIONER REAR (INCL. 8)ADJUSTER ASSY, TENSIONER REAR (INCL. 8)
-
812837-24F10 GASKETGASKET
-
912831-41G00 SPRINGSPRING
-
1012833-17G00 PLUG, TENSIONERPLUG, TENSIONER
-
1112837-27G00 GASKET, TENSIONERGASKET, TENSIONER
-
1207130-0625B BOLTBOLT
