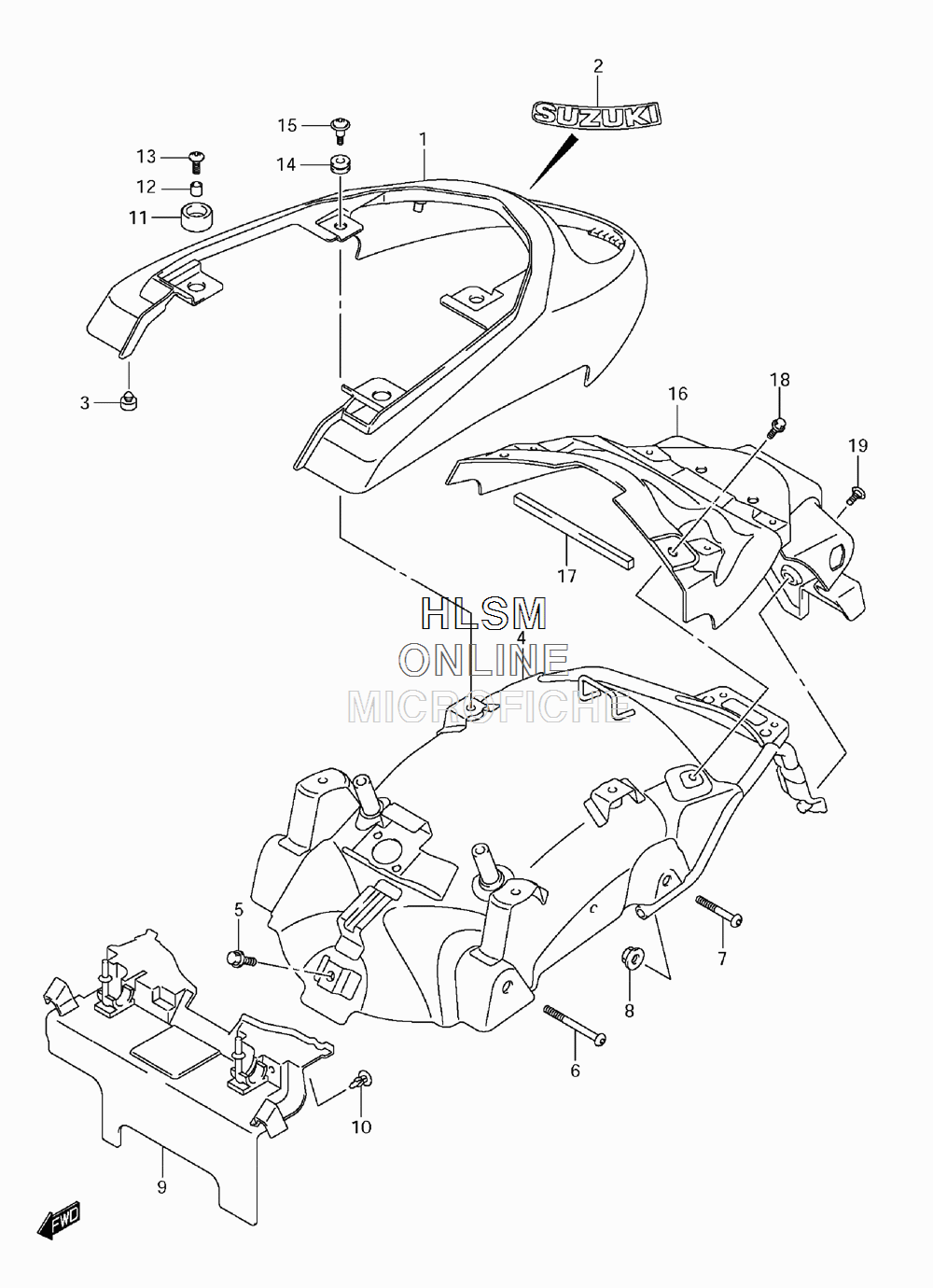

FENDER - REAR для Suzuki VZ1500 K9 - 2009 года выпуска

№

Артикул

Название
1

63110-40H00-YAY FENDER, REAR (YAY - NEBULAR BLACK) (INCL. 2-3)

FENDER, REAR (YAY - NEBULAR BLACK) (INCL. 2-3)
1

63110-40H00-YHL FENDER, REAR (YHL - CANDY RED) (INCL. 2-3)

FENDER, REAR (YHL - CANDY RED) (INCL. 2-3)
1

63110-40H00-YSF FENDER, REAR (YSF- METALLIC BLUE) (INCL. 2-3)

FENDER, REAR (YSF- METALLIC BLUE) (INCL. 2-3)
2

68641-19F00-YES EMBLEM (SILVER)

EMBLEM (SILVER)
3

09250-06012 CUSHION

CUSHION
4

63140-40H00 BRACE, FENDER

BRACE, FENDER
5

01550-0812A BOLT, FRONT

BOLT, FRONT
6

09106-08182 BOLT, BRACE FRONT

BOLT, BRACE FRONT
7

09106-08183 BOLT, BRACE REAR

BOLT, BRACE REAR
8

08316-1008A NUT

NUT
9

63112-40H00 MUDGUARD, FRONT

MUDGUARD, FRONT
10

09409-06314-5PK CLIP (BLACK)

CLIP (BLACK)
11

09320-10045 CUSHION, FRONT

CUSHION, FRONT
12

09180-06286 SPACER

SPACER
13

09139-06030 BOLT, FRONT

BOLT, FRONT
14

09320-09016 CUSHION, REAR

CUSHION, REAR
15

09139-06126 BOLT, REAR

BOLT, REAR
16

63311-40H00 EXTENSION

EXTENSION
17

47161-29B00 CUSHION

CUSHION
18

63161-43E00 BOLT

BOLT
19

09139-06144 BOLT, REAR

BOLT, REAR
