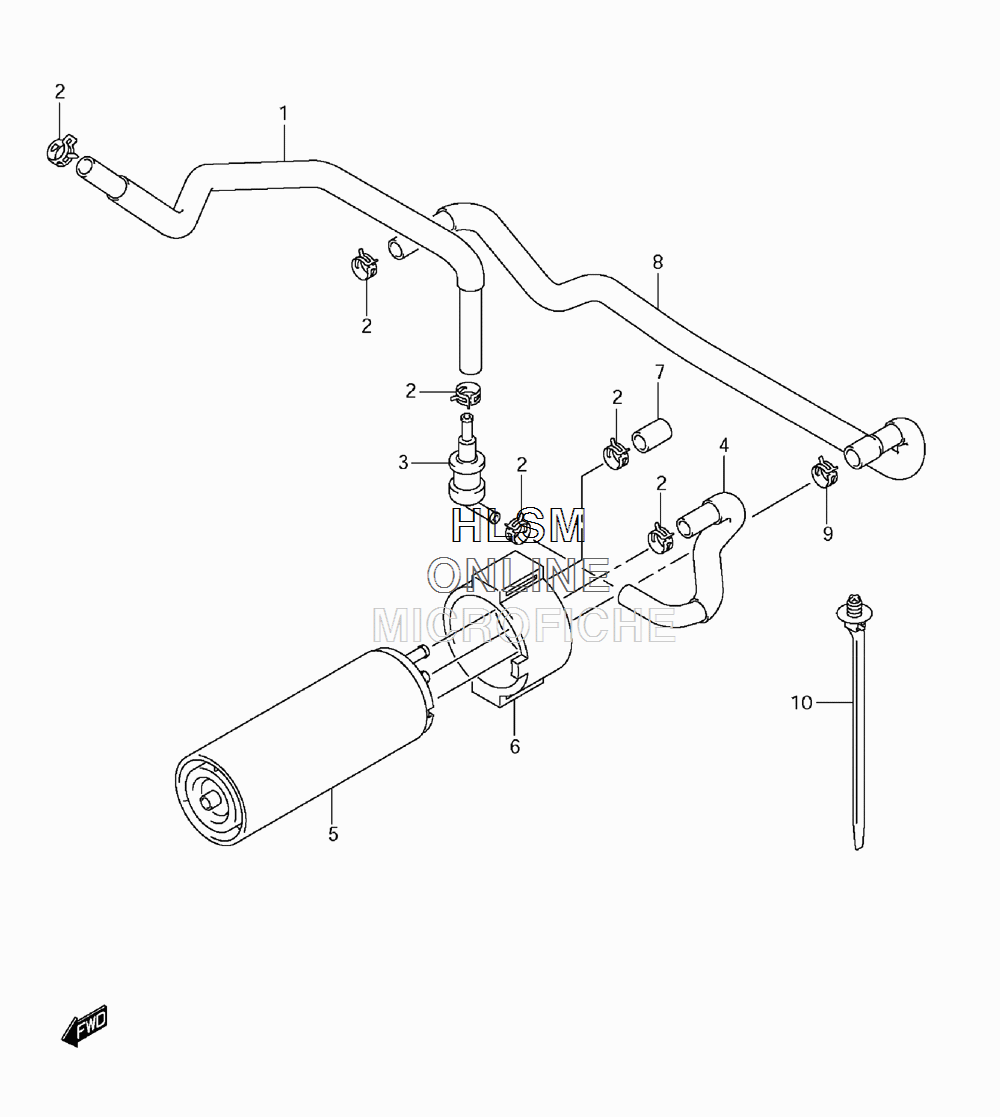

EVAP SYSTEM (CALIF ONLY) для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
144434-40H00 HOSE, TANK AND VALVEHOSE, TANK AND VALVE
-
209401-11413 CLIPCLIP
-
344240-17C00 VALVE, BREATHERVALVE, BREATHER
-
444435-40H00 HOSE, VALVE AND CANISTERHOSE, VALVE AND CANISTER
-
517210-15H00 CANISTER ASSYCANISTER ASSY
-
644883-48G00 CUSHIONCUSHION
-
709251-07003 CAPCAP
-
844436-40H00 HOSE, CANISTER PURGEHOSE, CANISTER PURGE
-
909401-12404 CLIPCLIP
-
1009407-17403 CLAMPCLAMP
