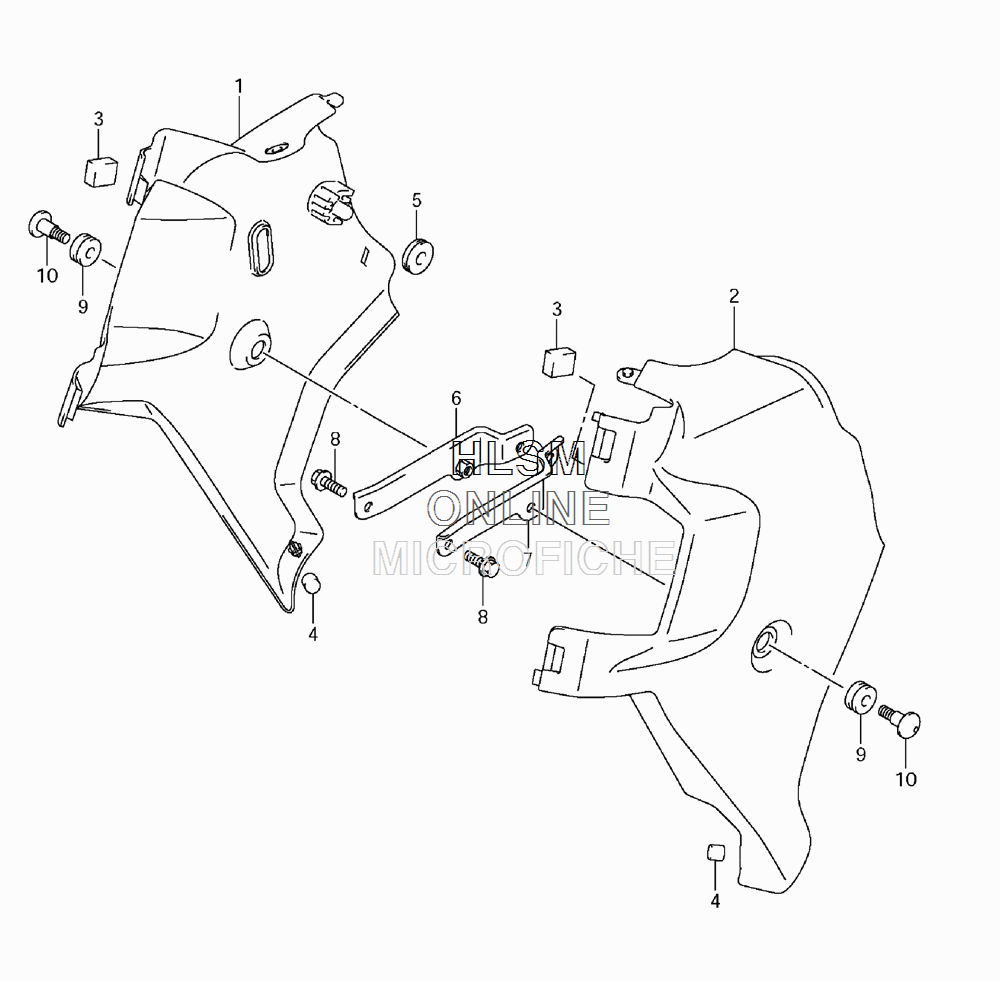

FRAME HEAD COVER для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
147351-40H00 COVER, FRAME HEAD RIGHT HANDCOVER, FRAME HEAD RIGHT HAND
-
247361-40H00 COVER, FRAME HEAD LEFT HANDCOVER, FRAME HEAD LEFT HAND
-
317798-39G00 CUSHIONCUSHION
-
409250-12013 CUSHION, LOWERCUSHION, LOWER
-
509320-08018 CUSHION, UPPERCUSHION, UPPER
-
647370-40H00 PLATE, HEAD COVER RIGHT HANDPLATE, HEAD COVER RIGHT HAND
-
747380-40H00 PLATE, HEAD COVER LEFT HANDPLATE, HEAD COVER LEFT HAND
-
801547-0616A BOLTBOLT
-
909320-09016 CUSHIONCUSHION
-
1009139-06179 SCREWSCREW
