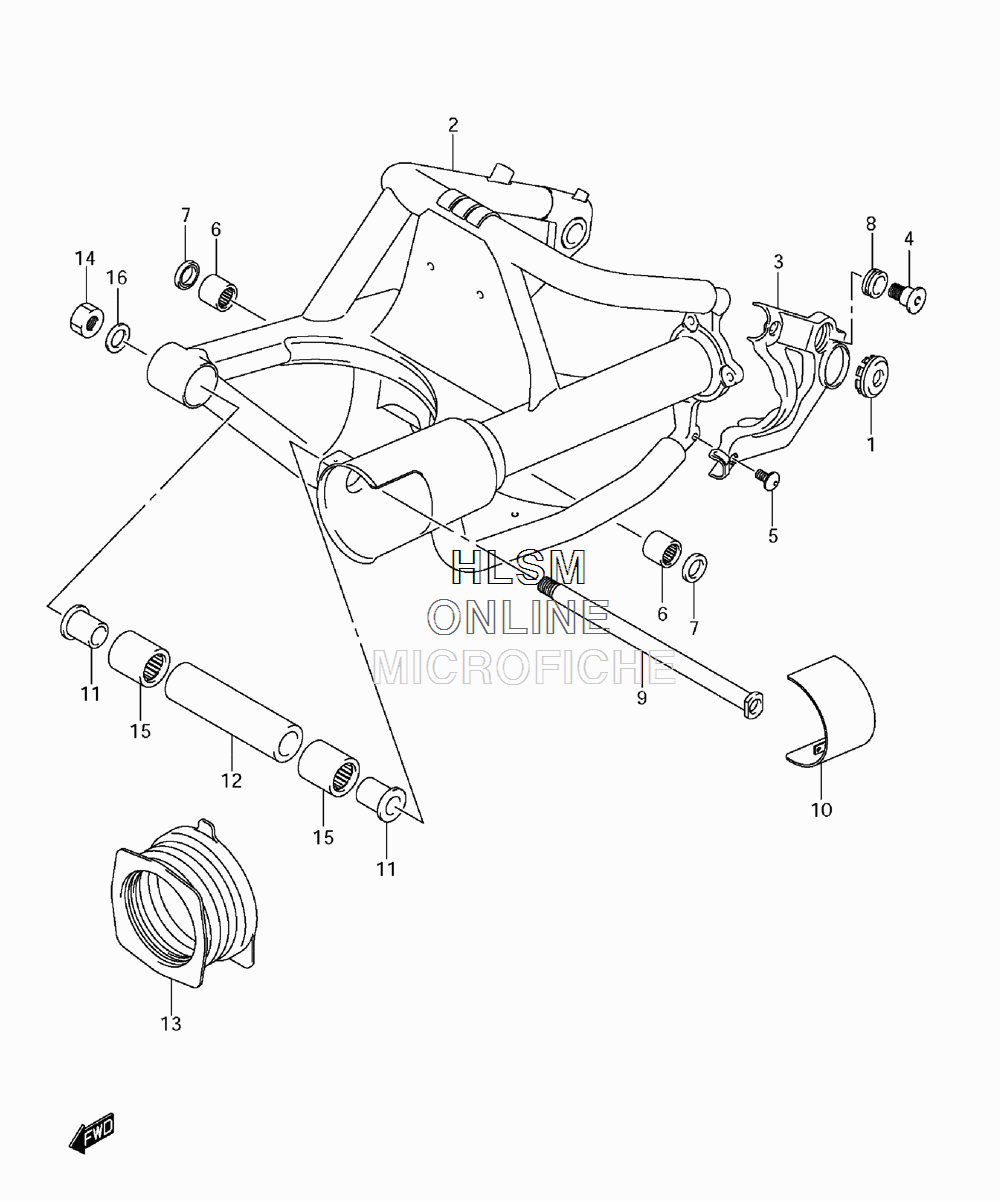

REAR SWINGARM для Suzuki VZ1500 K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    41899-42F10 CAP, REAR SWINGARM COVER
    CAP, REAR SWINGARM COVER
  • 2
    61100-40H00-019 SWINGINGARM, REAR (BLACK)
    SWINGINGARM, REAR (BLACK)
  • 3
    61126-40H00-019 COVER, REAR SWINGARM LEFT HAND (BLACK)
    COVER, REAR SWINGARM LEFT HAND (BLACK)
  • 4
    61127-41F10 BOLT, REAR SWINGARM COVER RR
    BOLT, REAR SWINGARM COVER RR
  • 5
    09139-08007 BOLT, REAR SWINGARM COVER FR
    BOLT, REAR SWINGARM COVER FR
  • 6
    09263-22071 BEARING, REAR CUSHION ROD
    BEARING, REAR CUSHION ROD
  • 7
    09285-22001 SEAL, DUST
    SEAL, DUST
  • 8
    09320-22003 CUSHION, REAR SWINGARM COVER
    CUSHION, REAR SWINGARM COVER
  • 9
    61211-22D00 SHAFT, REAR SWINGARM PIVOT
    SHAFT, REAR SWINGARM PIVOT
  • 10
    61230-40H00 COVER, REAR SWINGARM PIVOT LEFT HAND
    COVER, REAR SWINGARM PIVOT LEFT HAND
  • 11
    61251-31E00 SPACER, REAR SWINGARM BEARING
    SPACER, REAR SWINGARM BEARING
  • 12
    61280-48G01 SPACER, REAR SWINGARM CENTER
    SPACER, REAR SWINGARM CENTER
  • 13
    61372-40H00 BOOT, PROPELLER SHAFT
    BOOT, PROPELLER SHAFT
  • 14
    09159-18007 NUT, REAR SWINGARM PIVOT
    NUT, REAR SWINGARM PIVOT
  • 15
    09263-25059 BEARING, REAR SWINGARM PIVOT
    BEARING, REAR SWINGARM PIVOT
  • 16
    08322-0118B WASHER, REAR SWINGARM PIVOT
    WASHER, REAR SWINGARM PIVOT
