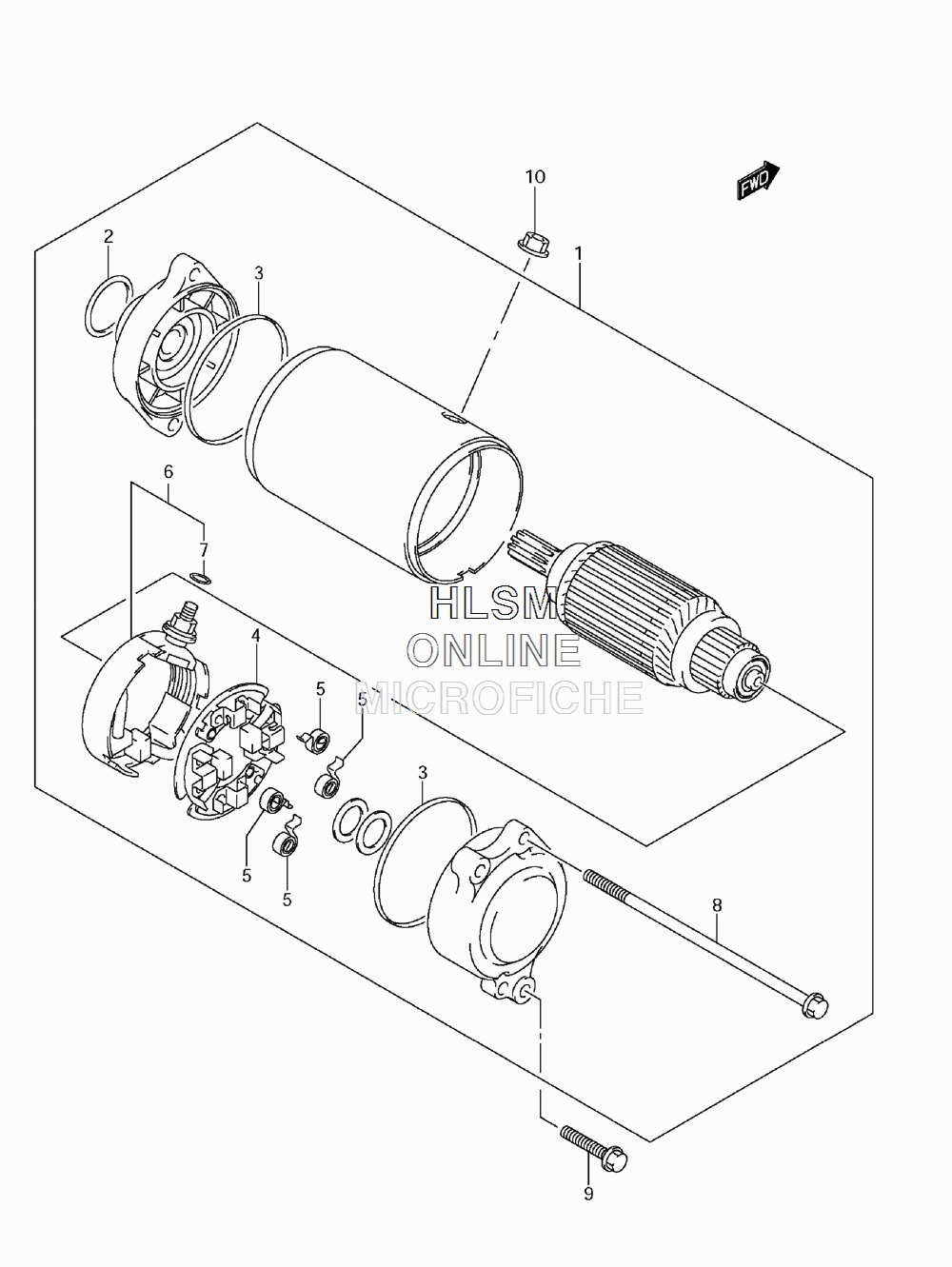

STARTING MOTOR для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
131100-40H00 MOTOR ASSY, STARTING (INCL. 2-8)MOTOR ASSY, STARTING (INCL. 2-8)
-
209280-25002 O RING (D:3.1,ID:24.4)O RING (D:3.1,ID:24.4)
-
331264-31300 O RINGO RING
-
431132-38B00 HOLDER SET, BRUSHHOLDER SET, BRUSH
-
531135-38B00 SPRING, BRUSHSPRING, BRUSH
-
631130-38B00 TERMINAL SET, BRUSH (INC 7)TERMINAL SET, BRUSH (INC 7)
-
731143-49040 O RINGO RING
-
831281-24B10 SET BOLTSET BOLT
-
909103-06212 BOLT (6X25)BOLT (6X25)
-
1008361-3506A NUTNUT
