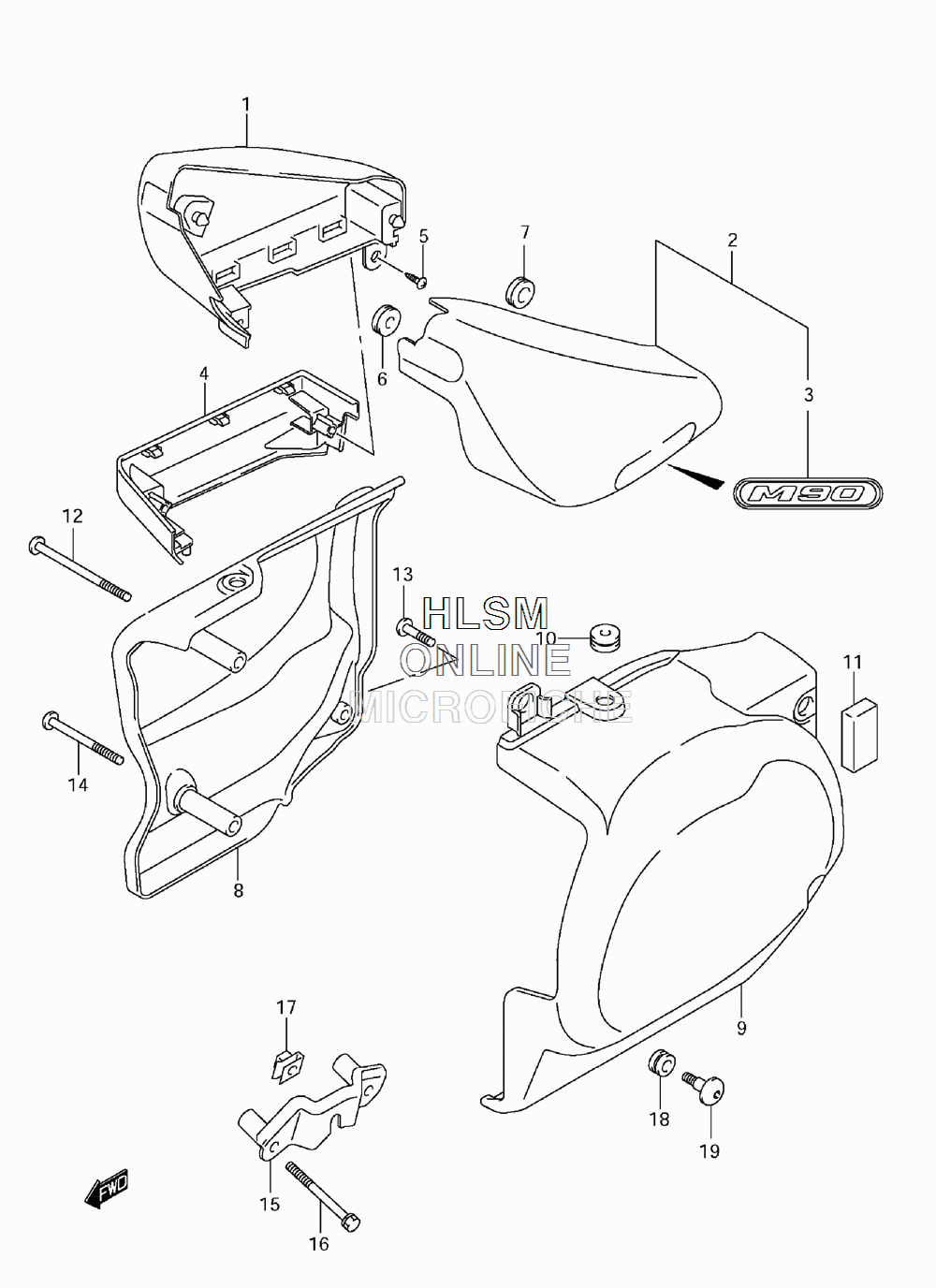

SIDE COVER для Suzuki VZ1500 K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    47110-40H00-YAY COVER, SIDE RIGHT HAND (BLACK) (YAY - PEARL BLACK)
    COVER, SIDE RIGHT HAND (BLACK) (YAY - PEARL BLACK)
  • 1
    47110-40H00-YHL COVER, SIDE RIGHT HAND (RED) (YHL - CANDY RED)
    COVER, SIDE RIGHT HAND (RED) (YHL - CANDY RED)
  • 1
    47110-40H00-YSF COVER, SIDE RIGHT HAND (BLUE) (YSF - BLUE METALLIC)
    COVER, SIDE RIGHT HAND (BLUE) (YSF - BLUE METALLIC)
  • 2
    47210-40H00-YAY COVER, SIDE LEFT HAND (YAY - BLACK) (INCL. 3)
    COVER, SIDE LEFT HAND (YAY - BLACK) (INCL. 3)
  • 2
    47210-40H00-YHL COVER, SIDE LEFT HAND (YHL - CANDY RED) (INCL. 3)
    COVER, SIDE LEFT HAND (YHL - CANDY RED) (INCL. 3)
  • 2
    47210-40H00-YSF COVER, SIDE LEFT HAND (YSF - BLUE METALLIC) (INCL. 3)
    COVER, SIDE LEFT HAND (YSF - BLUE METALLIC) (INCL. 3)
  • 3
    68131-40H00 EMBLEM
    EMBLEM
  • 4
    47121-40H00 COVER, SIDE LOWER RIGHT HAND
    COVER, SIDE LOWER RIGHT HAND
  • 5
    03541-0516A SCREW
    SCREW
  • 6
    09320-08049 CUSHION, FRONT
    CUSHION, FRONT
  • 7
    09320-08018 CUSHION, REAR
    CUSHION, REAR
  • 8
    47130-40H00 COVER, LOWER RIGHT HAND
    COVER, LOWER RIGHT HAND
  • 9
    47231-40H00 COVER, LOWER LEFT HAND
    COVER, LOWER LEFT HAND
  • 10
    09320-06504 CUSHION, LOWER
    CUSHION, LOWER
  • 11
    63411-35B00 CUSHION, LEFT HAND
    CUSHION, LEFT HAND
  • 12
    47139-40H00 SCREW, RIGHT HAND FRONT UPPER
    SCREW, RIGHT HAND FRONT UPPER
  • 13
    09139-06028 SCREW, RIGHT HAND REAR
    SCREW, RIGHT HAND REAR
  • 14
    47138-40H00 SCREW, RIGHT HAND FRONT LOWER
    SCREW, RIGHT HAND FRONT LOWER
  • 15
    47250-40H00 BRACKET, LOWER LEFT HAND
    BRACKET, LOWER LEFT HAND
  • 16
    01547-0650A BOLT, BRACKET
    BOLT, BRACKET
  • 17
    09148-06018 NUT
    NUT
  • 18
    09320-09016 CUSHION, LEFT HAND
    CUSHION, LEFT HAND
  • 19
    09139-06126 SCREW
    SCREW
