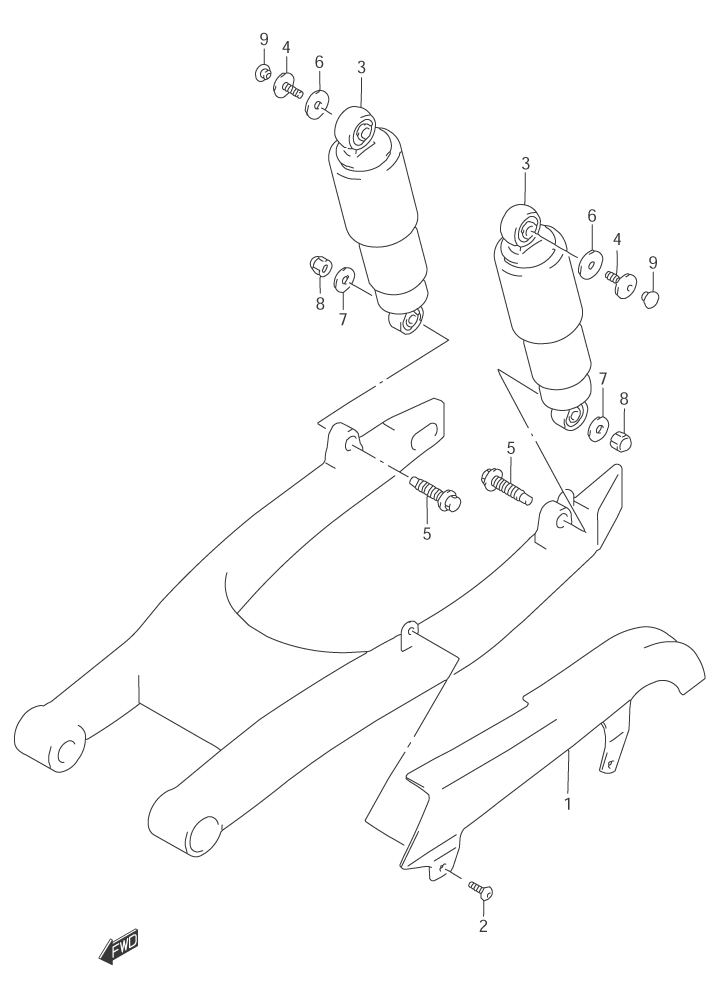

SUSPENSION - SHOCKS REAR W/ CHAIN GUARD для Suzuki VZ800 K4 - 2004 года выпуска
-
№АртикулНазвание
-
161310-48E10 CASE, CHAINCASE, CHAIN
-
202142-06107 SCREWSCREW
-
362100-48E10 ABSORBER ASSY., SHOCK ((REAR)ABSORBER ASSY., SHOCK ((REAR)
-
409106-08094 BOLT (UPPER) (8X20)BOLT (UPPER) (8X20)
-
562313-48E00 BOLT (LOWER) (10X52.1)BOLT (LOWER) (10X52.1)
-
609160-08138 WASHER (UPPER) (8.5X30X2.3)WASHER (UPPER) (8.5X30X2.3)
-
709160-10035 WASHER (LOWER) (10.5X28X2.30)WASHER (LOWER) (10.5X28X2.30)
-
808313-10107 NUTNUT
-
909250-06009 CAPCAP
