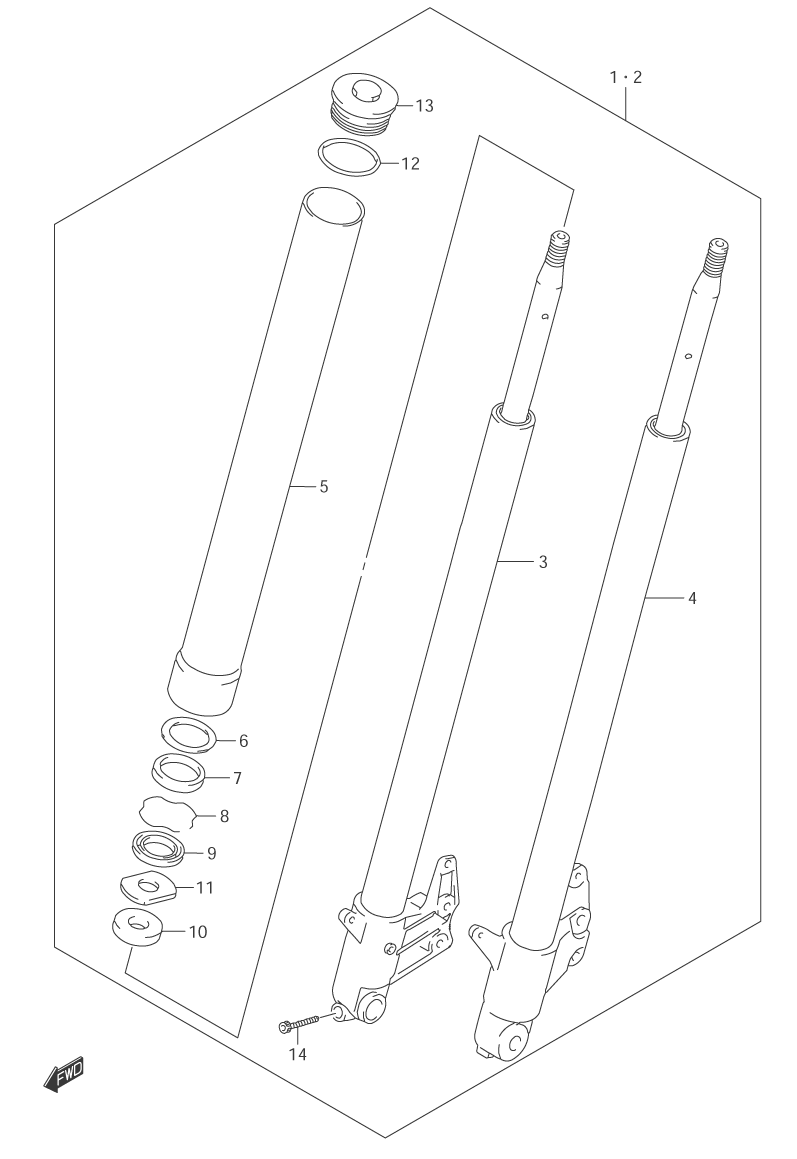

SUSPENSION - FRONT FORK для Suzuki VZ800 K4 - 2004 года выпуска
-
№АртикулНазвание
-
151103-48E10 DAMPER ASSY., FORK (FRONT/RIGHT)DAMPER ASSY., FORK (FRONT/RIGHT)
-
251104-48E10 DAMPER ASSY., FORK (FRONT/LEFT)DAMPER ASSY., FORK (FRONT/LEFT)
-
351110-48E10 ...DAMPER, FORK (FRONT/RIGHT)...DAMPER, FORK (FRONT/RIGHT)
-
451120-48E10 ...DAMPER, FORK (FRONT/LEFT)...DAMPER, FORK (FRONT/LEFT)
-
551130-48E00 ...TUBE (OUTER)...TUBE (OUTER)
-
651158-05A00 ...WASHER...WASHER
-
751153-27C20 ...SEAL, OIL...SEAL, OIL
-
851156-49440 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
951173-46E00 ...SEAL, DUST...SEAL, DUST
-
1051193-48E00 ...RUBBER, CUSHION...RUBBER, CUSHION
-
1151353-48E00 ...NUT...NUT
-
1251117-48E00 ...O-RING...O-RING
-
1351351-48E00 ...CAP...CAP
-
1451381-48E10 ...BOLT...BOLT
