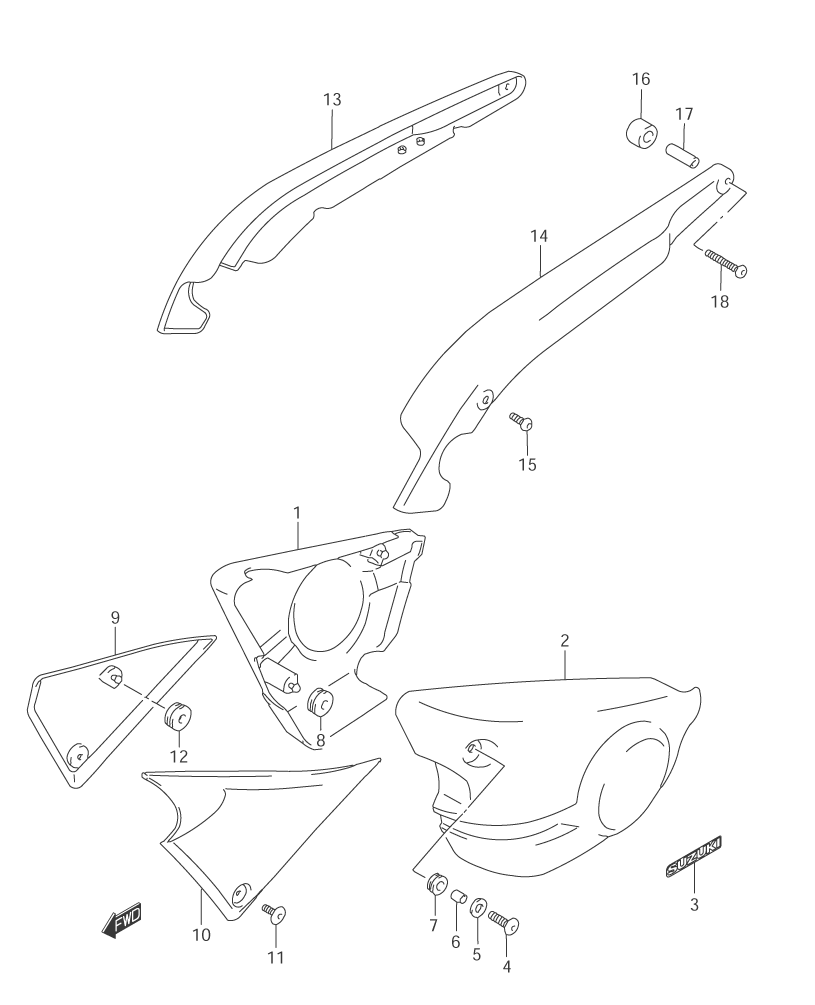

SIDE COVER для Suzuki VZ800 K4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47110-48E30-YAY COVER, FRAME (RIGHT) (YAY - BLACK) (EXCEPT CALIF.)
    COVER, FRAME (RIGHT) (YAY - BLACK) (EXCEPT CALIF.)
  • 1-2
    47110-48E30-YBB COVER, FRAME (RIGHT) (YBB - BLUE) (EXCEPT CALIF.)
    COVER, FRAME (RIGHT) (YBB - BLUE) (EXCEPT CALIF.)
  • 1-3
    47110-48E40-YAY COVER, FRAME (RIGHT) (YAY- BLACK) (CALIF. ONLY)
    COVER, FRAME (RIGHT) (YAY- BLACK) (CALIF. ONLY)
  • 1-4
    47110-48E40-YBB COVER, FRAME (RIGHT) (YBB - BLUE) (CALIF. ONLY)
    COVER, FRAME (RIGHT) (YBB - BLUE) (CALIF. ONLY)
  • 2-1
    47210-48E30-YAY COVER, FRAME (LEFT) (YAY- BLACK)
    COVER, FRAME (LEFT) (YAY- BLACK)
  • 2-2
    47210-48E30-YBB COVER, FRAME (LEFT) (YBB - BLUE)
    COVER, FRAME (LEFT) (YBB - BLUE)
  • 3-1
    68171-26F00-ACV ...EMBLEM (ACV - SILVER/BLACK) (FOR YAY - BLACK)
    ...EMBLEM (ACV - SILVER/BLACK) (FOR YAY - BLACK)
  • 3-2
    68171-26F00-ALN ...EMBLEM (ALN - SILVER/BLUE) (FOR YBB - BLUE)
    ...EMBLEM (ALN - SILVER/BLUE) (FOR YBB - BLUE)
  • 4
    09139-06030 SCREW (6X16)
    SCREW (6X16)
  • 5
    09160-06028 WASHER (6.5X18X1)
    WASHER (6.5X18X1)
  • 6
    09180-06263 SPACER (6.5X9X9)
    SPACER (6.5X9X9)
  • 7
    09320-09016 CUSHION
    CUSHION
  • 8
    09320-08018 CUSHION
    CUSHION
  • 9
    47511-48E00 COVER, FRAME HEAD (RIGHT)
    COVER, FRAME HEAD (RIGHT)
  • 10
    47521-48E00 COVER, FRAME HEAD (LEFT)
    COVER, FRAME HEAD (LEFT)
  • 11
    09139-06039 SCREW (6X16)
    SCREW (6X16)
  • 12
    09320-08018 CUSHION
    CUSHION
  • 13
    47120-48E00 COVER, FRAME (REAR/RIGHT)
    COVER, FRAME (REAR/RIGHT)
  • 14
    47220-48E00 COVER, FRAM (REAR/LEFT)
    COVER, FRAM (REAR/LEFT)
  • 15
    09106-08140 BOLT, FRONT
    BOLT, FRONT
  • 16
    47129-48E00 CUSHION (REAR)
    CUSHION (REAR)
  • 17
    09180-08197 SPACER
    SPACER
  • 18
    09106-08141 BOLT (REAR)
    BOLT (REAR)
