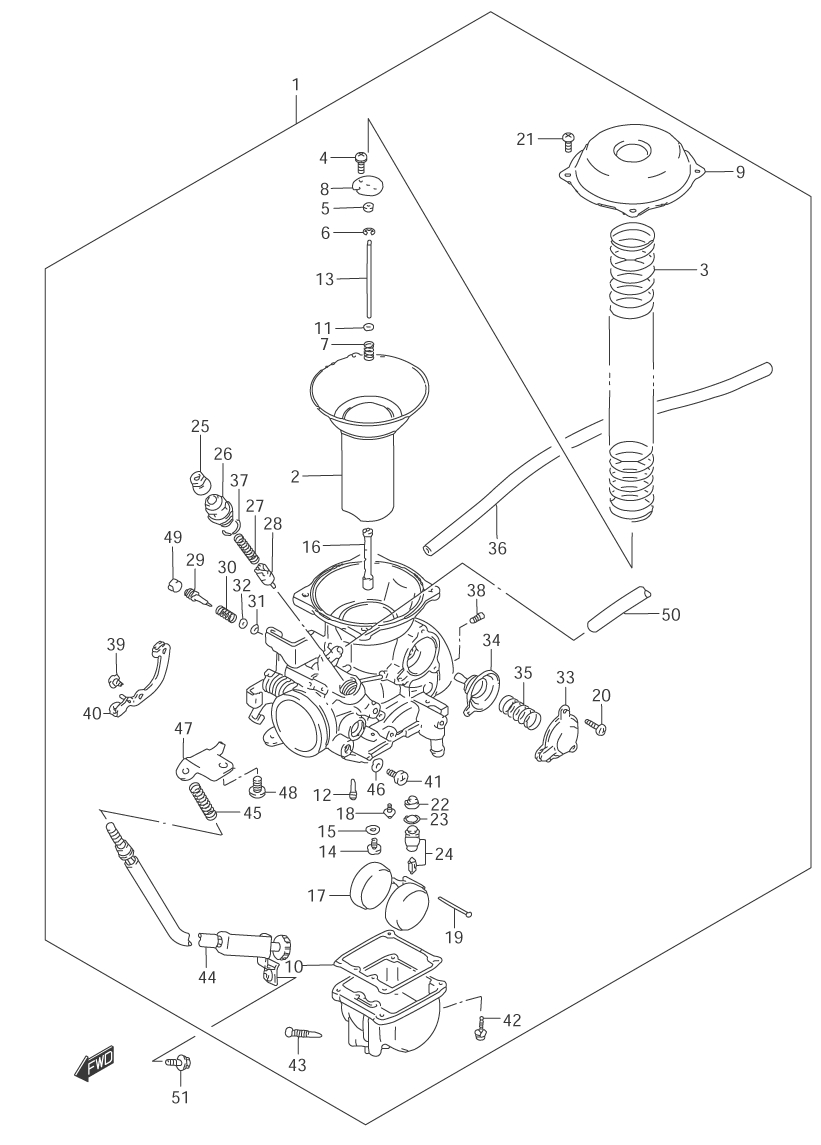

CARBURETOR (REAR) для Suzuki VZ800 K4 - 2004 года выпуска

№

Артикул

Название
1-1

13220-48EF0 CARBURETOR ASSY. (REAR) (EXCEPT CALIF.)

CARBURETOR ASSY. (REAR) (EXCEPT CALIF.)
1-2

13220-48EG0 CARBURETOR ASSY. (REAR) (CALIF. ONLY)

CARBURETOR ASSY. (REAR) (CALIF. ONLY)
2

13500-38A10 ...DIAPHRAGM ASSY.

...DIAPHRAGM ASSY.
3

13503-38B00 ...SPRING

...SPRING
4

02112-33073 ...SCREW

...SCREW
5

13387-47010 ...RING

...RING
6

13394-10010 ...CLIP

...CLIP
7

13388-44030 ...SPRING

...SPRING
8

13389-37400 ...PLATE

...PLATE
9

13502-45CE0 ...COVER

...COVER
10

13251-38A10 ...GASKET

...GASKET
11

13382-44030 ...WASHER

...WASHER
12

09492-42010 ...JET, PILOT (45)

...JET, PILOT (45)
13

13383-48E70 ...NEEDLE, JET (5D83-1)

...NEEDLE, JET (5D83-1)
14

09491-20017 ...JET, MAIN (100)

...JET, MAIN (100)
15

13382-03110 ...WASHER

...WASHER
16

09494-00902 ...JET, NEEDLE (P-3M)

...JET, NEEDLE (P-3M)
17

13252-23010 ...FLOAT

...FLOAT
18

13602-05A10 ...SCREW

...SCREW
19

13254-92311 ...PIN

...PIN
20

13602-19B50 ...SCREW

...SCREW
21

13602-48B00 ...SCREW

...SCREW
22

13376-19F00 ...FILTER

...FILTER
23

13374-35C00 ...O-RING

...O-RING
24

13370-39A00 ...VALVE ASSY., NEEDLE

...VALVE ASSY., NEEDLE
25

13681-04010 ...CAP

...CAP
26

13418-43410 ...HOLDER

...HOLDER
27

13417-22010 ...SPRING

...SPRING
28

13411-01400 ...PLUNGER

...PLUNGER
29

13279-47070 ...SCREW, PILOT (1 5/8)

...SCREW, PILOT (1 5/8)
30

13268-47070 ...SPRING

...SPRING
31

13295-29900 ...O-RING

...O-RING
32

13291-29900 ...WASHER

...WASHER
33

13484-45C00 ...COVER

...COVER
34

13480-05A10 ...DIAPHRAGM ASSY.

...DIAPHRAGM ASSY.
35

13481-45C10 ...SPRING

...SPRING
36

13683-19B80 ...HOSE (5X8X650)

...HOSE (5X8X650)
37

13278-47090 ...O-RING

...O-RING
38

09492-70004 ...JET, AIR (70)

...JET, AIR (70)
39

13602-05A30 ...SCREW

...SCREW
40

13554-38A10 ...LEVER ASSY.

...LEVER ASSY.
41

09125-05122 ...SCREW

...SCREW
42

13601-04148 ...SCREW

...SCREW
43

13247-13A00 ...SCREW, DRAIN

...SCREW, DRAIN
44

13267-48E00 ...ADJUSTER

...ADJUSTER
45

13271-93011 ...SPRING

...SPRING
46

13523-46110 ...GASKET

...GASKET
47

13621-38A10 ...BRACKET

...BRACKET
48

13602-06128 ...SCREW

...SCREW
49

13281-05A00 ...PLUG

...PLUG
50

13683-38B00 ...HOSE ASSY. (5X8X150) (CALIF. ONLY)

...HOSE ASSY. (5X8X150) (CALIF. ONLY)
51

01550-06103 BOLT, IDLE ADJUST SCREW

BOLT, IDLE ADJUST SCREW
