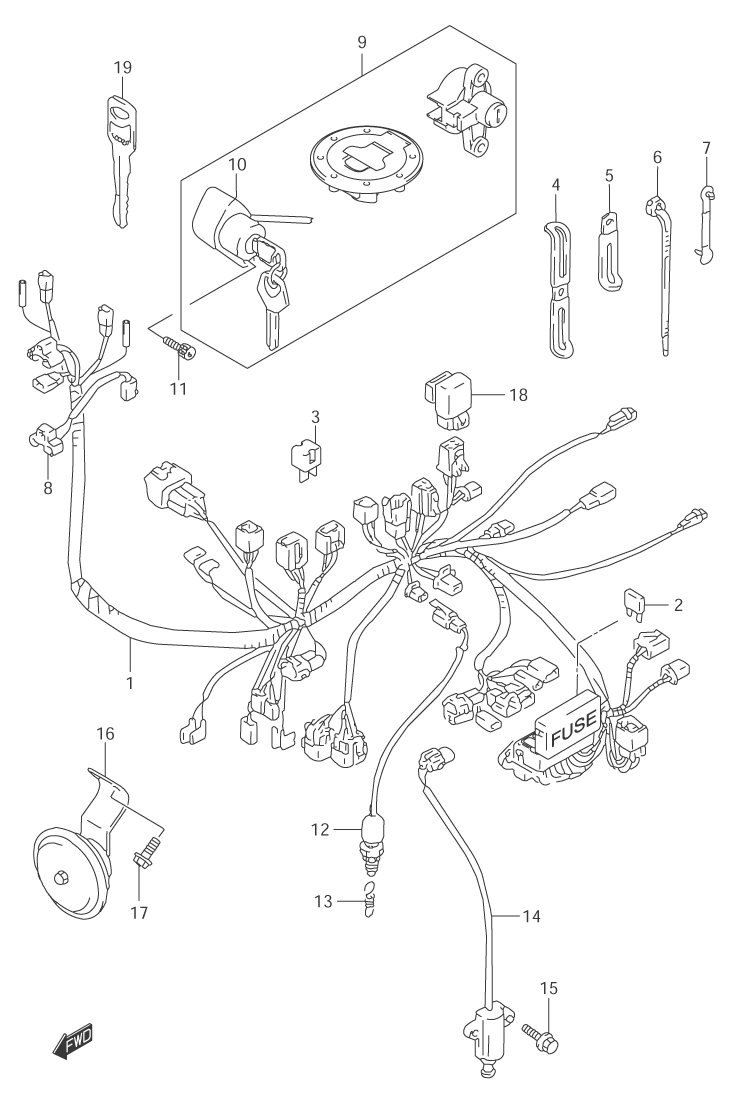

ELECTRICAL - WIRING HARNESS для Suzuki VZ800 K4 - 2004 года выпуска

№

Артикул

Название
1

36610-48EA0 HARNESS, WIRING

HARNESS, WIRING
2

09481-10501 ...FUSE (10A)

...FUSE (10A)
3

32800-16A00 ...DIODE

...DIODE
4

36651-05301 CLAMP, WIRING HARNESS

CLAMP, WIRING HARNESS
5-1

09404-06429 CLAMP (L:45)

CLAMP (L:45)
5-2

09404-06431 CLAMP (L:65)

CLAMP (L:65)
6-1

09407-14403 CLAMP (L:125)

CLAMP (L:125)
6-2

09407-18402 CLAMP (L:165)

CLAMP (L:165)
7

09407-03401 CLAMP

CLAMP
8

36853-30500 LEAD WIRE, HEADLAMP

LEAD WIRE, HEADLAMP
9-1

37000-48830 LOCK SET (EXCEPT CALIF.)

LOCK SET (EXCEPT CALIF.)
9-2

37000-48840 LOCK SET (CALIF. ONLY)

LOCK SET (CALIF. ONLY)
10

37110-10F00 ...SWITCH ASSY., IGNITION

...SWITCH ASSY., IGNITION
11

09106-06078 BOLT

BOLT
12

37740-31D00 SWITCH ASSY., STOP LAMP

SWITCH ASSY., STOP LAMP
13

09443-06046 SPRING

SPRING
14

37840-12X50 SWITCH ASSY., SIDE STAND WARNING

SWITCH ASSY., SIDE STAND WARNING
15

01550-06163 BOLT

BOLT
16

38500-48E00 HORN ASSY.

HORN ASSY.
17

01550-06123 BOLT

BOLT
18

38740-24X50 RELAY ASSY., SIDE STAND WARNING

RELAY ASSY., SIDE STAND WARNING
19

37146-48E00 KEY, BLANK (OPT)

KEY, BLANK (OPT)
