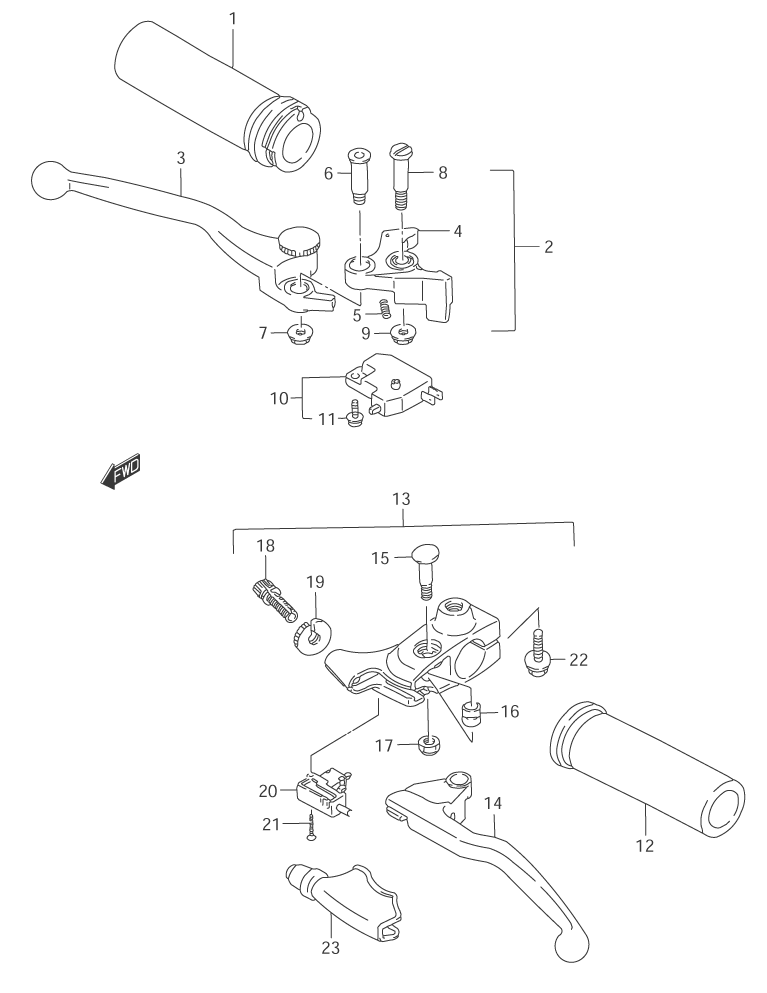

HANDLEBAR - LEVERS W/ GRIPS для Suzuki VZ800 K4 - 2004 года выпуска`
-
№АртикулНазвание
-
157110-26D00 GRIP, THROTTLEGRIP, THROTTLE
-
257300-32C10 LEVER ASSY., BRAKELEVER ASSY., BRAKE
-
357420-32C00 ...LEVER, BRAKE...LEVER, BRAKE
-
457430-32C10 ...KNOCKER...KNOCKER
-
557438-32C00 ......SPRING......SPRING
-
657437-32C01 ...BOLT, LEVER...BOLT, LEVER
-
708319-31063 ...NUT...NUT
-
857431-48E00 ...BOLT, KNOCKER...BOLT, KNOCKER
-
908316-10067 ...NUT...NUT
-
1057460-17C11 SWITCH ASSY., STOPSWITCH ASSY., STOP
-
1157465-17C00 ...SCREW...SCREW
-
1257210-26D00 GRIP, (LEFT)GRIP, (LEFT)
-
1357500-24B01 LEVER ASSY., CLUTCHLEVER ASSY., CLUTCH
-
1457620-24B01 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1557531-24B00 ...BOLT, CLUTCH LEVER...BOLT, CLUTCH LEVER
-
1657623-24B00 ...SPACER, CLUTCH LEVER...SPACER, CLUTCH LEVER
-
1708319-21068 ...NUT...NUT
-
1857441-45C00 ...ADJUSTER, WIRE...ADJUSTER, WIRE
-
1957442-45C00 ...NUT, LOCK...NUT, LOCK
-
2057560-05A00 ...SWITCH, CLUTCH...SWITCH, CLUTCH
-
2102112-03205 ...SCREW...SCREW
-
2207130-06207 ...BOLT...BOLT
-
2357661-48E00 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
