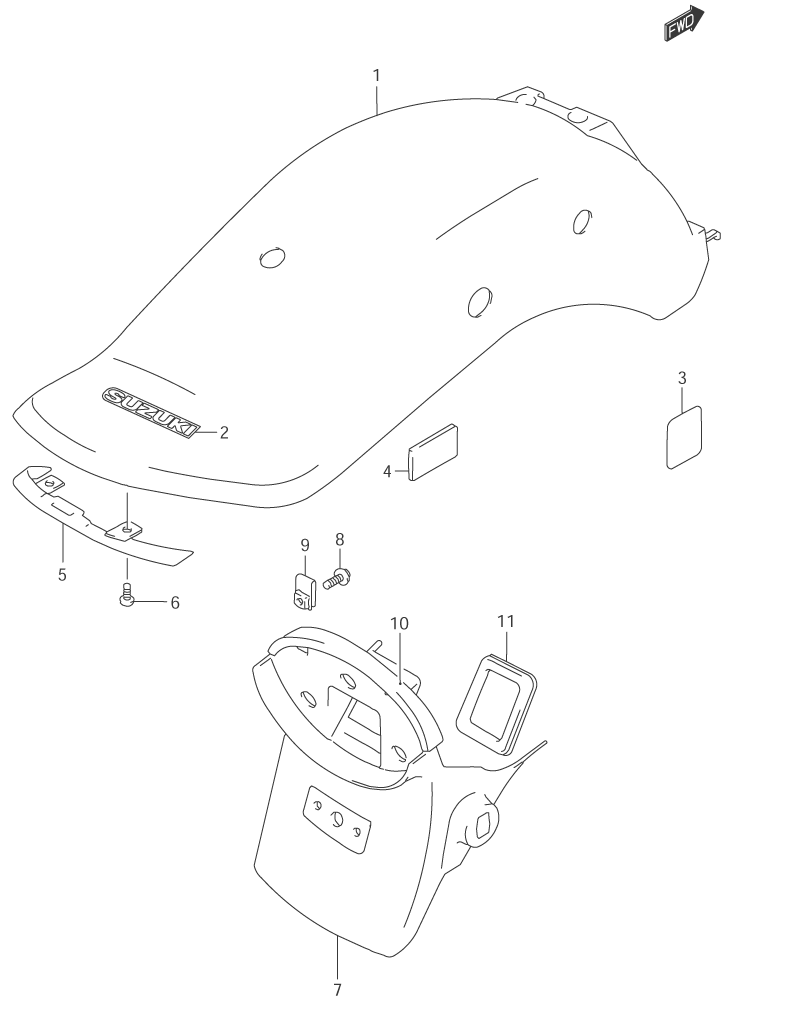

FENDER - REAR для Suzuki VZ800 K4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1-1
    63110-48EB0-YAY FENDER (REAR) (YAY - BLACK)
    FENDER (REAR) (YAY - BLACK)
  • 1-2
    63110-48EB0-YBB FENDER (REAR) (YBB - BLUE)
    FENDER (REAR) (YBB - BLUE)
  • 2-1
    68171-26F00-ACV ...EMBLEM (ACV - SILVER/BLACK) (FOR YAY - BLACK)
    ...EMBLEM (ACV - SILVER/BLACK) (FOR YAY - BLACK)
  • 2-2
    68171-26F00-ALN ...EMBLEM (ALN - SILVER/BLUE) (FOR YBB - BLUE)
    ...EMBLEM (ALN - SILVER/BLUE) (FOR YBB - BLUE)
  • 3
    61544-94500 ...PAD, FENDER (REAR)
    ...PAD, FENDER (REAR)
  • 4
    09320-13015 CUSHION
    CUSHION
  • 5
    63112-48E00 COVER, FENDER (REAR)
    COVER, FENDER (REAR)
  • 6
    03541-05123 SCREW
    SCREW
  • 7
    63311-48E00 EXTENSION, REAR FENDER
    EXTENSION, REAR FENDER
  • 8
    02162-06163 SCREW
    SCREW
  • 9
    47153-19C01 NUT, FENDER EXTENSION (REAR)
    NUT, FENDER EXTENSION (REAR)
  • 10
    63312-48E00 CUSHION, FENDER EXTENSIO (REAR)
    CUSHION, FENDER EXTENSIO (REAR)
  • 11
    63191-48E00 CAP, FENDER EXTENSION (REAR)
    CAP, FENDER EXTENSION (REAR)
