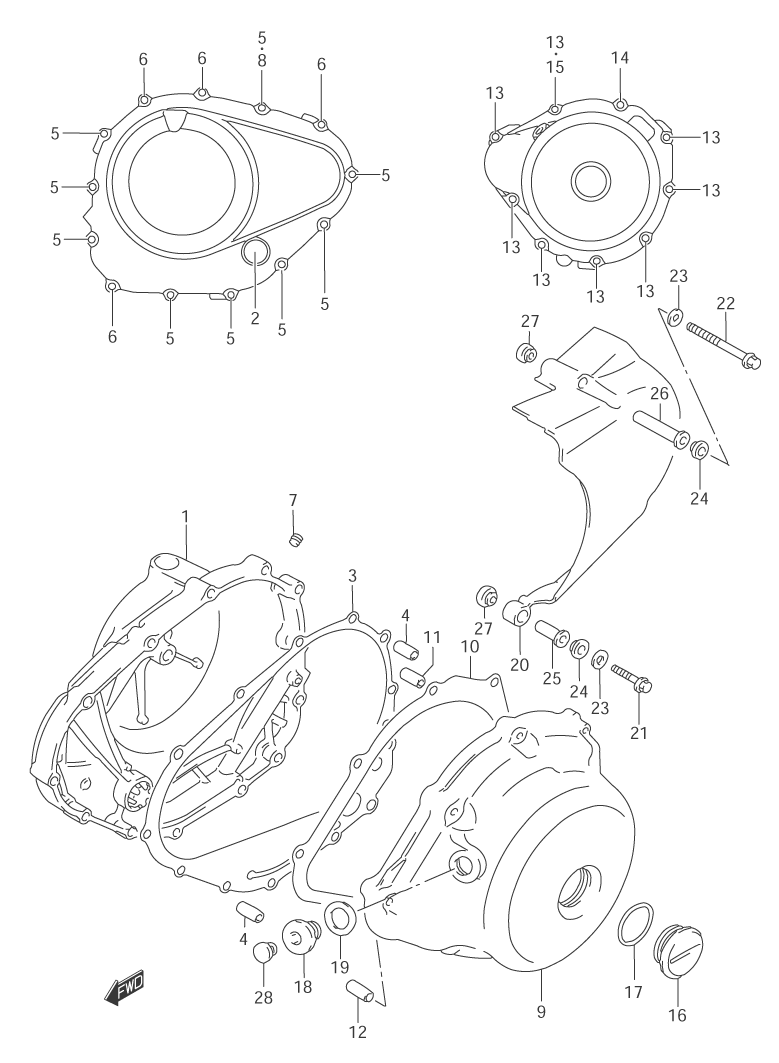

CRANKCASE COVER для Suzuki VZ800 K4 - 2004 года выпуска
-
№АртикулНазвание
-
111340-48E50 COVER, CLUTCHCOVER, CLUTCH
-
211971-33210 ...LENS, OIL LEVEL CHECK...LENS, OIL LEVEL CHECK
-
311482-48E01 GASKETGASKET
-
404211-09149 PINPIN
-
501547-06307 BOLTBOLT
-
601547-06357 BOLTBOLT
-
709246-05006 PLUGPLUG
-
809168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
911351-48E00 COVER, MAGNETOCOVER, MAGNETO
-
1011483-48E01 GASKETGASKET
-
1109206-11007 PINPIN
-
1204211-09149 PINPIN
-
1301547-06357 BOLTBOLT
-
1401547-06407 BOLTBOLT
-
1509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1609259-36008 PLUGPLUG
-
1709280-33004 O-RING (D:3.1,ID:32.7)O-RING (D:3.1,ID:32.7)
-
1809248-14005 PLUG, T.D.CPLUG, T.D.C
-
1909168-14002 GASKETGASKET
-
2011361-48E01 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2101547-06307 BOLTBOLT
-
2201547-06607 BOLTBOLT
-
2309160-06125 WASHERWASHER
-
2409161-09006 CUSHIONCUSHION
-
2509180-06320 SPACERSPACER
-
2609180-06321 SPACERSPACER
-
2709161-09005 WASHERWASHER
-
2809250-08014 CAPCAP
