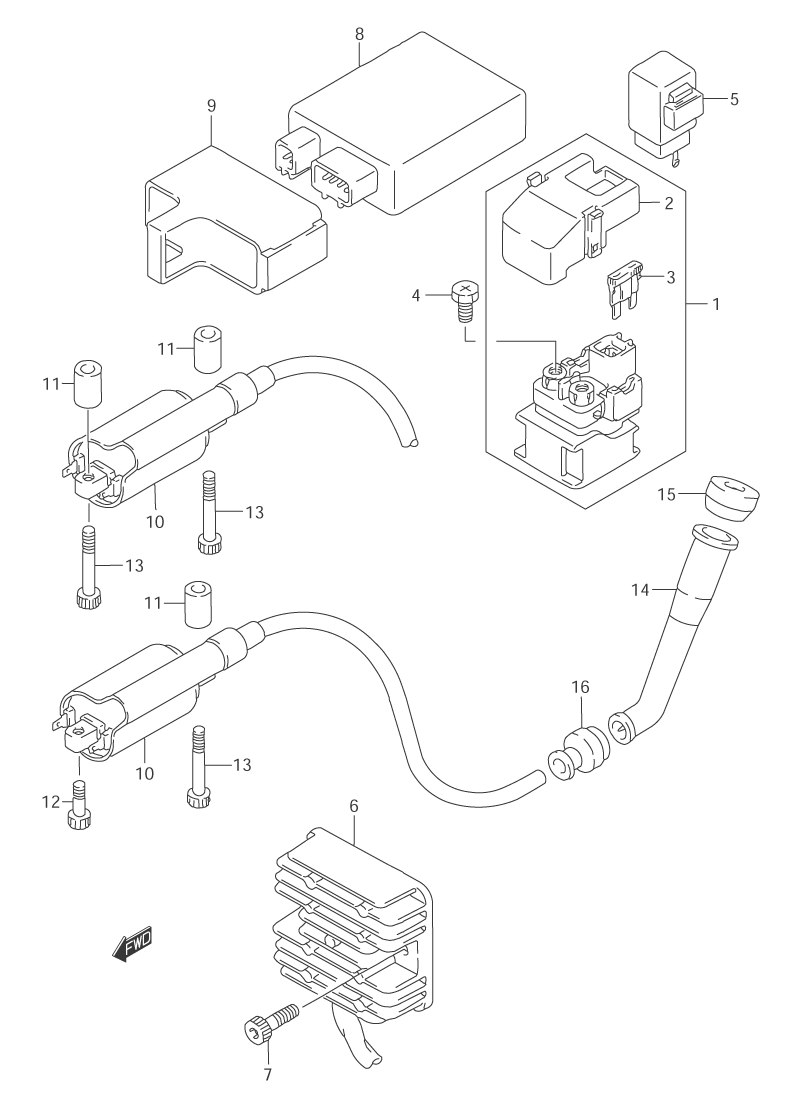

ELECTRICAL - COILS /RELAY/RECTIFIER/CONTROL UNIT для Suzuki VZ800 K4 - 2004 года выпуска
-
№АртикулНазвание
-
131800-21E20 RELAY ASSY., STARTING MOTORRELAY ASSY., STARTING MOTOR
-
231861-47E00 ...COVER, RELAY ASSY....COVER, RELAY ASSY.
-
309481-30101 ...FUSE (30A)...FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
531890-48E00 CONTROL UNIT, STARTING MOTORCONTROL UNIT, STARTING MOTOR
-
632800-45C01 RECTIFIER ASSY.RECTIFIER ASSY.
-
707130-06163 BOLTBOLT
-
832900-48E30 IGNITER ASSY.IGNITER ASSY.
-
932980-40C01 CUSHION, IGNITERCUSHION, IGNITER
-
1033410-48E00 COIL ASSY., IGNITIONCOIL ASSY., IGNITION
-
1109180-06198 SPACER (6.2X12X16)SPACER (6.2X12X16)
-
1207130-05163 BOLTBOLT
-
1307130-05353 BOLTBOLT
-
1433510-11410 CAP, SPARK PLUGCAP, SPARK PLUG
-
1533541-47D00 SEAL, SPARK PLUG CAPSEAL, SPARK PLUG CAP
-
1633542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
