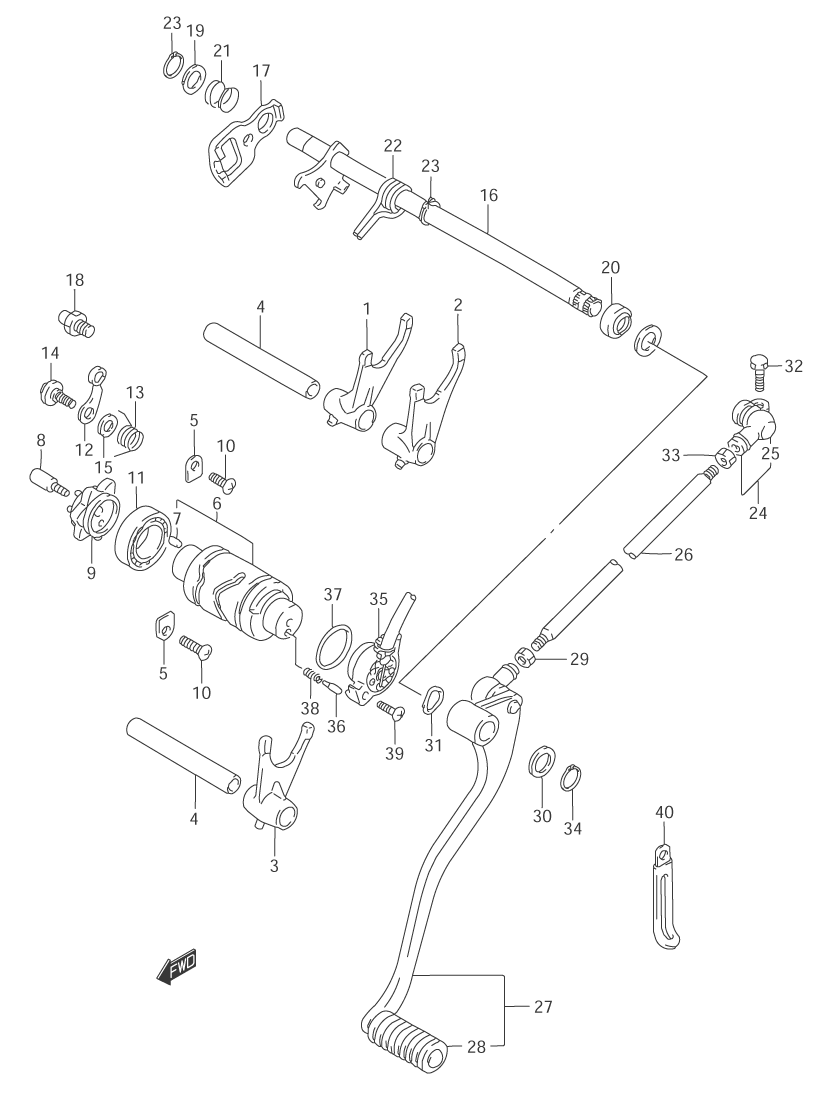

GEAR SHIFTING для Suzuki VZ800 K4 - 2004 года выпуска`
-
№АртикулНазвание
-
125211-44B00 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
225221-44B00 FORK, GEAR SHIFT NO.2FORK, GEAR SHIFT NO.2
-
325231-48E00 FORK, GEAR SHIFT NO.3FORK, GEAR SHIFT NO.3
-
425411-44B00 SHAFT, GEAR SHIFT FORK NO.1SHAFT, GEAR SHIFT FORK NO.1
-
524741-21A00 RETAINER, SHIFT CAM BEARINGRETAINER, SHIFT CAM BEARING
-
625310-48E00 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
704221-04089 ...KNOCK PIN...KNOCK PIN
-
825312-12C00 PINPIN
-
925381-13E10 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
1002112-06123 SCREWSCREW
-
1108113-69050 BEARINGBEARING
-
1225350-26D01 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
1325355-13E10 SPRING, SHIFT CAM STOPPERSPRING, SHIFT CAM STOPPER
-
1409111-06041 BOLT (6X14.3)BOLT (6X14.3)
-
1508211-06141 WASHERWASHER
-
1625510-48E01 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
1725512-13E11 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
1825671-01011 STOPPER, RETURN SPRINGSTOPPER, RETURN SPRING
-
1909181-14167 WASHER (14X22X1.0)WASHER (14X22X1.0)
-
2009283-14006 OIL SEAL (14X22X6)OIL SEAL (14X22X6)
-
2109440-17009 SPRINGSPRING
-
2209444-20001 SPRINGSPRING
-
2308331-31146 CIRCLIPCIRCLIP
-
2425520-09301 ARM, GEAR SHIFT SHAFTARM, GEAR SHIFT SHAFT
-
2525526-47000 ...COVER, DUST...COVER, DUST
-
2625525-48E00 ROD, GEAR SHIFT LINKROD, GEAR SHIFT LINK
-
2725600-48E00 LEVER ASSY., GEAR SHIFTLEVER ASSY., GEAR SHIFT
-
2825652-20C00 ...RUBBER, GEAR SHIFT PEDAL...RUBBER, GEAR SHIFT PEDAL
-
2909140-06025 NUTNUT
-
3009160-12011 WASHER (12.5X20X1)WASHER (12.5X20X1)
-
3109164-12019 WAVE WASHERWAVE WASHER
-
3201547-06203 BOLTBOLT
-
3308310-00067 NUTNUT
-
3408331-31126 CIRCLIPCIRCLIP
-
3537720-48E20 BASE ASSY., TERMINALBASE ASSY., TERMINAL
-
3609209-05011 CONTACTCONTACT
-
3709280-26007 O-RING (D:2.4,ID:25)O-RING (D:2.4,ID:25)
-
3809440-04010 SPRINGSPRING
-
3902112-05163 SCREWSCREW
-
4009404-08205 CLAMP (L:62)CLAMP (L:62)
