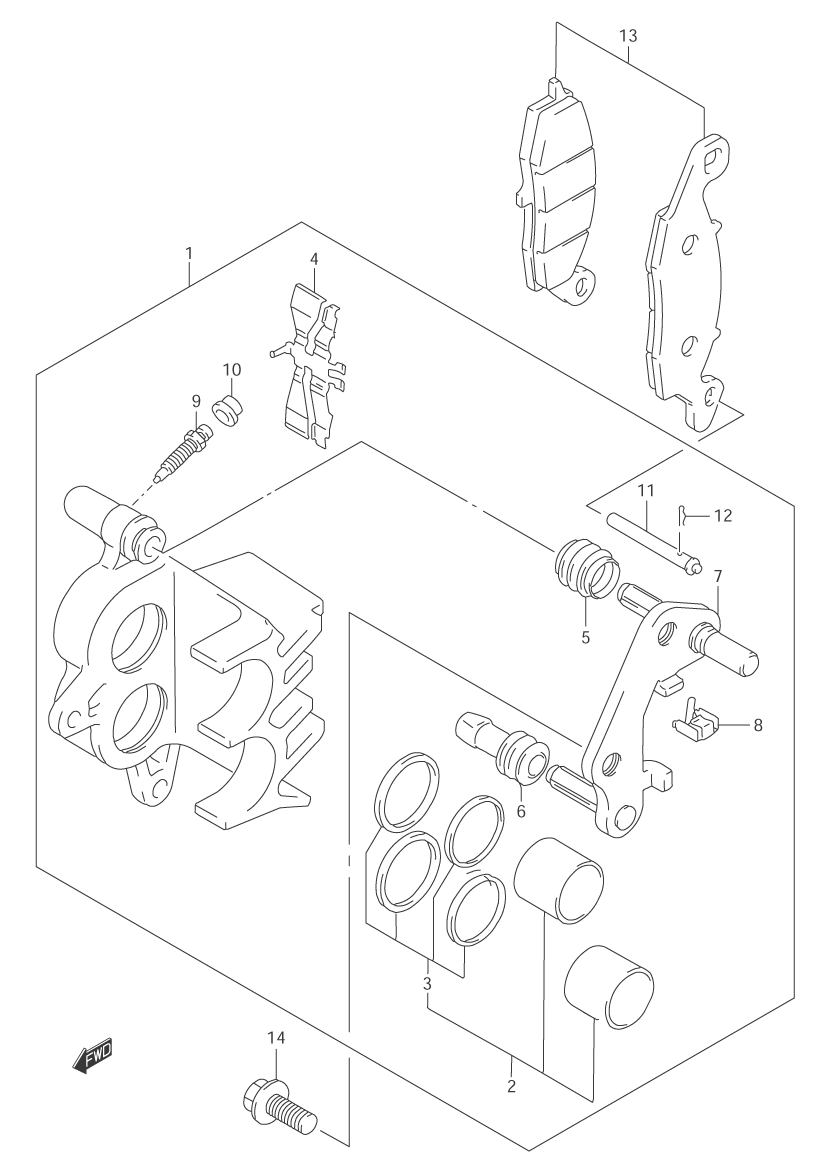

BRAKE - FRONT CALIPER для Suzuki VZ800 K4 - 2004 года выпуска`
-
№АртикулНазвание
-
159100-33D90-999 CALIPER ASSY. (FRONT/RIGHT)CALIPER ASSY. (FRONT/RIGHT)
-
259301-20820 ...PISTON SET...PISTON SET
-
359300-33841 ......SEAL SET, PISTON......SEAL SET, PISTON
-
459115-33D00 ...SPRING...SPRING
-
559112-44B00 ...BOOT...BOOT
-
659313-36500 ...INSULATOR...INSULATOR
-
759150-33D01 ...CARRIER, CALIPER (REAR)...CARRIER, CALIPER (REAR)
-
859116-33D00 ...GUIDE...GUIDE
-
959121-18410 ...BLEEDER...BLEEDER
-
1055156-66310 ...CAP...CAP
-
1159141-44B01 ...PIN...PIN
-
1269142-45000 ...CLIP...CLIP
-
1359100-33870 PAD SETPAD SET
-
1401550-10257 BOLTBOLT
