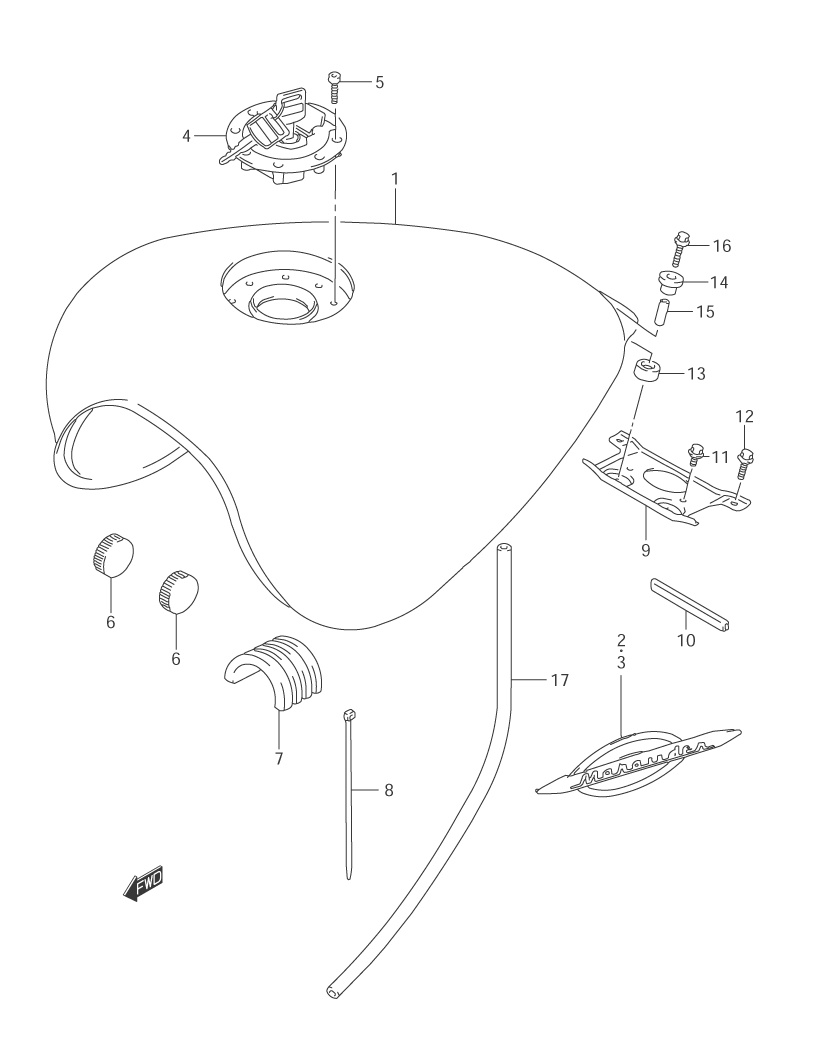

FUEL TANK для Suzuki VZ800 K4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1-1
    44100-48EQ0-YAY TANK ASSY., FUEL (YAY - BLACK) (EXCEPT CALIF.)
    TANK ASSY., FUEL (YAY - BLACK) (EXCEPT CALIF.)
  • 1-2
    44100-48EQ0-YBB TANK ASSY., FUEL (YBB - BLUE) (EXCEPT CALIF.)
    TANK ASSY., FUEL (YBB - BLUE) (EXCEPT CALIF.)
  • 1-3
    44100-48ER0-YAY TANK ASSY., FUEL (YAY - LACK) (CALIF. ONLY)
    TANK ASSY., FUEL (YAY - LACK) (CALIF. ONLY)
  • 1-4
    44100-48ER0-YBB TANK ASSY., FUEL (YBB - BLUE) (CALIF. ONLY)
    TANK ASSY., FUEL (YBB - BLUE) (CALIF. ONLY)
  • 2
    68111-48E20 EMBLEM, FUEL TANK (RIGHT)
    EMBLEM, FUEL TANK (RIGHT)
  • 3
    68121-48E20 EMBLEM, FUEL TANK (LEFT)
    EMBLEM, FUEL TANK (LEFT)
  • 4-1
    44200-33850 CAP SET, FUEL TANK (EXCEPT CALIF.)
    CAP SET, FUEL TANK (EXCEPT CALIF.)
  • 4-2
    44200-33860 CAP SET, FUEL TANK (CALIF. ONLY)
    CAP SET, FUEL TANK (CALIF. ONLY)
  • 5
    09106-05017 BOLT (L:20)
    BOLT (L:20)
  • 6
    09329-10007 CUSHION
    CUSHION
  • 7
    44541-13E00 CUSHION, FUEL TANK (UPPER)
    CUSHION, FUEL TANK (UPPER)
  • 8
    09407-25402 CLAMP (L:248)
    CLAMP (L:248)
  • 9
    44550-48E01 BRACKET, FUEL TANK (REAR)
    BRACKET, FUEL TANK (REAR)
  • 10
    47512-47D00 PROTECTOR
    PROTECTOR
  • 11
    01550-06103 BOLT (FRONT)
    BOLT (FRONT)
  • 12
    01550-06163 BOLT (REAR)
    BOLT (REAR)
  • 13
    44542-48E00 CUSHION, FUEL TANK (REAR/LOWER)
    CUSHION, FUEL TANK (REAR/LOWER)
  • 14
    09320-10022 CUSHION (UPPER)
    CUSHION (UPPER)
  • 15
    09180-06067 SPACER (6.5X10.5X22.5)
    SPACER (6.5X10.5X22.5)
  • 16
    01550-06353 BOLT
    BOLT
  • 17
    44423-48E01 HOSE, DRAIN
    HOSE, DRAIN
