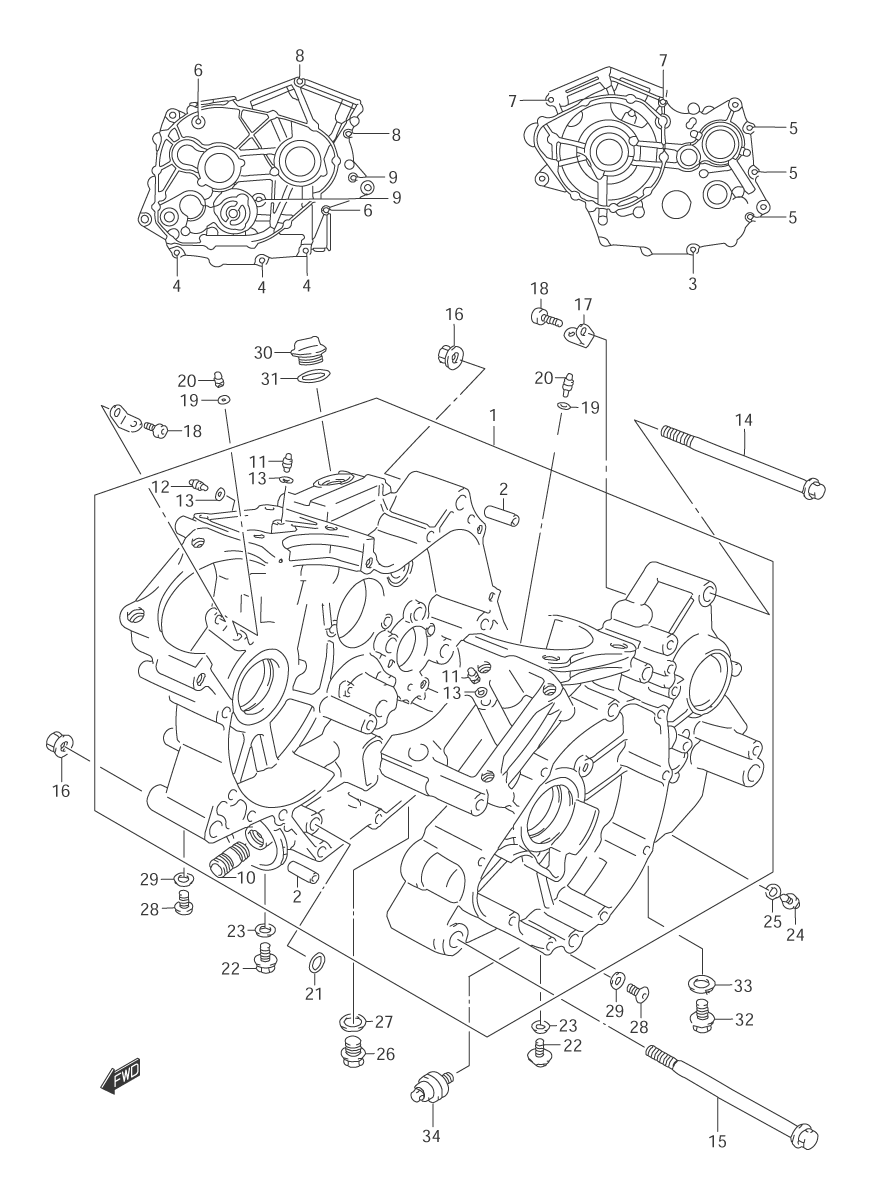

CRANKCASE для Suzuki VZ800 K4 - 2004 года выпуска

№

Артикул

Название
1

11300-48841 CRANKCASE SET

CRANKCASE SET
2

11319-33E00 ...PIN

...PIN
3

01550-08457 ...BOLT

...BOLT
4

01550-08557 ...BOLT

...BOLT
5

01550-08607 ...BOLT

...BOLT
6

01550-08703 ...BOLT

...BOLT
7

09103-08165 ...BOLT (8X105)

...BOLT (8X105)
8

09103-08167 ...BOLT (8X160)

...BOLT (8X160)
9

09103-08216 ...BOLT (8X80)

...BOLT (8X80)
10

16591-06B00 ...UNION, OIL FILTER STAND

...UNION, OIL FILTER STAND
11

09493-36004 ...JET, OIL GALLERY

...JET, OIL GALLERY
12

09493-80005 ...JET, OIL GALLERY MISSION

...JET, OIL GALLERY MISSION
13

09280-04004 ...O-RING (D:1.2,ID:4)

...O-RING (D:1.2,ID:4)
14

09103-10241 BOLT (10X143)

BOLT (10X143)
15

09103-10146 BOLT (10X155)

BOLT (10X155)
16

09159-10058 NUT

NUT
17

16438-48E00 PLATE, PISTON COOLING JET

PLATE, PISTON COOLING JET
18

09106-06075 BOLT (6X12)

BOLT (6X12)
19

09280-04004 O-RING (D:1.2,ID:4)

O-RING (D:1.2,ID:4)
20

09493-80009 JET, PISTON COOLING

JET, PISTON COOLING
21

09280-12009 O-RING (D:1.9,ID:12.6)

O-RING (D:1.9,ID:12.6)
22

01550-08123 BOLT

BOLT
23

09168-08029 GASKET

GASKET
24

01550-06103 BOLT

BOLT
25

09168-06023 GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)
26

09248-16012 PLUG

PLUG
27

09168-16002 GASKET

GASKET
28

01550-08123 BOLT

BOLT
29

09168-08029 GASKET

GASKET
30

09259-20008 PLUG

PLUG
31

09280-17003 O-RING (D:3.1,ID:16.8)

O-RING (D:3.1,ID:16.8)
32

09247-12106 PLUG, OIL DRAIN

PLUG, OIL DRAIN
33

09168-12002 GASKET

GASKET
34

37820-33D10 SWITCH ASSY., OIL PRESSURE

SWITCH ASSY., OIL PRESSURE
