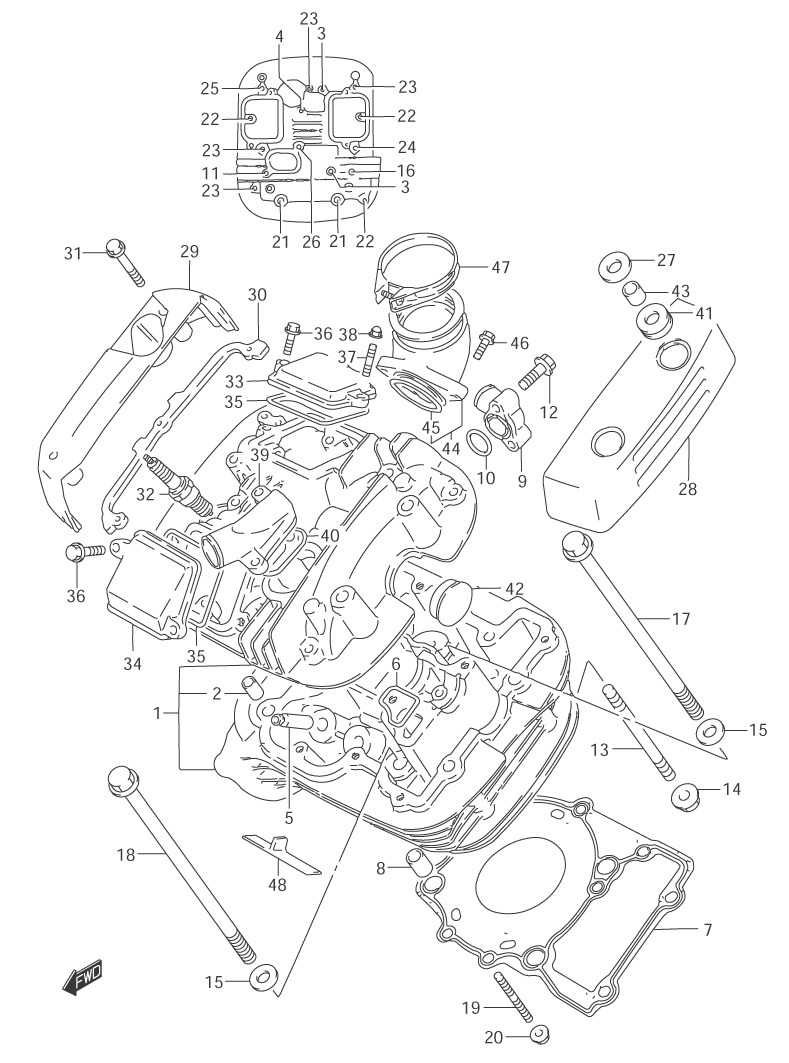

CYLINDER HEAD (FRONT) для Suzuki VZ800 K4 - 2004 года выпуска
-
№АртикулНазвание
-
111101-48E60 HEAD ASSY., CYLINDER (FRONT)HEAD ASSY., CYLINDER (FRONT)
-
209206-11004 ...PIN...PIN
-
309103-06101 ...BOLT (6X50)...BOLT (6X50)
-
409103-06102 ...BOLT (6X55)...BOLT (6X55)
-
511115-38A71 GUIDE, VALVE (0S 0.3) (OPT)GUIDE, VALVE (0S 0.3) (OPT)
-
611123-38A00 GASKETGASKET
-
711141-45C00 GASKETGASKET
-
804211-13189 PINPIN
-
911169-45C10 UNION, CYLINDER HEAD WATERUNION, CYLINDER HEAD WATER
-
1009280-18004 O-RING (D:2.4,ID:17.8)O-RING (D:2.4,ID:17.8)
-
1101550-06203 BOLT (GREEN)BOLT (GREEN)
-
1201547-06253 BOLTBOLT
-
1309108-08144 STUD BOLT (8X40)STUD BOLT (8X40)
-
1408316-10083 NUT (GREEN)NUT (GREEN)
-
1509160-10039 WASHERWASHER
-
1609103-08040 BOLT (8X140)BOLT (8X140)
-
1709103-10133 BOLT (10X155)BOLT (10X155)
-
1809103-10134 BOLT (10X165)BOLT (10X165)
-
1901421-06408 STUD BOLTSTUD BOLT
-
2008316-10063 NUT (GREEN)NUT (GREEN)
-
2109103-08180 BOLT (8X245)BOLT (8X245)
-
2201550-06253 BOLTBOLT
-
2301550-06303 BOLT (GREEN)BOLT (GREEN)
-
2407120-06303 BOLT (GREEN)BOLT (GREEN)
-
2501550-06403 BOLT (GREEN)BOLT (GREEN)
-
2609103-06102 BOLT (6X55)BOLT (6X55)
-
2709160-08130 WASHERWASHER
-
2811171-48E00 CAP, HEAD COVER (F-L/R-R)CAP, HEAD COVER (F-L/R-R)
-
2911172-48E00 CAP, HEAD COVER (F-R)CAP, HEAD COVER (F-R)
-
3011272-38A00 CUSHIONCUSHION
-
3109103-06193 BOLTBOLT
-
32-109482-00334 SPARK PLUG (NGK,DPR8EA-9)SPARK PLUG (NGK,DPR8EA-9)
-
32-209482-00335 SPARK PLUG (DENSO,X24EPR-U9)SPARK PLUG (DENSO,X24EPR-U9)
-
32-309482-00354 SPARK PLUG (NGK,DPR7EA-9) (OPT)SPARK PLUG (NGK,DPR7EA-9) (OPT)
-
32-409482-00355 SPARK PLUG (DENSO,X22EPR-U9) (OPT)SPARK PLUG (DENSO,X22EPR-U9) (OPT)
-
32-509482-00330 SPARK PLUG (NGK,DPR9EA-9) (OPT)SPARK PLUG (NGK,DPR9EA-9) (OPT)
-
32-609482-00331 SPARK PLUG (DENSO,X27EPR-U9) (OPT)SPARK PLUG (DENSO,X27EPR-U9) (OPT)
-
3311175-38A11 CAP, INSPECTION INTAKECAP, INSPECTION INTAKE
-
3411176-38A11 CAP, INSPECTION EXHAUSTCAP, INSPECTION EXHAUST
-
3511177-38A00 GASKETGASKET
-
3601547-06203 BOLTBOLT
-
3709108-06102 STUD BOLT (6X16)STUD BOLT (6X16)
-
3808313-20063 NUT (GREEN)NUT (GREEN)
-
3911181-45C10 UNION, WATER OUTLETUNION, WATER OUTLET
-
4011182-38A00 GASKETGASKET
-
4109320-13015 CUSHIONCUSHION
-
4209241-30004 PLUGPLUG
-
4309301-08007 BUSHBUSH
-
4413101-45C00 PIPE ASSY., INTAKE FRONTPIPE ASSY., INTAKE FRONT
-
4509280-40010 ...O-RING (D:2.4,ID:39.7)...O-RING (D:2.4,ID:39.7)
-
4602122-06203 SCREWSCREW
-
4709402-52501 CLAMPCLAMP
-
4811179-38A00 PLATE, HEAD COVER (REAR)PLATE, HEAD COVER (REAR)
