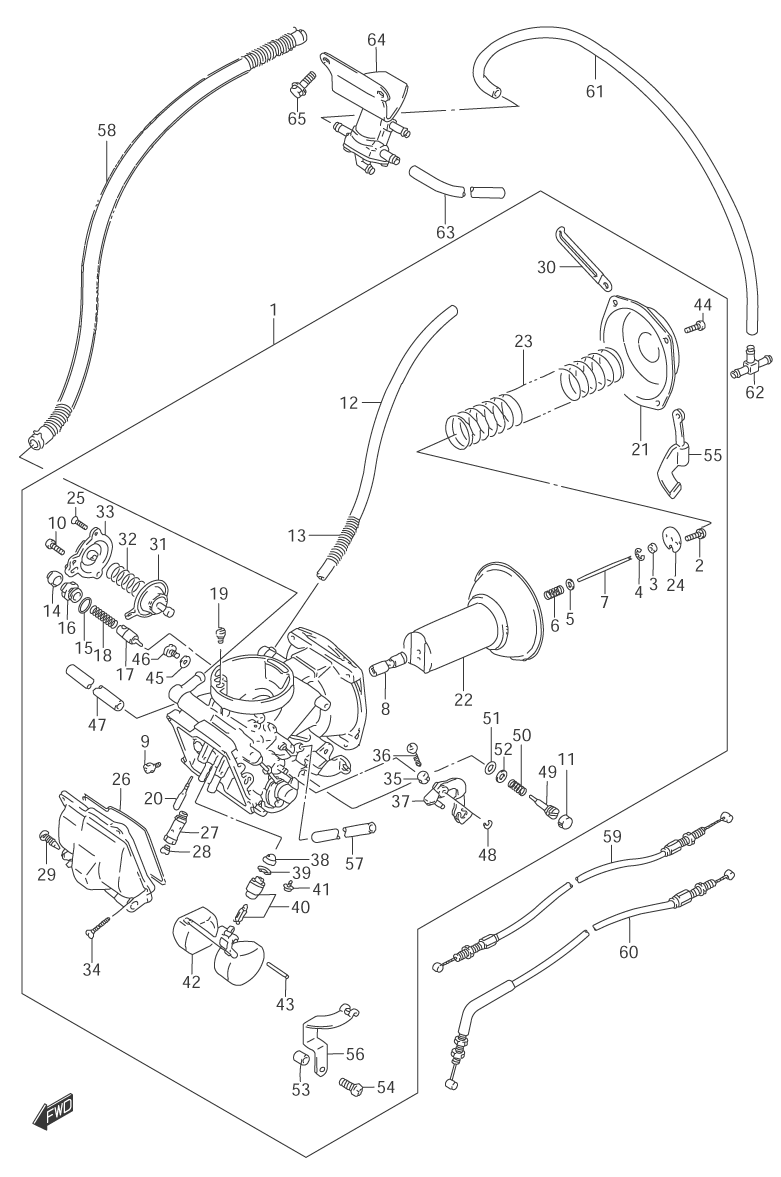

CARBURETOR (FRONT) для Suzuki VZ800 K4 - 2004 года выпуска

№

Артикул

Название
1-1

13210-48EF0 CARBURETOR ASSY. (FRONT) (EXCEPT CALIF.)

CARBURETOR ASSY. (FRONT) (EXCEPT CALIF.)
1-2

13210-48EG0 CARBURETOR ASSY. (FRONT) (CALIF. ONLY)

CARBURETOR ASSY. (FRONT) (CALIF. ONLY)
2

02112-33073 ...SCREW

...SCREW
3

13387-47010 ...RING

...RING
4

13394-10010 ...CLIP

...CLIP
5

13382-03110 ...WASHER

...WASHER
6

13388-44030 ...SPRING

...SPRING
7

13383-48E80 ...NEEDLE, JET (5C43-1)

...NEEDLE, JET (5C43-1)
8

09494-00901 ...JET, NEEDLE (P-4M)

...JET, NEEDLE (P-4M)
9

13605-38B00 ...SCREW

...SCREW
10

02112-04107 ...SCREW

...SCREW
11

13281-05A00 ...PLUG

...PLUG
12-1

13683-19B80 ...HOSE (5X8X650) (EXCEPT CALIF.)

...HOSE (5X8X650) (EXCEPT CALIF.)
12-2

13683-19B80 ...HOSE (5X8X650) (CALIF. ONLY)

...HOSE (5X8X650) (CALIF. ONLY)
13

13689-38A00 ...SPRING

...SPRING
14

13681-04010 ...CAP

...CAP
15

13278-47090 ...O-RING

...O-RING
16

13418-38A00 ...HOLDER

...HOLDER
17

13411-01400 ...PLUNGER

...PLUNGER
18

13417-08210 ...SPRING

...SPRING
19

09492-65005 ...JET, AIR (65)

...JET, AIR (65)
20

09492-40021 ...JET, PILOT (40)

...JET, PILOT (40)
21

13502-38A00 ...COVER

...COVER
22

13500-05A10 ...DIAPHRAGM ASSY.

...DIAPHRAGM ASSY.
23

13503-38B00 ...SPRING

...SPRING
24

13389-37400 ...PLATE

...PLATE
25

02122-04103 ...SCREW

...SCREW
26

13251-38A00 ...O-RING

...O-RING
27

13385-05A11 ...HOLDER

...HOLDER
28

09491-90011 ...JET, MAIN (90)

...JET, MAIN (90)
29

13247-13A00 ...SCREW, DRAIN

...SCREW, DRAIN
30

09404-06432 ...CLAMP (L:65)

...CLAMP (L:65)
31

13480-05A10 ...DIAPHRAGM ASSY.

...DIAPHRAGM ASSY.
32

13481-45C10 ...SPRING

...SPRING
33

13484-38A00 ...COVER

...COVER
34

13602-48B10 ...SCREW

...SCREW
35

08310-00047 ...NUT

...NUT
36

02112-04307 ...SCREW

...SCREW
37

13554-45C20 ...LEVER ASSY.

...LEVER ASSY.
38

13376-19F00 ...FILTER

...FILTER
39

13374-35C00 ...O-RING

...O-RING
40

13370-39A00 ...VALVE ASSY., NEEDLE

...VALVE ASSY., NEEDLE
41

13602-05A10 ...SCREW

...SCREW
42

13250-38B00 ...FLOAT

...FLOAT
43

13254-20010 ...PIN

...PIN
44

02112-05127 ...SCREW

...SCREW
45

13523-46110 ...GASKET

...GASKET
46

09125-05122 ...SCREW

...SCREW
47

13683-19B80 ...HOSE (5X8X650)

...HOSE (5X8X650)
48

13415-38300 ...E-RING

...E-RING
49

13279-47070 ...SCREW, PILOT (1 3/4)

...SCREW, PILOT (1 3/4)
50

13268-47070 ...SPRING

...SPRING
51

13295-29900 ...O-RING

...O-RING
52

13291-29900 ...WASHER

...WASHER
53

13331-33E00 ...RING

...RING
54

13602-48E00 ...SCREW

...SCREW
55

13627-48E00 ...BRACKET, NO.1

...BRACKET, NO.1
56

13627-48E10 ...BRACKET, NO.2

...BRACKET, NO.2
57

13683-48E10 ...HOSE ASSY. (5X8X125)

...HOSE ASSY. (5X8X125)
58-1

13683-48E00 HOSE ASSY. (EXCEPT CALIF.)

HOSE ASSY. (EXCEPT CALIF.)
58-2

13683-48E10 HOSE ASSY. (5X8X125) (CALIF. ONLY)

HOSE ASSY. (5X8X125) (CALIF. ONLY)
59

13641-48E00 CABLE, ID SYNCRO

CABLE, ID SYNCRO
60

13642-48E00 CABLE, THROTTLE RETURN (FRONT)

CABLE, THROTTLE RETURN (FRONT)
61

13684-02F10 HOSE (5.3X10.5X450) (CALIF. ONLY)

HOSE (5.3X10.5X450) (CALIF. ONLY)
62

13685-48B00 NIPPLE (CALIF. ONLY)

NIPPLE (CALIF. ONLY)
63

09355-50105-600 HOSE, AIR VENT (5X10X600) (CALIF. ONLY)

HOSE, AIR VENT (5X10X600) (CALIF. ONLY)
64

13590-48E00 VALVE, AIR VENT (CALIF. ONLY)

VALVE, AIR VENT (CALIF. ONLY)
65

01550-06123 BOLT (CALIF. ONLY)

BOLT (CALIF. ONLY)
