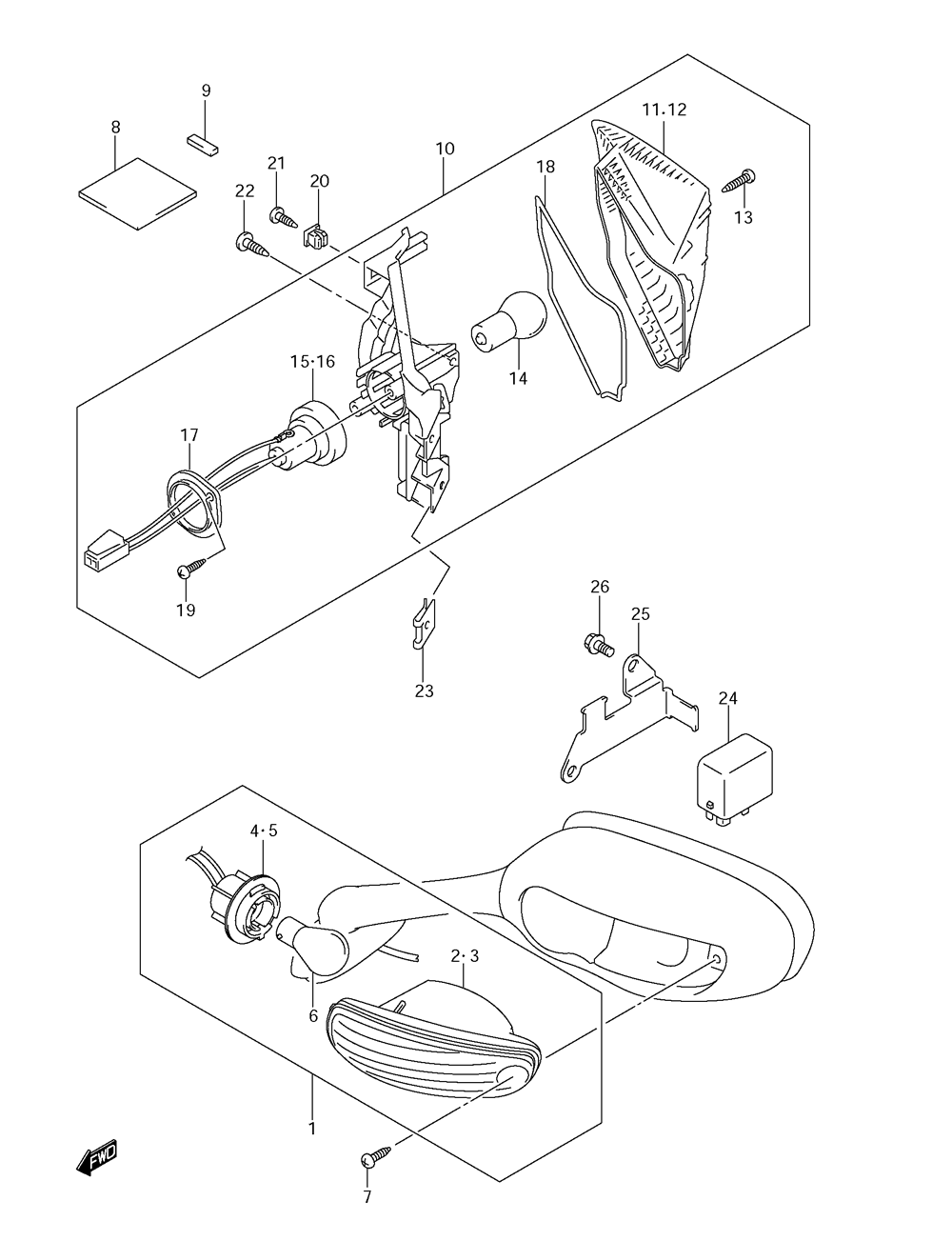

TURN SIGNAL ASSY. для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
135601-41G00 LAMP ASSEMBLY, FRONT TURNSIGNAL, RIGHTLAMP ASSEMBLY, FRONT TURNSIGNAL, RIGHT
-
135602-41G00 LAMP ASSEMBLY, FRONT TURNSIGNAL, LEFTLAMP ASSEMBLY, FRONT TURNSIGNAL, LEFT
-
235610-41G00 ...LAMP UNIT, RIGHT...LAMP UNIT, RIGHT
-
335630-41G00 ...LAMP UNIT, LEFT...LAMP UNIT, LEFT
-
435618-10G50 ...SOCKET, RIGHT...SOCKET, RIGHT
-
535638-10G50 ...SOCKET, LEFT...SOCKET, LEFT
-
609471-12186 ...BULB (12V21W)...BULB (12V21W)
-
709132-04032 SCREW, FR TURNSIGNAL (4X20)SCREW, FR TURNSIGNAL (4X20)
-
833652-21G10 CUSHION, FR TURN (40X20X5)CUSHION, FR TURN (40X20X5)
-
994443-21H00 TAPE, FR TURN 5X20X0.4TAPE, FR TURN 5X20X0.4
-
1035603-47H00 LAMP ASSEMBLY, REAR TURNSIGNAL, RIGHTLAMP ASSEMBLY, REAR TURNSIGNAL, RIGHT
-
1035604-47H00 LAMP ASSEMBLY, REAR TURNSIGNAL, LEFTLAMP ASSEMBLY, REAR TURNSIGNAL, LEFT
-
1135652-47H00 ...LENS, RIGHT...LENS, RIGHT
-
1235672-47H00 ...LENS, LEFT...LENS, LEFT
-
1303211-0416A ...SCREW...SCREW
-
1409471-12186 ...BULB (12V21W)...BULB (12V21W)
-
1535658-41G00 ...SOCKET & CORD, RIGHT...SOCKET & CORD, RIGHT
-
1635678-41G00 ...SOCKET & CORD, LEFT...SOCKET & CORD, LEFT
-
1735716-07A30 ...PLATE...PLATE
-
1835653-47H00 ...GASKET...GASKET
-
1903211-0412A ...SCREW...SCREW
-
2009148-04021 NUT, REAR TURNSIGNALNUT, REAR TURNSIGNAL
-
2103541-0412A SCREW, REAR TURNSIGNALSCREW, REAR TURNSIGNAL
-
2203541-0512A SCREW, REAR TURNSIGNALSCREW, REAR TURNSIGNAL
-
2309148-05038 NUT, REAR TURNSIGNALNUT, REAR TURNSIGNAL
-
2438610-03F00 RELAY ASSEMBLY, TURNSIGNAL LAMPRELAY ASSEMBLY, TURNSIGNAL LAMP
-
2538621-37H00 BRACKET, RIGHTELAYBRACKET, RIGHTELAY
-
2601550-0612A BOLTBOLT
