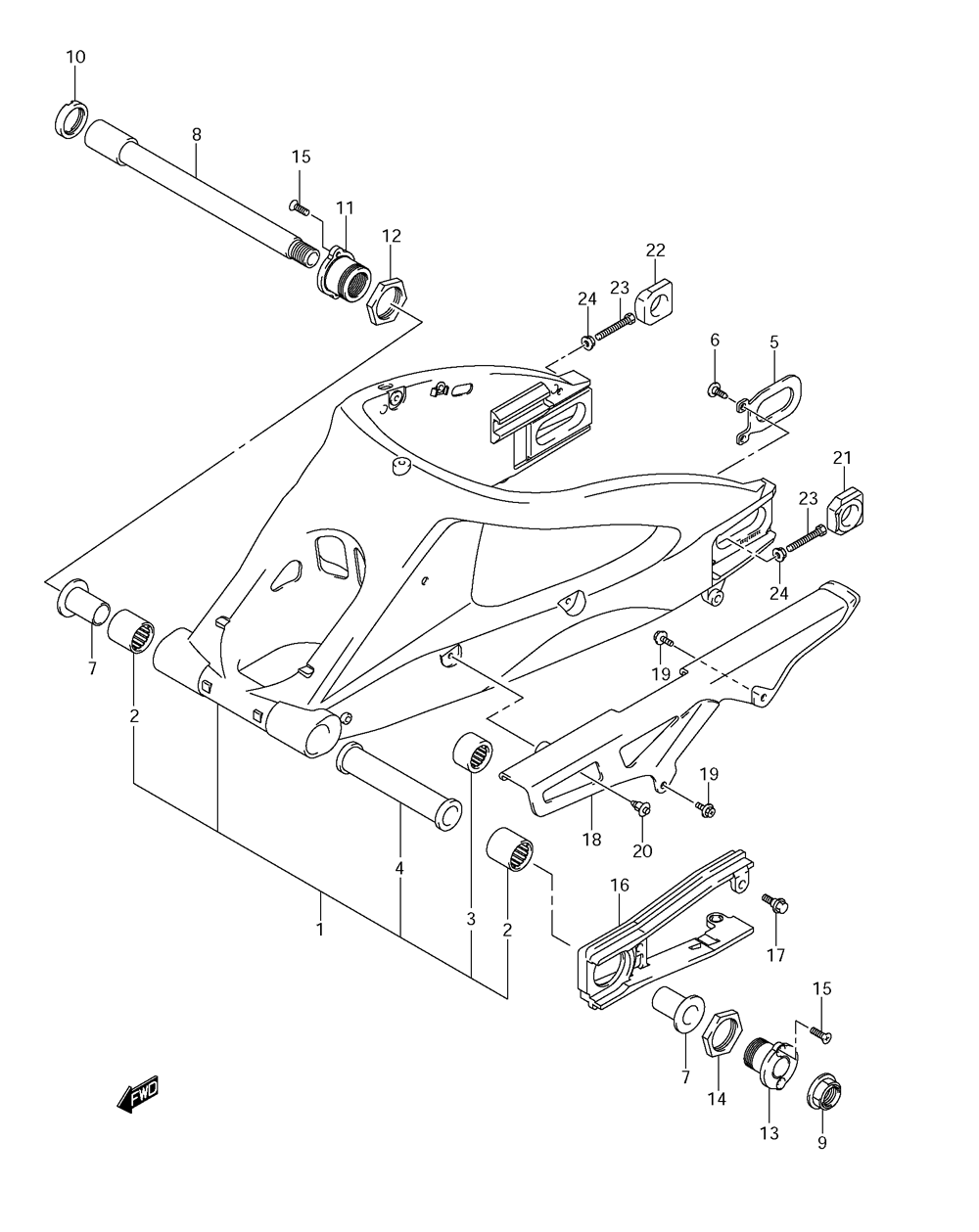

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
161000-47H00-YAP SWINGING ARM ASSEMBLY, REAR (BLACK)SWINGING ARM ASSEMBLY, REAR (BLACK)
-
209263-27013 ...BEARING, PIVOT...BEARING, PIVOT
-
309263-20070 ...BEARING, CUSHION ROD...BEARING, CUSHION ROD
-
461281-41G00 ...SPACER, CENTER...SPACER, CENTER
-
561124-41G00 PLATE, BRACKETPLATE, BRACKET
-
609125-06060 SCREWSCREW
-
761251-41G00 SPACER, BEARINGSPACER, BEARING
-
861211-47H00 SHAFT, PIVOTSHAFT, PIVOT
-
909159-20006 NUTNUT
-
1061214-42E00 NUT, PIVOTNUT, PIVOT
-
1161212-47H00 BOSS, RR SWGARM PIVOT, RIGHTBOSS, RR SWGARM PIVOT, RIGHT
-
1261213-41G00 NUT, RR SWGARM PIVOT BOSS, RIGHTNUT, RR SWGARM PIVOT BOSS, RIGHT
-
1361214-47H00 BOSS, RR SWGARM PIVOT, LEFTBOSS, RR SWGARM PIVOT, LEFT
-
1461215-41G00 NUT, RR SWGARM PIVOT BOSS, LEFTNUT, RR SWGARM PIVOT BOSS, LEFT
-
1502122-0512B SCREW, BOSSSCREW, BOSS
-
1661273-47H00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1709111-06072 SCREWSCREW
-
1861311-21H00 CASE, CHAIN NO.1CASE, CHAIN NO.1
-
1963161-43E00 BOLT, CHAIN CASEBOLT, CHAIN CASE
-
2009409-08308-5ES CLIPCLIP
-
2161445-40F20 ADJUSTER, CHAIN RIGHT HANDADJUSTER, CHAIN RIGHT HAND
-
2261446-40F10 ADJUSTER, CHAIN LEFT HANDADJUSTER, CHAIN LEFT HAND
-
2309100-08305 BOLT (8X50)BOLT (8X50)
-
2408316-1008A NUTNUT
