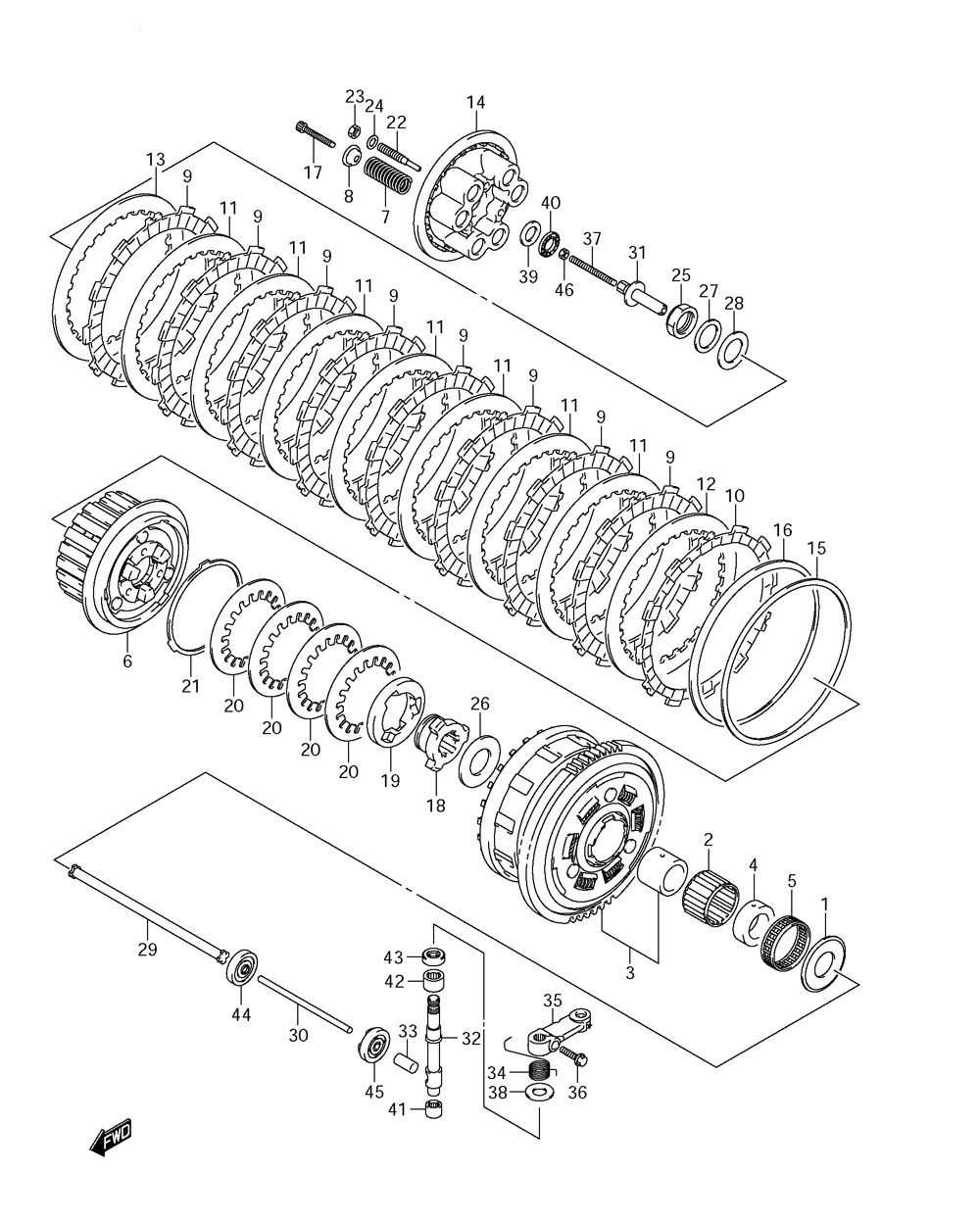

CLUTCH для Suzuki GSX-R1000 K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    09160-25073 WASHER, PRI DRIVEN GEAR THR 25X54X2.4
    WASHER, PRI DRIVEN GEAR THR 25X54X2.4
  • 2
    09263-35015 BEARING, PRIMARY DRIVEN GEAR 35X40X26.8
    BEARING, PRIMARY DRIVEN GEAR 35X40X26.8
  • 3
    21200-47810 GEAR ASSEMBLY, PRIMARY DRIVEN
    GEAR ASSEMBLY, PRIMARY DRIVEN
  • 4
    21253-01H10 SPACER, OIL PUMP DRIVE
    SPACER, OIL PUMP DRIVE
  • 5
    09263-35045 BEARING, OIL PUMP DRIVE 35X40X12
    BEARING, OIL PUMP DRIVE 35X40X12
  • 6
    21410-41G40 HUB, CLUTCH SLEEVE
    HUB, CLUTCH SLEEVE
  • 7
    21413-47H00 SPRING, CLUTCH
    SPRING, CLUTCH
  • 8
    21414-29F00 WASHER, CLUTCH SPRING
    WASHER, CLUTCH SPRING
  • 9
    21441-42F20 PLATE, CLUTCH DRIVE NO.1
    PLATE, CLUTCH DRIVE NO.1
  • 10
    21442-42F10 PLATE, CLUTCH DRIVE NO.2
    PLATE, CLUTCH DRIVE NO.2
  • 11
    21451-47H00 PLATE, CLUTCH DRIVEN NO.1
    PLATE, CLUTCH DRIVEN NO.1
  • 12
    21451-47H10 PLATE, CLUTCH DRIVEN NO.2
    PLATE, CLUTCH DRIVEN NO.2
  • 13
    21451-47H20 PLATE, CLUTCH DRIVEN NO.3
    PLATE, CLUTCH DRIVEN NO.3
  • 14
    21462-41G10 DISC, CLUTCH PRESSURE
    DISC, CLUTCH PRESSURE
  • 15
    21471-02F20 SEAT, WAVE WASHER
    SEAT, WAVE WASHER
  • 16
    21472-02F20 WASHER, CLUTCH PLATE WAVE
    WASHER, CLUTCH PLATE WAVE
  • 17
    21482-41G10 BOLT, CLUTCH SPRING
    BOLT, CLUTCH SPRING
  • 18
    21611-41G20 CAM, CLUTCH DRIVE
    CAM, CLUTCH DRIVE
  • 19
    21612-41G20 CAM, CLUTCH DRIVEN
    CAM, CLUTCH DRIVEN
  • 20
    21621-41G00 WASHER, CAM REACTION WAVE
    WASHER, CAM REACTION WAVE
  • 21
    21624-41G20 WASHER, CAM REACTION SEAT
    WASHER, CAM REACTION SEAT
  • 22
    21622-41G10 LIFTER, CLUTCH PRESSURE DISK
    LIFTER, CLUTCH PRESSURE DISK
  • 23
    21623-41G00 NUT, CL PRESS DISC LIFT LOCK
    NUT, CL PRESS DISC LIFT LOCK
  • 24
    09181-08139 WASHER, LIFTER LOCK NUT
    WASHER, LIFTER LOCK NUT
  • 25
    09159-24010 NUT, CLUTCH SLEEVE HUB
    NUT, CLUTCH SLEEVE HUB
  • 26
    09160-25056 WASHER, CLUTCH SLEEVE HUB THR 25X50X2.5
    WASHER, CLUTCH SLEEVE HUB THR 25X50X2.5
  • 27
    09160-25077 WASHER, CLUTCH SLEEVE HUB 25X41X2.5
    WASHER, CLUTCH SLEEVE HUB 25X41X2.5
  • 28
    09164-24008 WASHER, CLUTCH SLEEVE HUB WAVE
    WASHER, CLUTCH SLEEVE HUB WAVE
  • 29
    23110-27A00 ROD, CLUTCH
    ROD, CLUTCH
  • 30
    23111-47H00 ROD, CLUTCH PUSH, L
    ROD, CLUTCH PUSH, L
  • 31
    23121-41G20 PIECE, CLUTCH PUSH
    PIECE, CLUTCH PUSH
  • 32
    23122-41G00 CAMSHAFT, CLUTCH RELEASE
    CAMSHAFT, CLUTCH RELEASE
  • 33
    23123-41G00 CAP, CLUTCH PUSH ROD
    CAP, CLUTCH PUSH ROD
  • 34
    23125-41G00 SPRING, CLUTCH RELEASE RETURN
    SPRING, CLUTCH RELEASE RETURN
  • 35
    23271-41G30 ARM, CLUTCH RELEASE
    ARM, CLUTCH RELEASE
  • 36
    09103-06223 BOLT, CL RELEASE ARM 6X20
    BOLT, CL RELEASE ARM 6X20
  • 37
    09134-06015 SCREW, CLUTCH PUSH ROD 6X73
    SCREW, CLUTCH PUSH ROD 6X73
  • 38
    09160-10020 WASHER, CLUTCH RELEASE 10.5X24X1
    WASHER, CLUTCH RELEASE 10.5X24X1
  • 39
    09160-15045 WASHER, CLUTCH PUSH 15.5X28X1
    WASHER, CLUTCH PUSH 15.5X28X1
  • 40
    09263-15003 BEARING, CLUTCH PUSH 15X28X2
    BEARING, CLUTCH PUSH 15X28X2
  • 41
    09263-10014 BEARING, CLUTCH RELEASE LOW 10X14X10
    BEARING, CLUTCH RELEASE LOW 10X14X10
  • 42
    09263-12027 BEARING, CLUTCH RELEASE UPR 12X18X12
    BEARING, CLUTCH RELEASE UPR 12X18X12
  • 43
    09282-10012 SEAL, CL RELEASE 10X20X6
    SEAL, CL RELEASE 10X20X6
  • 44
    09283-06010 SEAL, CLUTCH PUSH ROD OIL 6X34X10.5
    SEAL, CLUTCH PUSH ROD OIL 6X34X10.5
  • 45
    09285-10004 SEAL, CLUTCH PUSH ROD CAP 10X17X5
    SEAL, CLUTCH PUSH ROD CAP 10X17X5
  • 46
    08310-0006A NUT, CLUTCH RELEASE ADJ
    NUT, CLUTCH RELEASE ADJ
