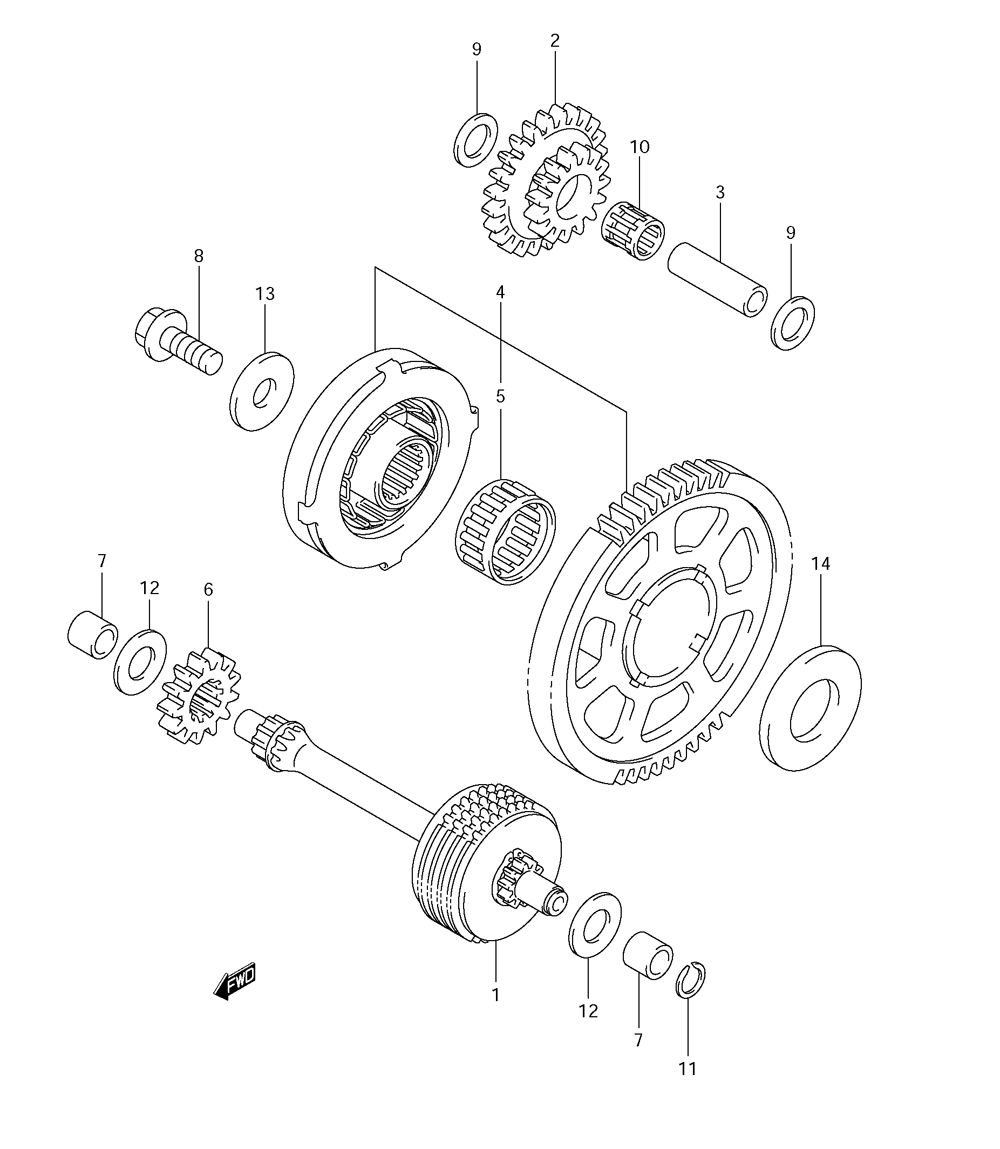

STARTER CLUTCH для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
112600-47H00 LIMITER ASSEMBLY, START IDLELIMITER ASSEMBLY, START IDLE
-
212612-47H00 GEAR, STARTER IDLE NO.2GEAR, STARTER IDLE NO.2
-
312151-09204 PINPIN
-
412600-47840 CLUTCH SET, STARTERCLUTCH SET, STARTER
-
509263-26035 ...BEARING...BEARING
-
612617-47H00 GEAR, LIMITER DRIVENGEAR, LIMITER DRIVEN
-
712618-31G00 BUSHBUSH
-
809103-10189 BOLTBOLT
-
909181-12167 WASHERWASHER
-
1009263-12023 BEARINGBEARING
-
1109380-09003 CIRCLIPCIRCLIP
-
1208211-10221 WASHERWASHER
-
1308211-10285 WASHERWASHER
-
1408211-20403 WASHERWASHER
